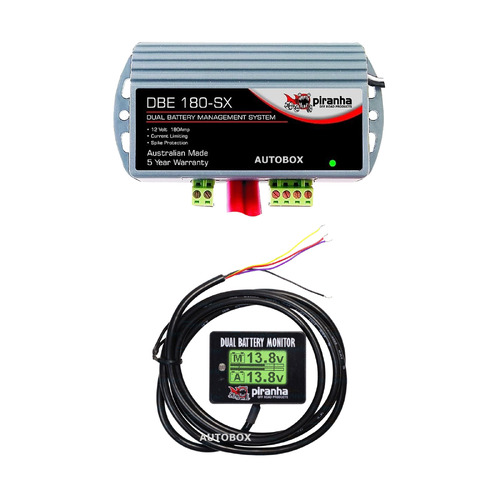

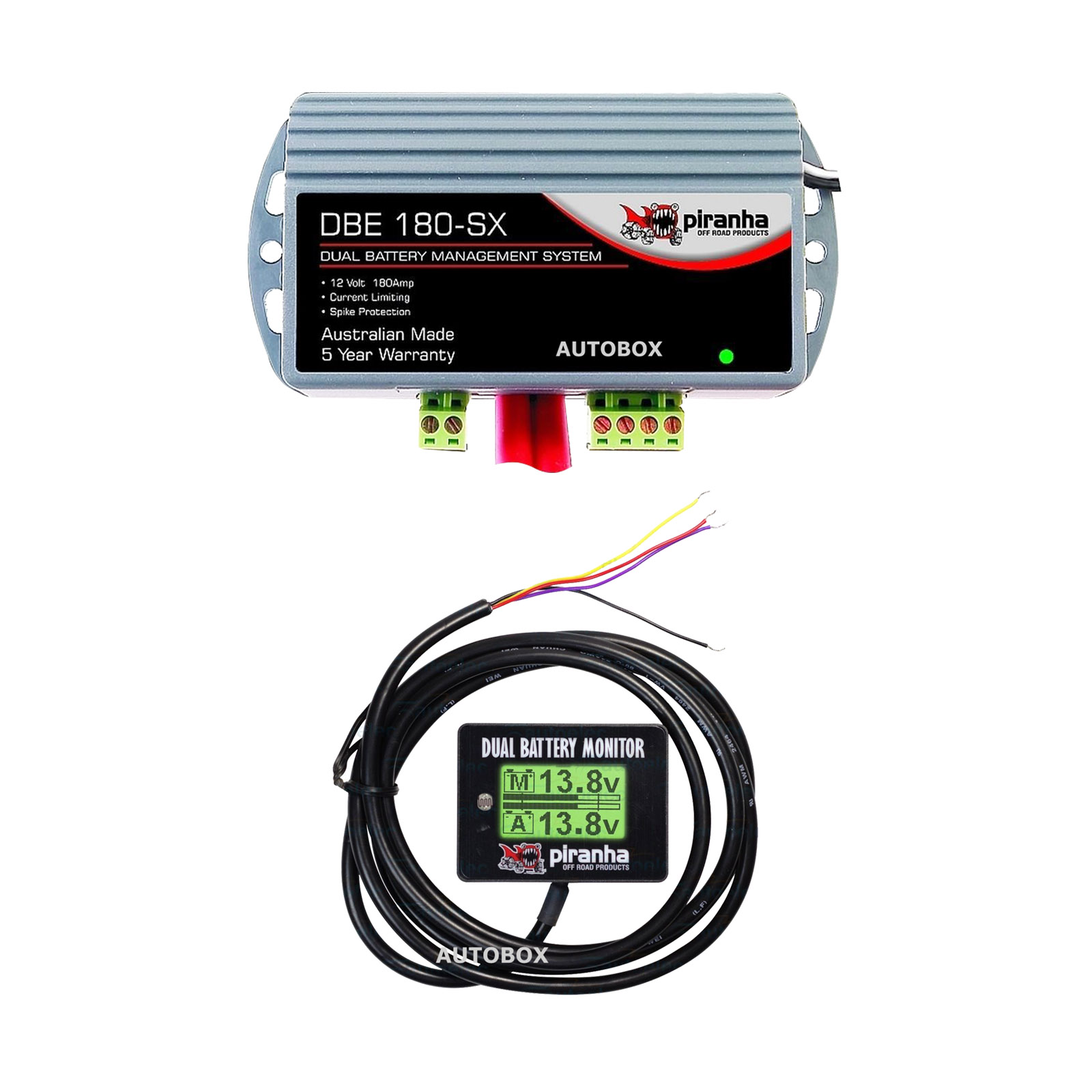

Piranha Dual Battery 180amp Isolator Management System + Monitor + Wiring Kit

Piranha Dual Battery Management System - DBE180-SX

Includes:

DBE180-SX Battery Management System
Piranha DBM5D Battery Monitor
3M + 3M Cable
Earth Strap ( 600mm)
2 x MA11 Brass Battery Terminals
Fitting hardware

Description:

Piranha's DBE180-SX Electronic Isolator is a 180 Amp unit with full spike and surge protection and solar input to charge the auxiliary battery. With a plastic/nylon case, sealed relays and special coatings to resist corrosion and water damage, this is the toughest isolator Piranha has ever built.

The DBE180-SX Electronic Isolator is an ignition sensing isolator and is ideal for touring vehicles with multiple batteries or for those vehicles needing to provide charge to batteries in camper trailers or caravans.

New Features

• VPF - Vehicle Protection Function Protects against overloads and faults
• Sense Function -  Can operate using ignition sense or auto function
• 100 Watt Solar Panel Input - Quick Connection from your Regulated Solar panel to your Auxiliary battery

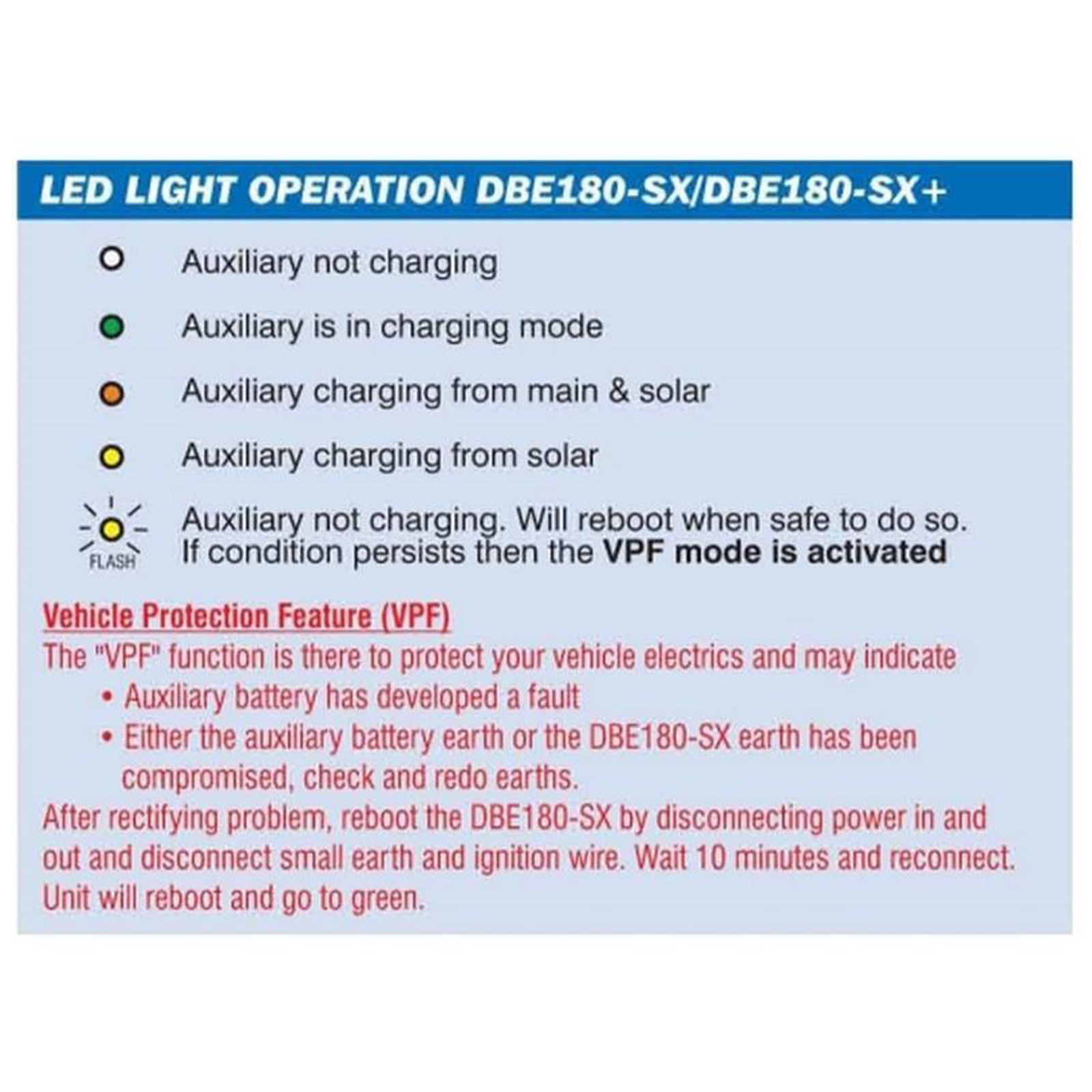

• Diagnostic indicators - LED indicates Charging, non-charging and fault modes

Advanced Electronics:

• Fully automatic operation using advanced electronics and high-performance relays. The electronics are rated for tough 4WD conditions and the relays are sealed against dust and moisture.
• High accuracy electronics manage the auxiliary battery for both effective charging and safe starting.
• The main starting battery is always protected and cannot be drained by a load connected to the auxiliary battery.
• Electronics are factory calibrated - no adjustments are required for the life of the unit.
• Efficient low power design offers maximum charging current for the auxiliary battery.
• New intelligent current limiting circuitry isolates auxiliary battery on accidental overload
• Improved electrical spike and surge protection.

Easy to use:

• New design with secure internal connection of battery cables

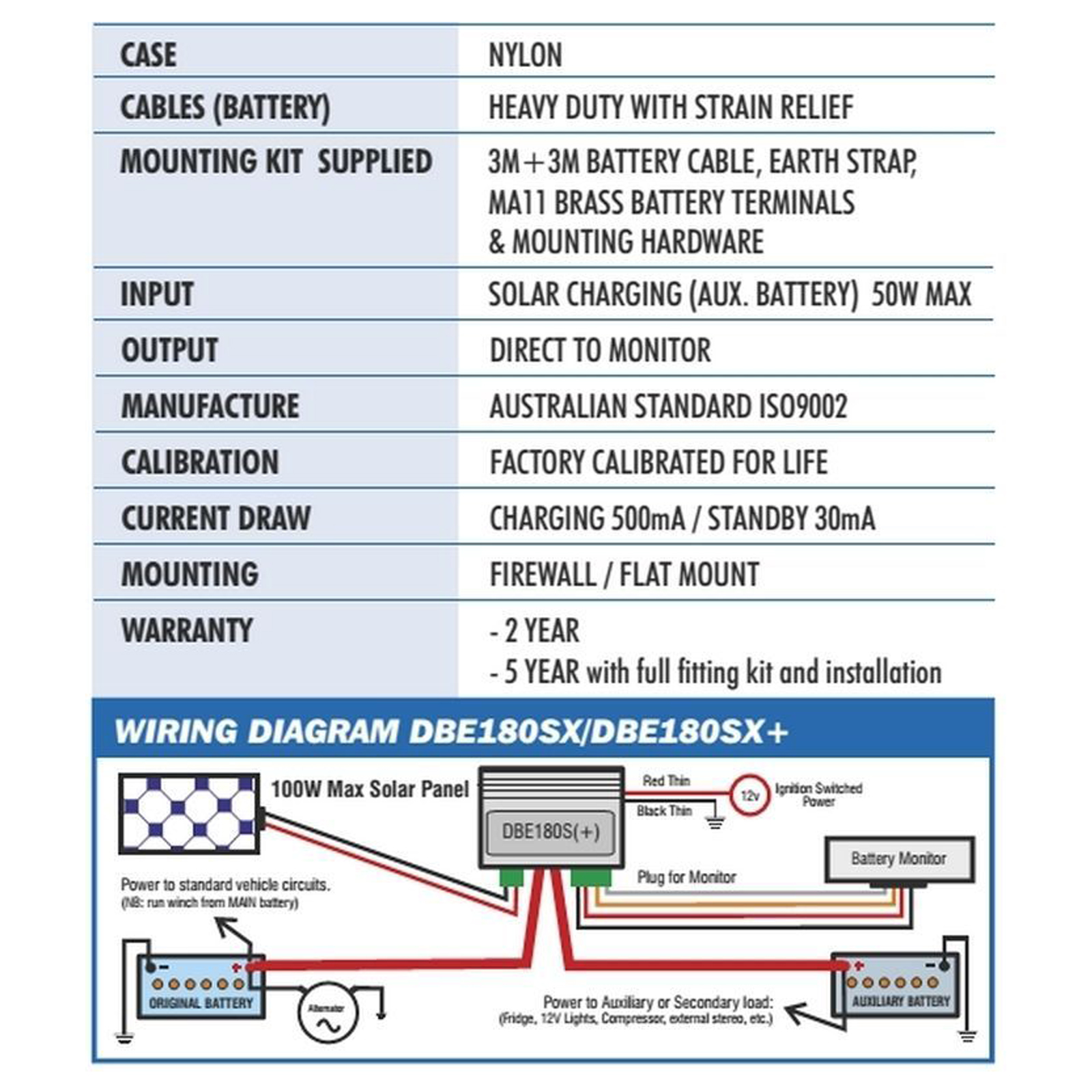

• simple to install. All wires, including two 3m heavy duty high quality heat and oil resistant cables with built in strain relief are provided.
• Easily mounted to engine bay or firewall
• Large LED indicator provides clear feedback to the user
• Manufactured in Australia to ISO9002 manufacturing standards

More Convenient:

• Output for remote monitoring auxiliary battery
• Input for auxiliary battery charging with regulated solar panels (100 Watts MAX)
• Convenient snap-fit connectors

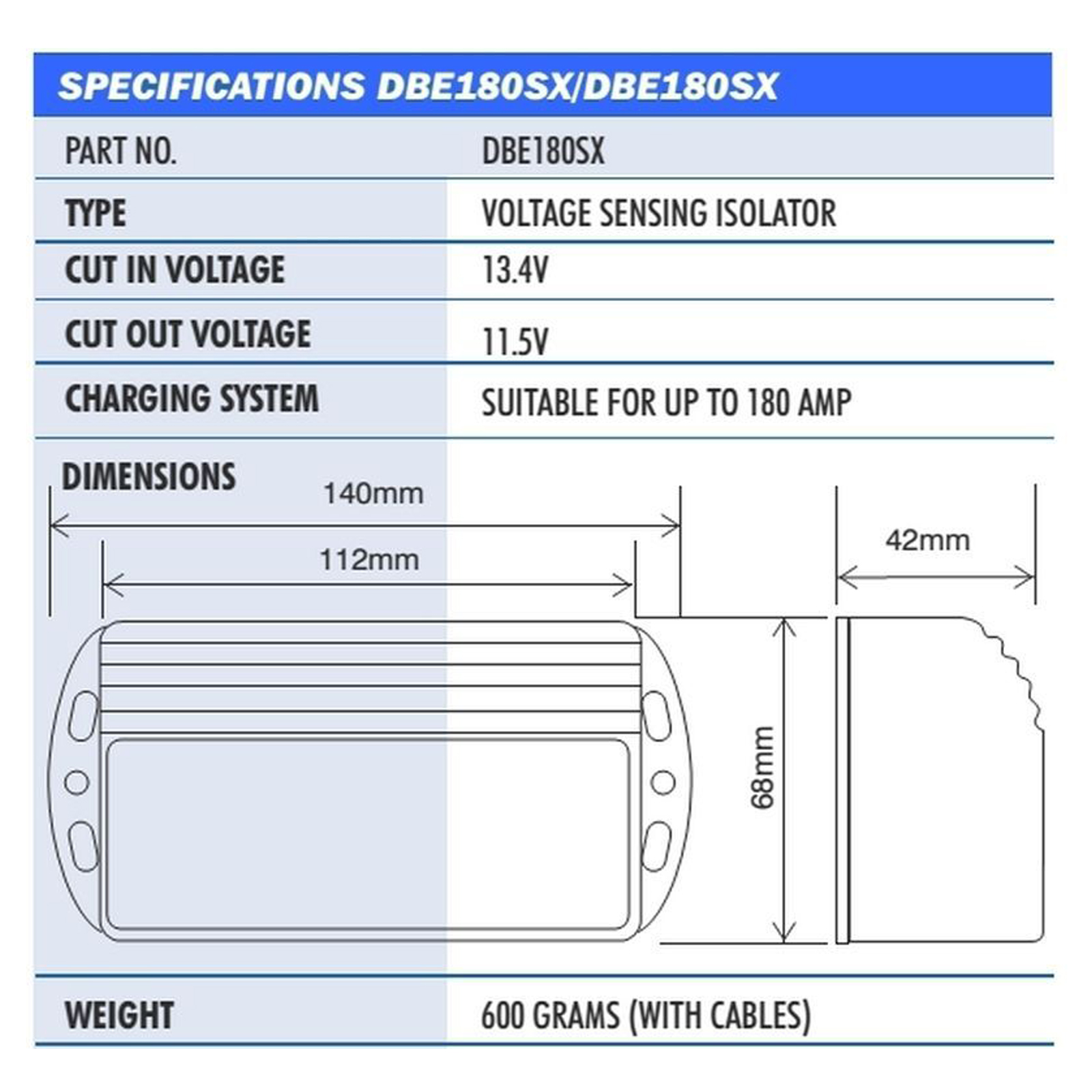

• Cut-in Voltage 13.4V
• Cut out Voltage 12.8V
• Suitable for charging up to 180amp

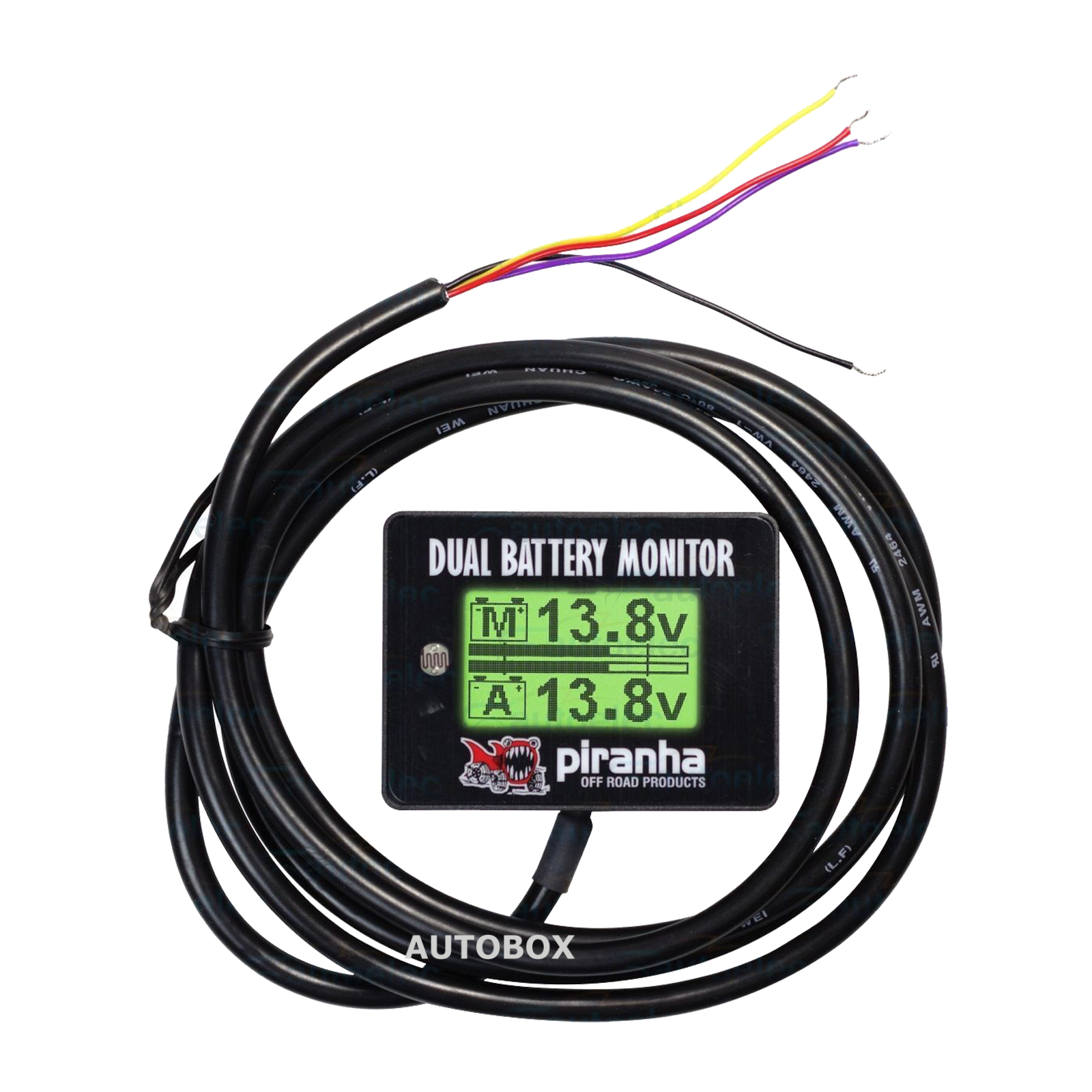

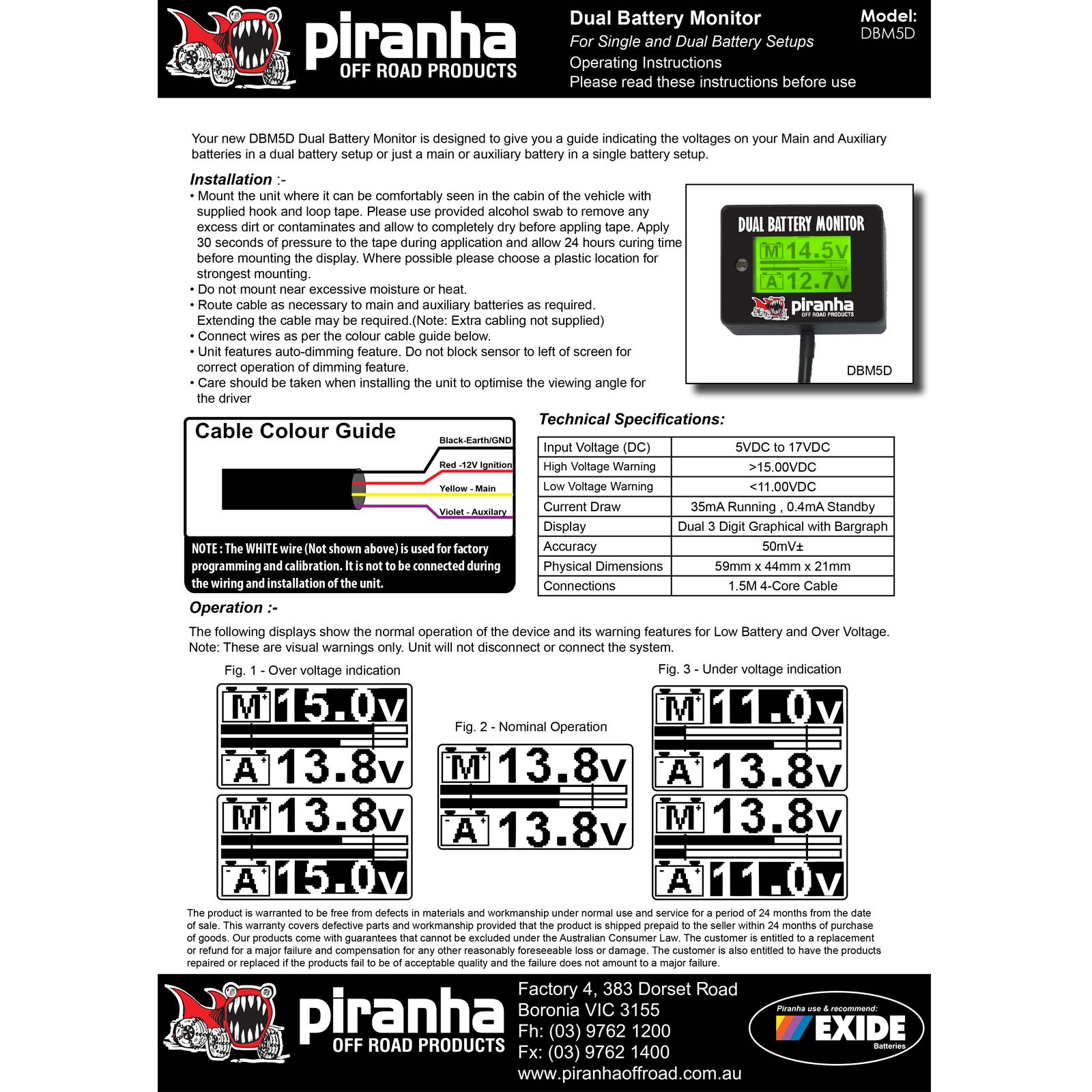

Piranha DBM5D Battery Monitor

• Dual Battery Monitor is designed to give you a guide indicating the voltages on your Main and Auxiliary batteries in a dual battery setup or just a main or auxiliary battery in a single battery setup.

FEATURES:

• Accurate to 50mV, this dash-mounted monitor will not leave you in the dark about your charging states again.
• Visual indications of Low Battery charge when lower than 11.00V and Over Voltage over 15.00V.
• Auto-dimming display for low light conditions without the need for an extra wire to the vehicle.
• Measurements displayed both in 0.01V increments as well as a bar graph.
• Can be used in both Dual Battery mode or Single Battery mode.
• Supplied with easily attached velcro (so no drilling required!)

Product: Dual Battery Monitor

• Input Voltage (DC):5V to 17V
• Current Draw:35mA Running - 0.4mA Standby
• Display: Dual 4 Digit Graphical with Bargraph
• Accuracy:50mV
• Physical Dimensions:59mm x 44mm x 21mm
• Connections:1.5M 4 Core Cable
