Direction Plus 4WD Diesel Fuel Filter Water Separator Pre-Filter 30 Micron 8mm

Manufacturer Number: FM704DPK-468

$159.85
Only 1 Left!


30-micron diesel pre-fuel filter designed to eliminate expensive engine damage by reducing fuel contaminants that could potentially cause blockages if allowed to pass through to the original 2-4 micron filter found in most common rail diesel engines.

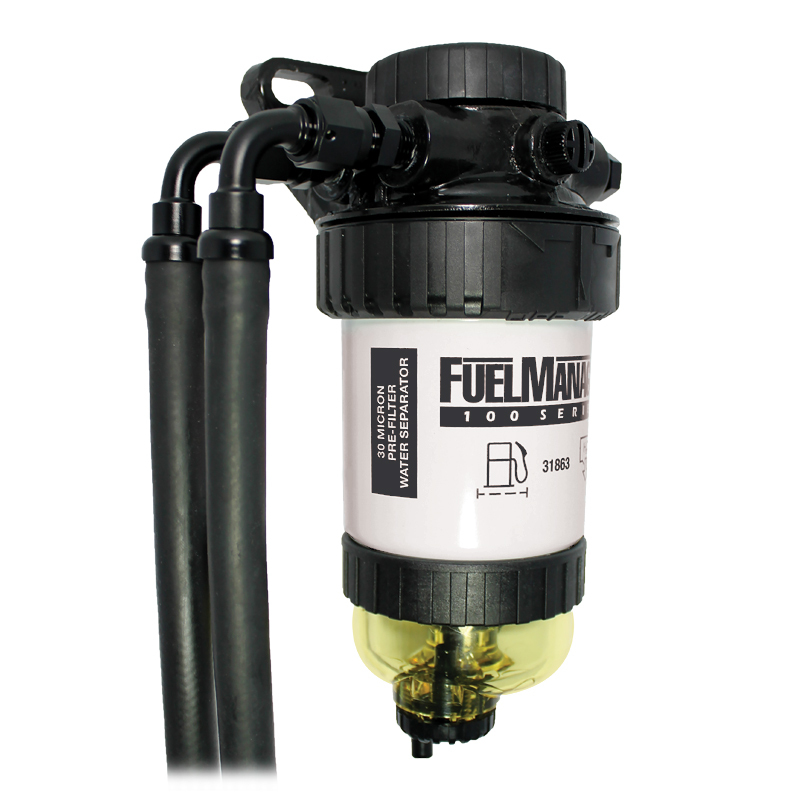

30 Micron Diesel Fuel Filter / Water Separator Pre-Filter

Universal Fit

No Bracket included - See other listings for Vehicle specific kits

Does not suit models with a DPF or Thailand Built Auto D40's

An absolute must for anybody considering an outback trip

Description:

Dirty fuel is becoming an increasingly widespread problem with common rail diesel engines.

Any moisture or contaminants allowed to pass through into the fuel system can potentially damage injectors, pumps and other expensive components, and with injectors costing thousands of dollars per set to replace, the price of repairing this damage can quickly become expensive.

Features:

The Fuel Manager consists of a 30-micron diesel pre-fuel filter designed to eliminate expensive engine damage by reducing fuel contaminants that could potentially cause blockages if allowed to pass through to the original 2-4 micron filter found in most common rail diesel engines.

The System Saver allows the bulk of the contaminant to be removed from the fuel before it reaches your final filter. In addition to this 99.99% of all water in the fuel is removed and dropped into the clear bowl.

The Fuel Manager is easily fitted to any common rail engine as a primary filter to clean dirty fuel before it reaches the system components, and acts as an agglomerator, causing moisture to form droplets of water and collect into a Perspex drain bowl before it has the opportunity to become hazardous. The Perspex bowl allows the filter to function effectively while avoiding damage that can occur in glass by elements such as frost and stones.

Full range of spare parts is available for the Fuel Manager.

Specification:

  • The Fuel Manager basic assembly consists of a cast aluminum header with two inlet and two outlet female threaded ports for fuel line connections. The flexible design has an inlet port on each side, and an outlet port on each side, allow for easy mounting and pipe flow. Unused ports are plugged with the caps provided.

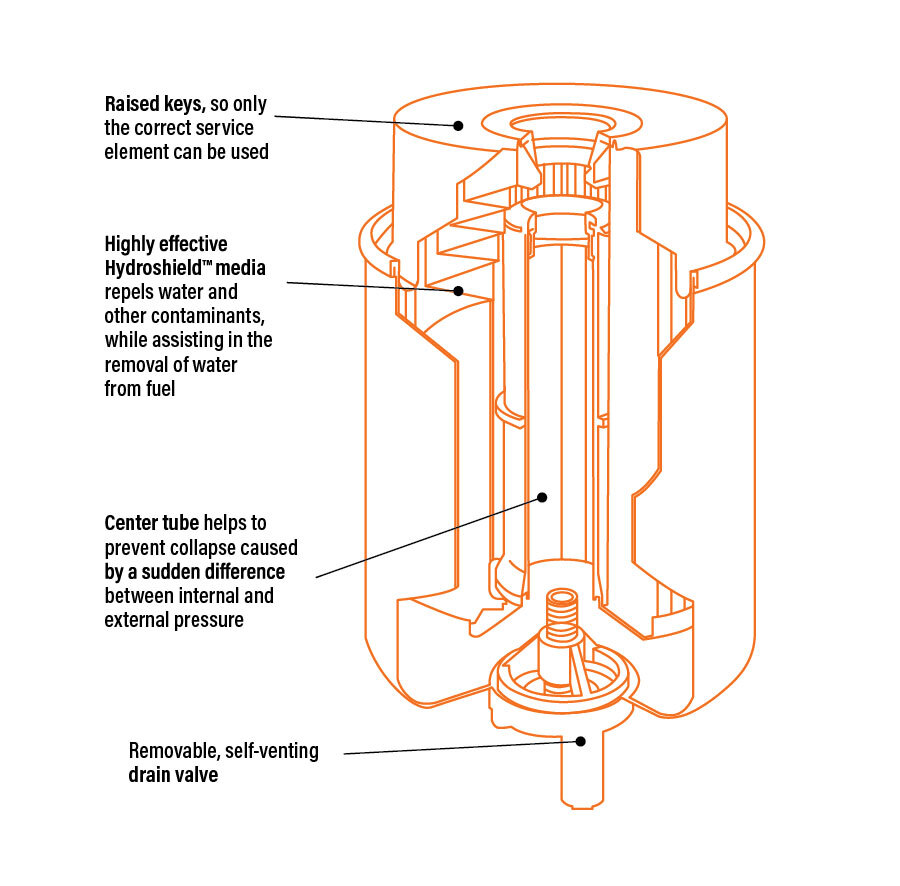

  • Attached to the header is the element, which contains the media to remove water & other contaminants.
  • Suitable for all Diesel engines from 50hp to 350hp (37kw to 261kw) with a maximum fuel operating pressure of 60psi.

Kit Includes:

1 x Fuel Manager 30Micron Filtration Unit
1 x 1M Fuel Hose SAE J30R7 50PSI WP 5/16"
2 x Straight Male Quick Fit Barb fittings
2 x Blanking Plugs
2 x Hose Clamps
2 x Bolts for Mounting

This is a Universal Kit, suitable to any 4WD up to 650HP. See our store for Vehicle Specific kits with mounting brackets.

Fitting Instructions:

1. Remove inlet hoses from original filter.
2. Install all fittings and plugs into the filter assembly using suitable thread paste sealant such as Threebond 1110B.
3. The run fuel line from the final filter to the outlet of the Fuel Manager unit.
4. Fit the supply fuel line to the inlet of the Fuel Manager.
5. Reconnect outlet pipe of the factory filter to the inlet of the common rail supply pump.
6. Ensure all fuel lines are suitably secured using ties or "P-Clamps".
7. Prime the system using the hand primer on the factory filter. When the primer goes firm, the engine is ready to start.

If no hand primer on the factory filter - Disconnect outlet hose on Fuel Manager.  Place a receptacle to catch fuel under the outlet of the Fuel Manager.
Turn the key to ON position to prime the Fuel Manager assembly with fuel. Once the filter is full turn to OFF position.

Service:

  • Check the filters for water regularly, and drain as required.
  • Water will collect at the bottom of the bowl, and appears a different color from the fuel.
  • Drain water by opening the self-venting drain valve and allowing all water to escape. The see-through bowl is re-usable.
  • Change the element canister when necessary.
  • The Fuel Manager consists of a 30-micron diesel pre-fuel filter designed to eliminate expensive engine damage by reducing fuel contaminants that could potentially cause blockages if allowed to pass through to the original 2-4 micron filter found in most common rail diesel engines.
  • The System Saver allows the bulk of the contaminant to be removed from the fuel before it reaches your final filter. In addition to this 99.99% of all water in the fuel is removed and dropped into the clear bowl.
  • The Fuel Manager is easily fitted to any common rail engine as a primary filter to clean dirty fuel before it reaches the system components, and acts as an agglomerator, causing moisture to form droplets of water and collect into a Perspex drain bowl before it has the opportunity to become hazardous.
  • The Perspex bowl allows the filter to function effectively while avoiding damage that can occur in glass by elements such as frost and stones.
  • 12 Month Warranty

What's in the Box?

  • Fuel Manager Diesel Fuel Filter Universal for Nissan D22 D23 D40ƒ???????? (Manual)
SKU FM704DPK-468
Model # FM704DPK-468
Barcode # 9347794000047
Brand Directions Plus
Shipping Weight 1.7500kg
Shipping Width 0.260m
Shipping Height 0.160m
Shipping Length 0.330m
Unit Of Measure ea
