SAAS GPS Unit Speedo Tachometer 0-220 KPH 80mm In Dash Muscle Digital Series 3

SAAS GPS Unit Speedo Tachometer 0-220 KPH 80mm In Dash Muscle Digital Series 3

SG32632-SG32642-SG31650

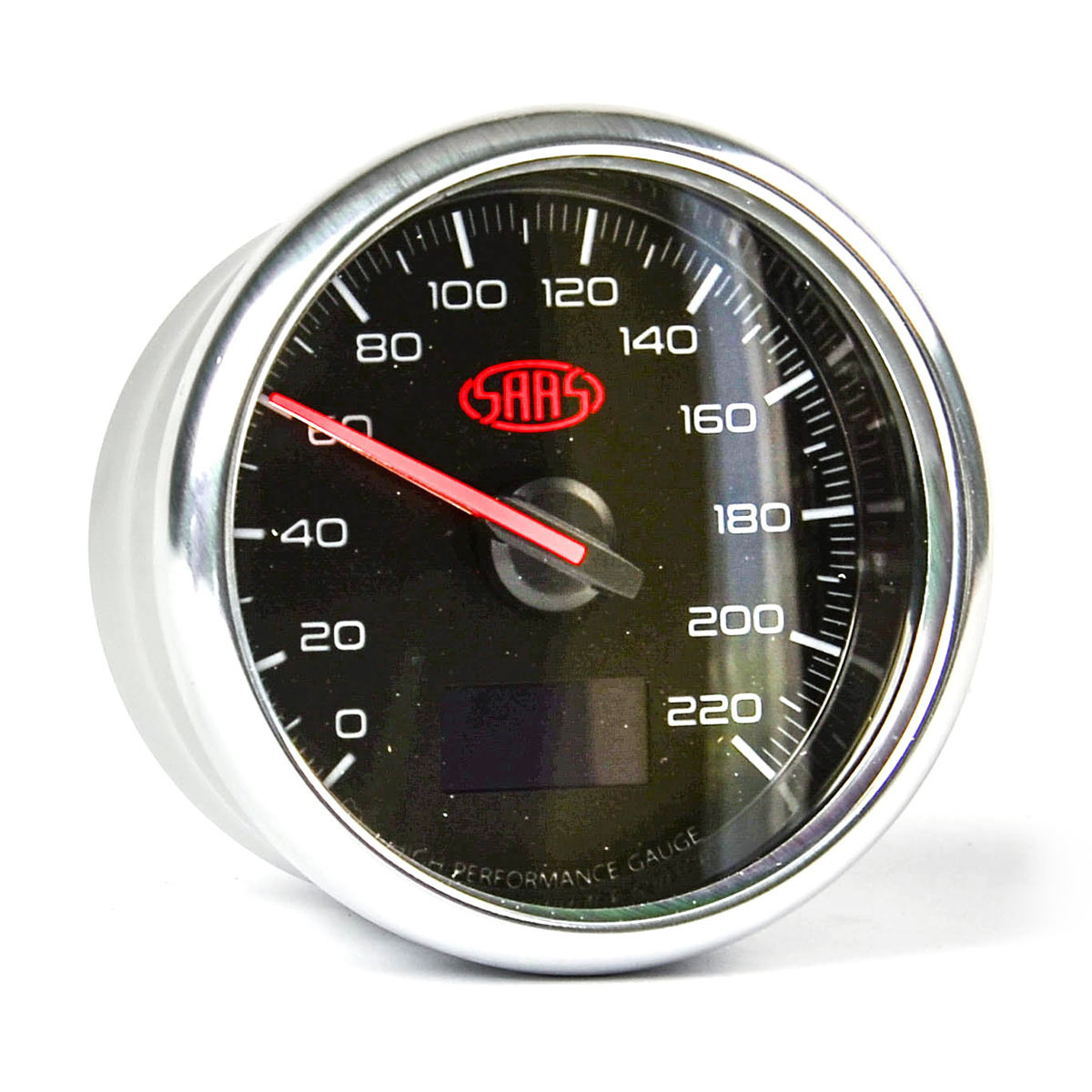

SAAS Speedometer 0-220 KPH 80mm 3 1/8" In Dash Black Muscle Series 3

SG32632

Presenting the latest in SAAS Muscle Series 3 Gauges - our full featured 0-220 KPH Digital/Analogue Speedometer designed for in-dash installation

My vehicle doesn't come with a hall effect sender - what sender will I need? SAAS provides a GPS speed sender for this situation. The GPS sender is more accurate than a mechanical sender and even has "fall-back" capacity for tunnels etc. You may need to check with your local authorities regarding using a GPS signal source as a sole source for speed. See our SG31650 GPS Speed Sender for more information

Features:

• Gauge Diameter 80mm Body OD / 89mm Bezel OD
• Gauge Operating Range: 0-220 KPH (MPH)
• Separate TRIP (A) and TRIP (B) Odometer. Read Speed in either KPH or MPH
• Maximum (Peak) Speed Recall
• Built-In Adjustable Speed Alert
• Multi-Vehicle Pulse Rate Selector input that works with all electronic speed generators (optional parts may be required for cable driven speedometers).
• OLED Multifunction Display window shows all user functions and setup functions

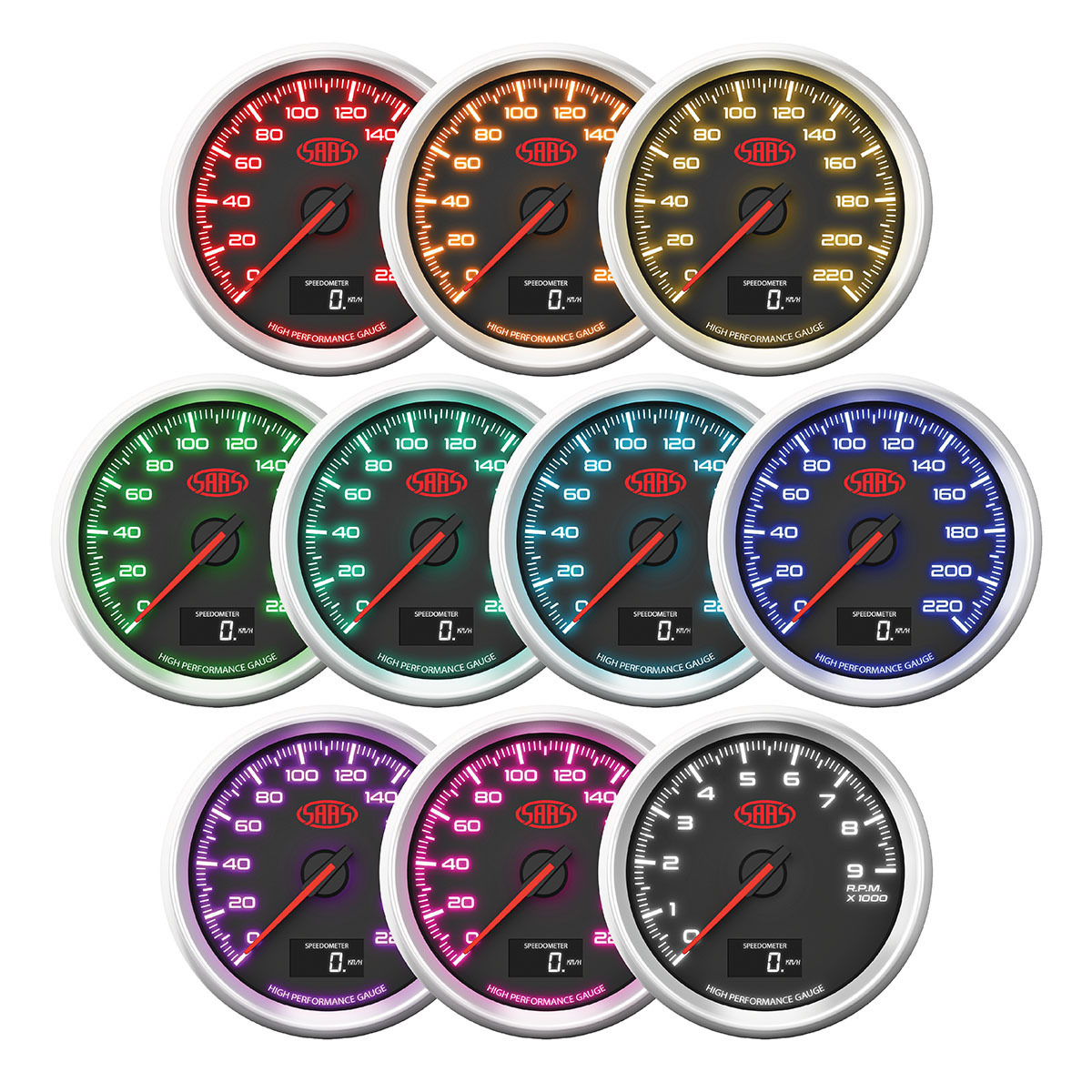

• 10 Colour LED Lighting options: Red, Red Amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White with 5 levels of dimming for each mode.
• Adjustable Needle Viewing Angle. Get a 100% read on your analogue needle.

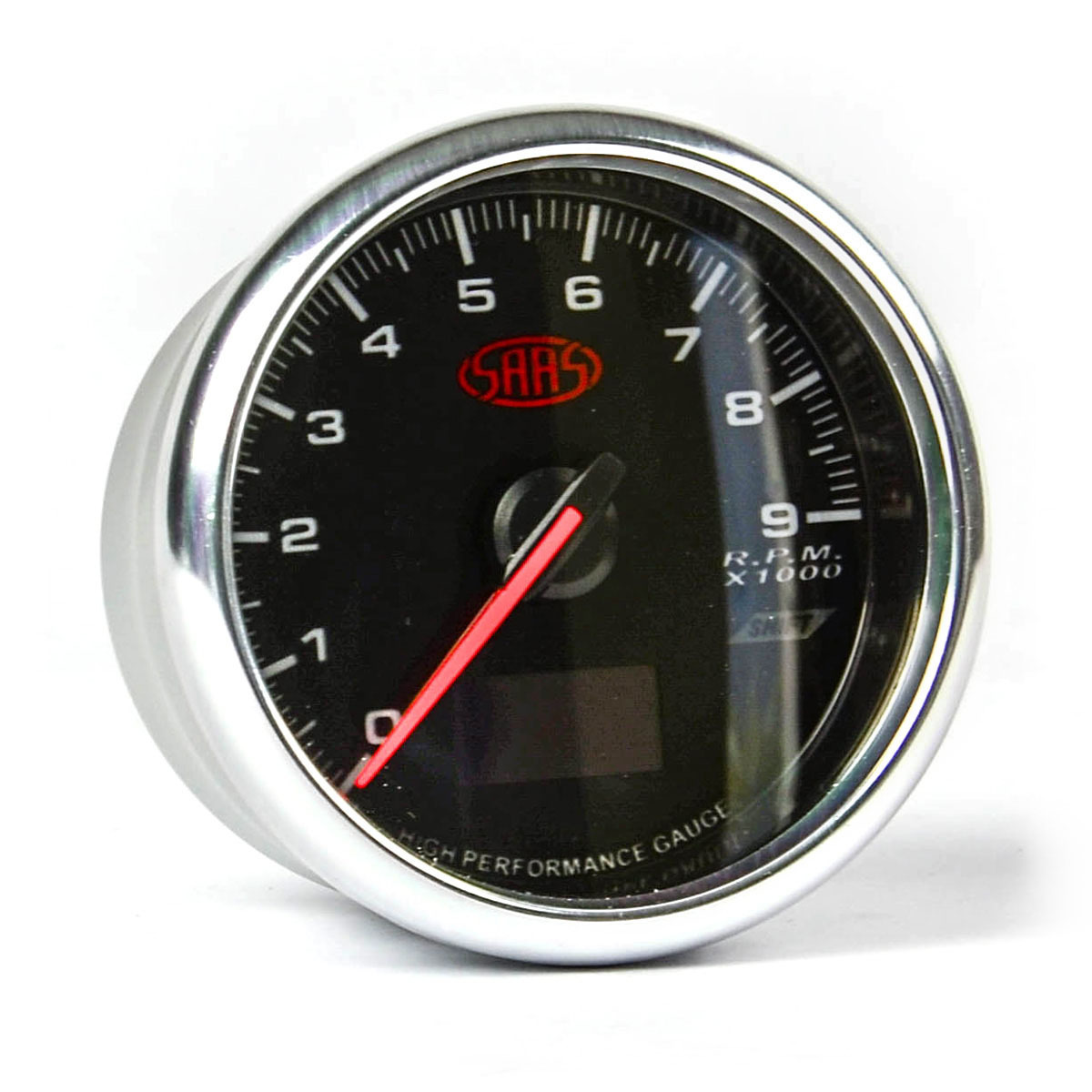

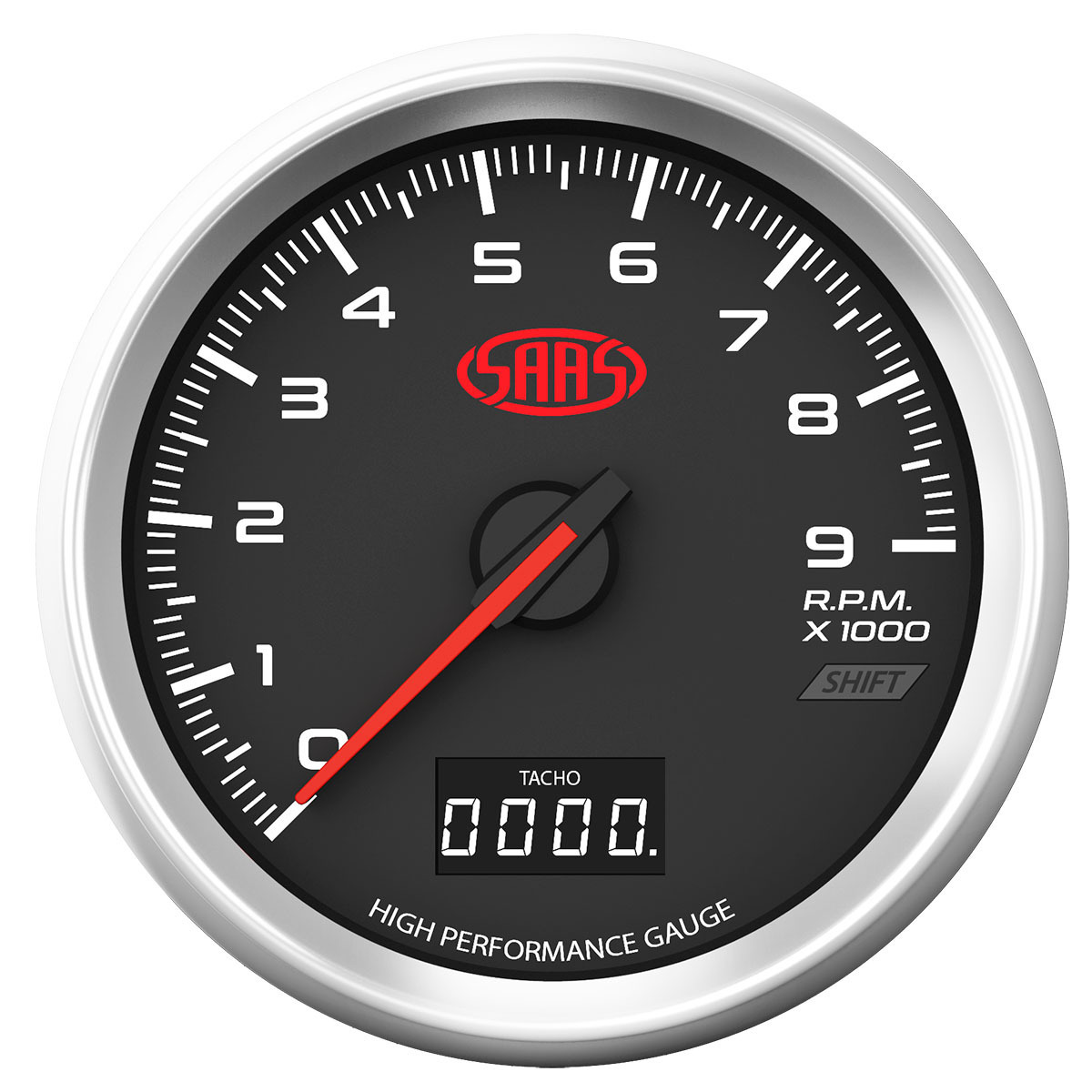

SAAS Tachometer 0-9000 Shiftlite 80mm 3 1/8" In Dash Black Muscle Series 3

SG32642

Presenting the latest in SAAS Muscle Series 3 Gauges - our full featured 0-9000 RPM Digital/Analogue Tachometer designed for in-dash installation.

Features:

• Gauge Diameter 80mm Body OD / 89mm Bezel OD
• Gauge Operating Range: 0-9000 RPM
• Built-In Pre-Shift Light Warning will illuminate when a pre-set RPM is reached
• Main Shift Light Indicator will illuminate AND sound a warning tone will sound when a pre-set RPM is reached
• Compatible with 99.9% of petrol engines. We have you covered with a choice of 1 to 8 cylinders for single or multi-coil engines.
• CAN-BUS Compatibility. Perfect for VE Commodore and FG Falcon
• OLED Multifunction Display window shows all user functions and setup functions
• 10 Colour LED Lighting options: Red, Red Amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White with 5 levels of dimming for each mode.
• Adjustable Needle Viewing Angle. Get a 100% read on your analogue needle.

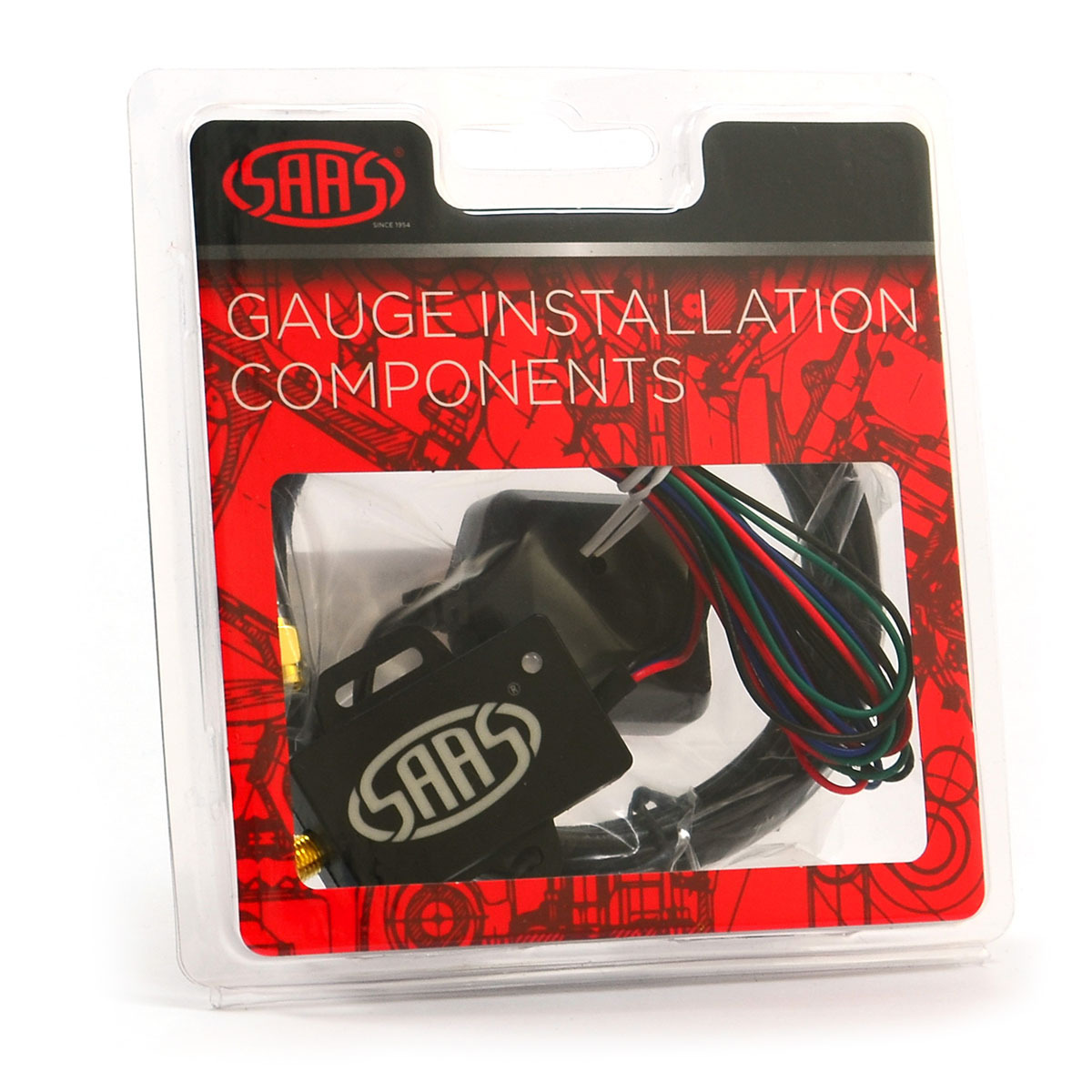

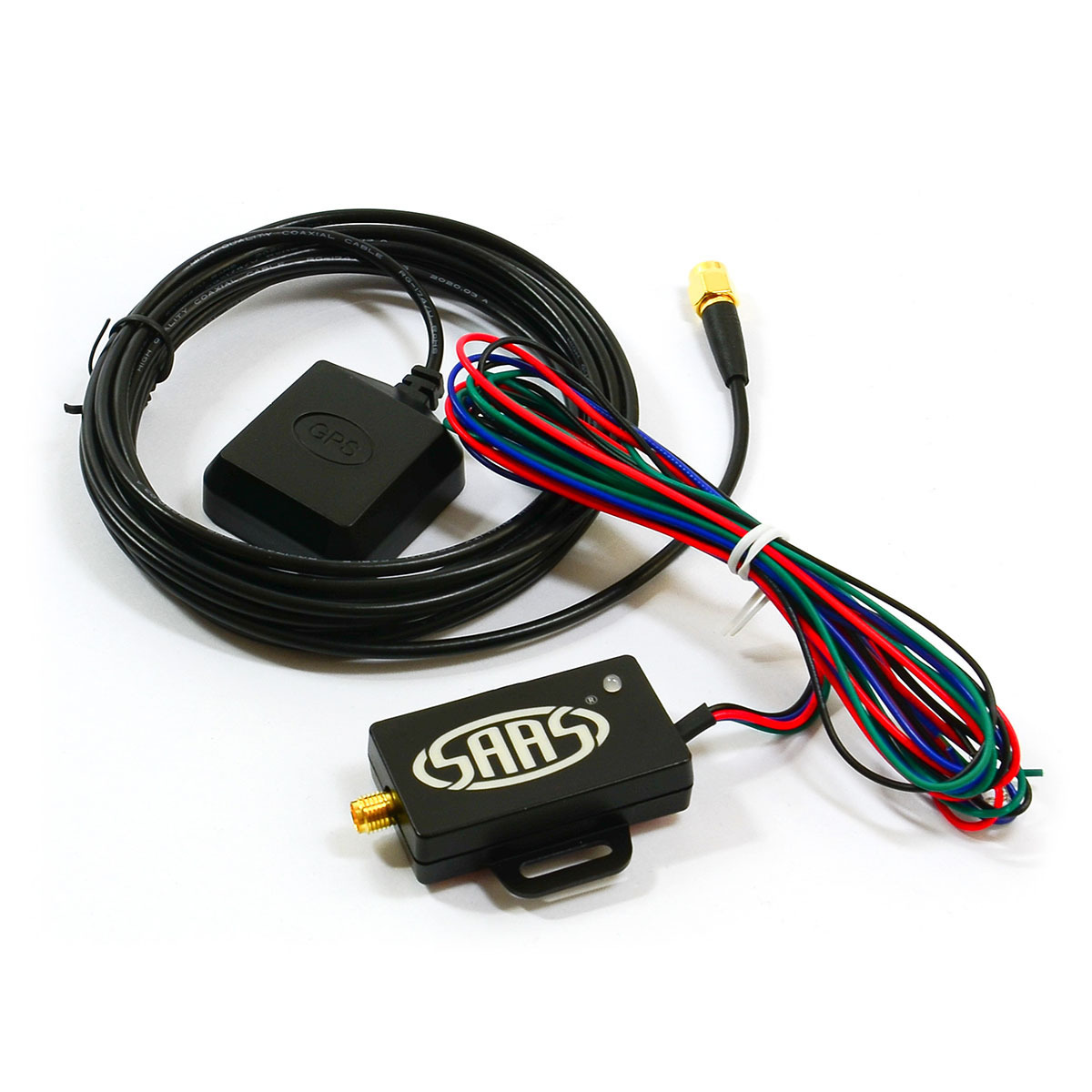

SAAS Speedometer GPS Sensor and Antenna

SG31650

The perfect companion to our in-dash electronic Speedometer, our SG31650 Universal GPS Speed Sender can actually mate to any Speedometer, Odometer or Tachograph that requires an accurate speed signal (pulse) where there is the absence of a traditional VSS.

If you have an older vehicle that does not have a Vehicle Speed Sender (sometimes also known as hall effect), then it can be both difficult and expensive to find a suitable solution. The SAAS GPS Sender provides a calibration free unit which uses data received from the Global Positioning Satellite network. It calculates 3 dimensional ground speed and provides a pulsed output with a high degree of accuracy. You may need to check with your local authorities regarding using a GPS signal source as a sole source for speed.

Cable Assignment:

• RED: Power + DC8~32V (may require resistor in higher V installs)
• BLACK: Ground/Earth
• GREEN: Speed Pulse Signal +'ve output
• BLUE: Speed Pulse Signal -'ve output

Features:

• Direct match to our in-dash speedometers
• Super fast and easy install (when mated to SAAS Speedometers)
• High Accuracy with 0.2% deviation (cable drive speedos are typically 3-5%)
  • Velocity < 0.06m/sec (~ 0.22 kph)
  • Altitude to within 10m
  • Horizontal to within 5m
• Anti GPS Drift technology
• Shockproof and circuit protected
• Pulse compensation for when driving through tunnels (5000 pulses per km)
• Low current draw
• Fast satellite acquisition time
  • First time setup < 60sec
  • Temporary power loss < 13 sec
  • Loss of satellite lock < 2sec
