SHURflo Revolution 4009 12 volt Caravan Water Pump Camper Trailer Motorhome RV

Manufacturer Number: 7552

$158.85
In Stock


The 4009 series pump is constructed for high flow demand, low noise, and no rapid cycling.

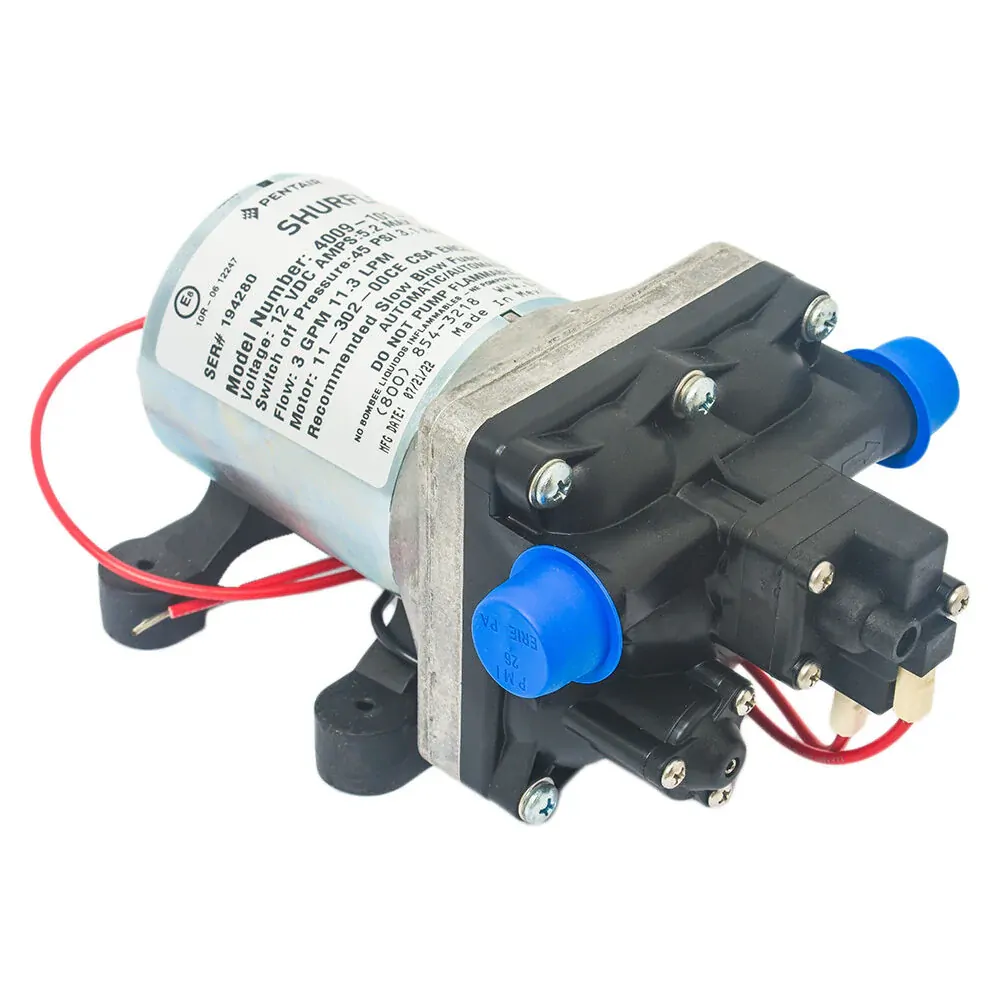

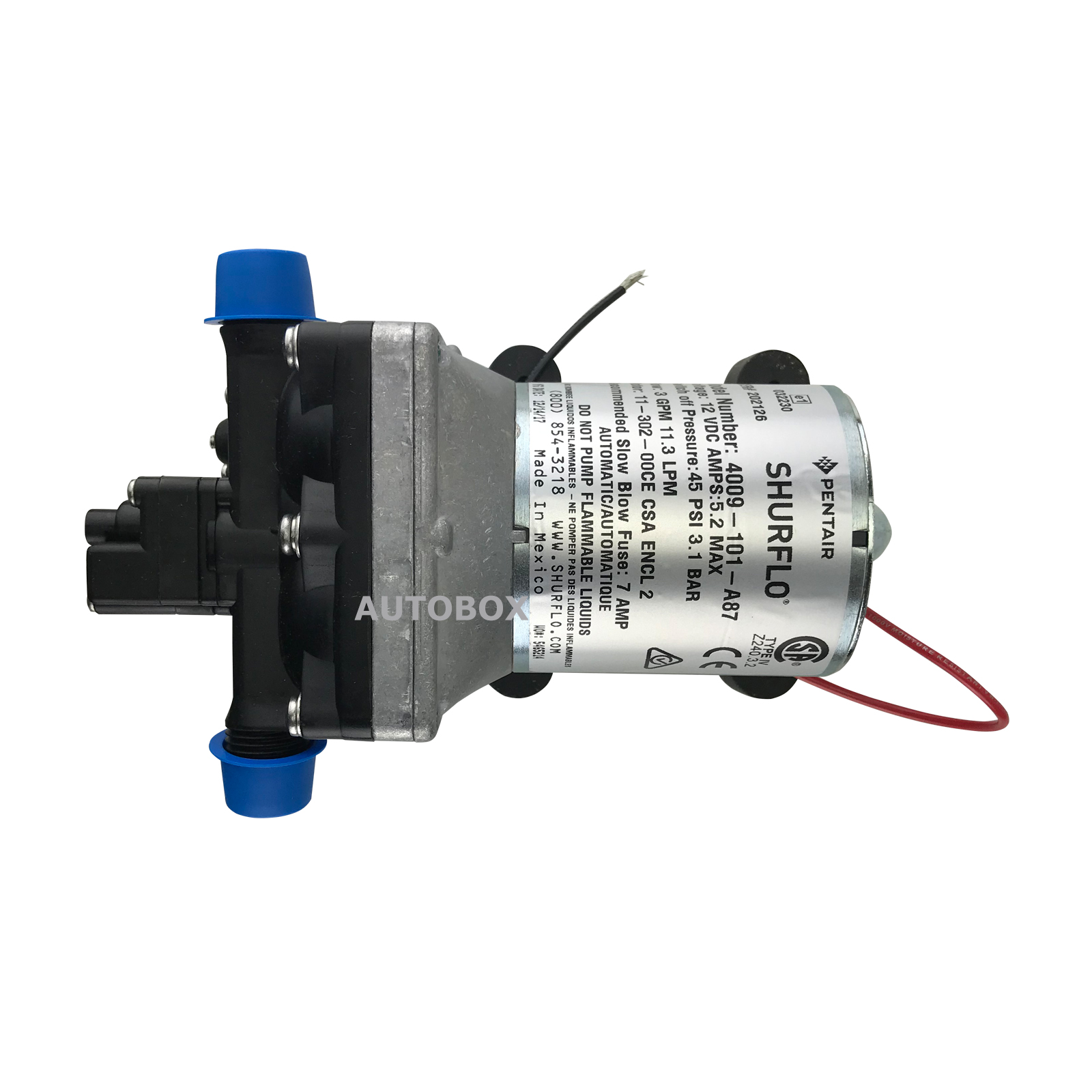

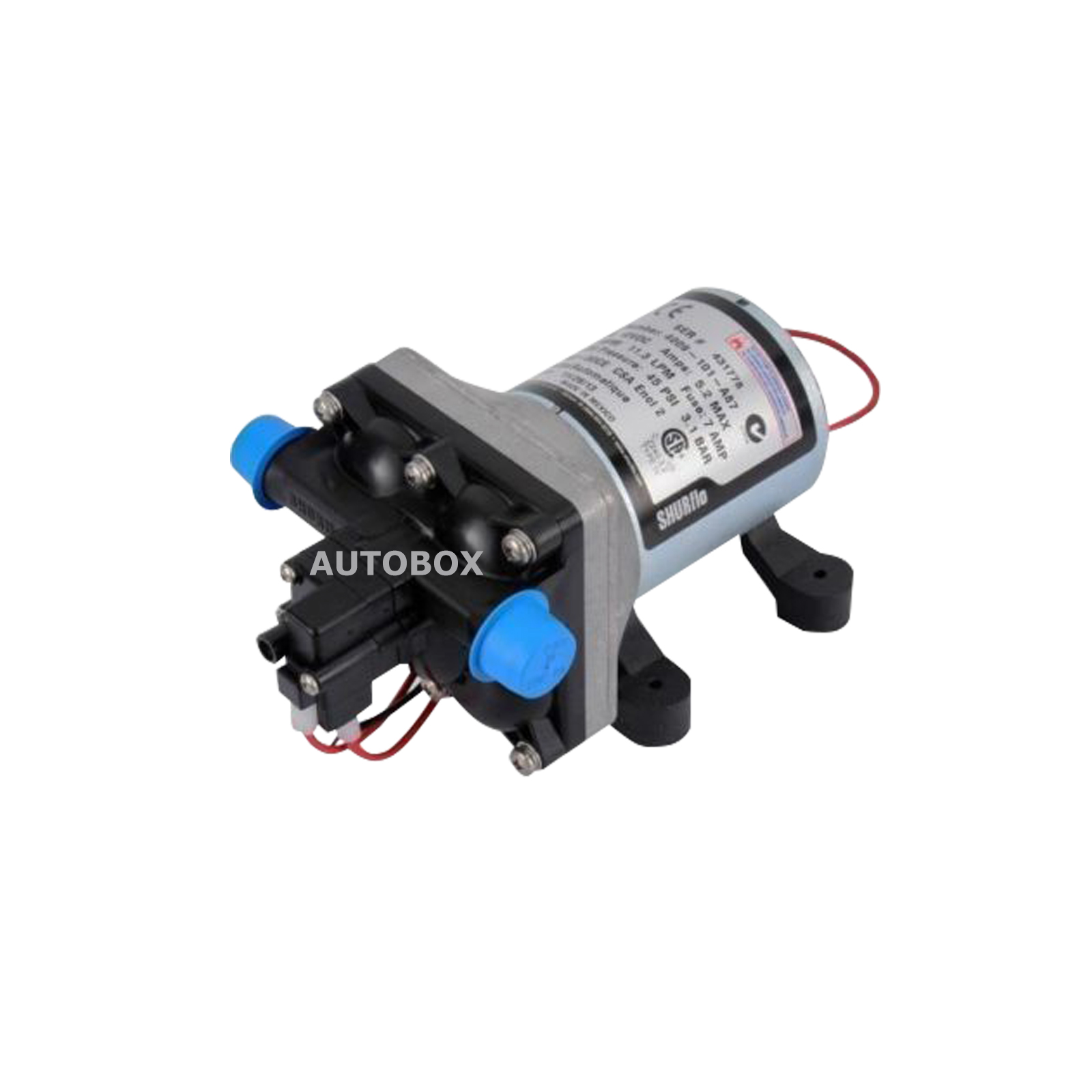

SHURflo Revolution 4009 Water Pump

11.3 l/pm - 12 Volts


Description:

Genuine Shurflo Revolution 4009 Pump only

Shurflo is currently the most popular pump manufacturer in the RV market today. SHURflo's 4009 Series fresh water pump design was created with a unique one-piece diaphragm and internal by pass, assuring long life and top performance in all plumbing systems.

The 4009 series pump is constructed for high flow demand, low noise, and no rapid cycling. SHURflo's quality reputation has been built on the reliability and dependability of every pump they build. The 4009 series fresh water automatic demand pump is super quiet, thermally protected and can run dry without damage.

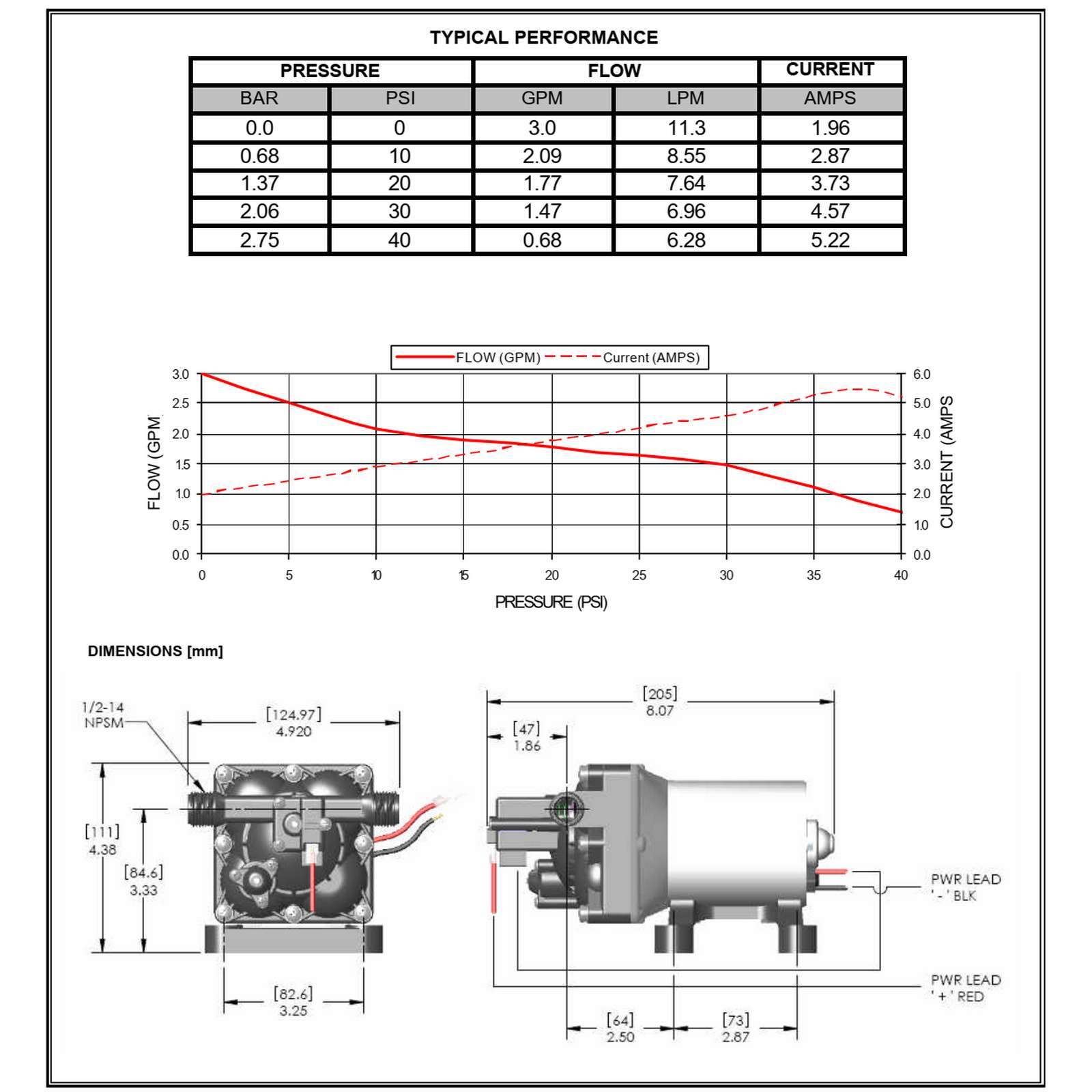

Specifications:

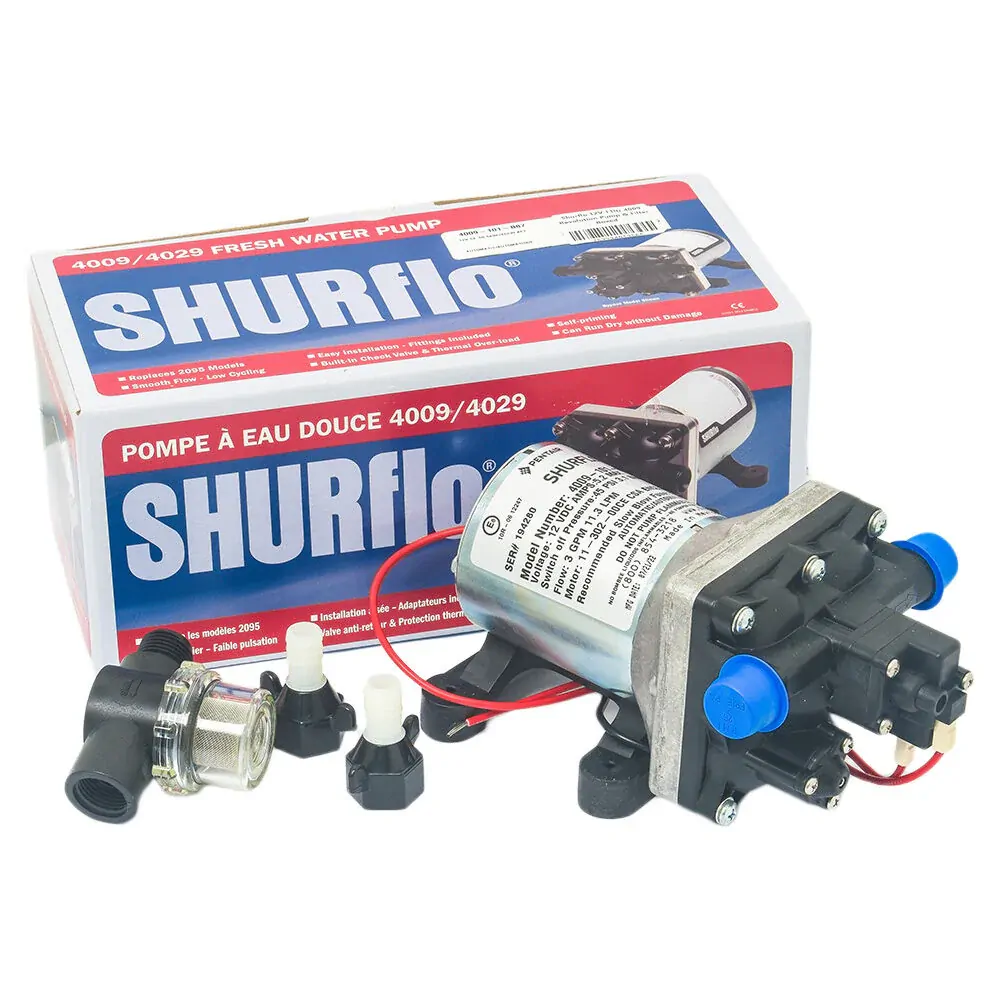

INCLUDES:

  • 1 x Shurflo 4009 Pump
  • 1 x Instruction Manual

PUMP:

  • Type: 4 Chamber Diaphragm pump
  • Ports: 1/2'‹¨«-14 NPSM-Male.
  • Liquid: 54 ?C [130 ?F] Max
  • Dry-Prime: 1.82 M [6 feet]
  • Inlet PSI: 2.1 Bar [30 PSI] Max
  • Run Dry: Yes

ELECTRICAL:

  • Motor: 12VDC Permanent Magnet, Intermittent Duty
  • Protection: Thermal Overload, Automatic Restart
  • Leads: 16 AWG, 25 cm [10'‹¨«] Red +, 33 cm [13'‹¨«] Black -
  • Fuse: 7 Amp Recommended
  • Control: Shut-Off 3.1 Bar [45 PSI]
  • Restart 2.06 Bar [30 PSI]
  • Max By-Pass 3.4 Bar [50 PSI)

MATERIALS:

  • Housing: Polypro
  • Valves: EPDM
  • Diaphragm: Santoprene
  • Hardware: Stainless and Zinc Plated Steel

APPROVALS:

  • CSA, CE, e-Mark


Please note each pump is pre-tested by the manufacturer prior to shipping.

This may result in a small amount of water being in the pump when you receive it. This is perfectly normal and a sign your pump has been tested.



PUMP:

  • Type: 4 Chamber Diaphragm pump
  • Ports: 1/2ƒ???????ƒ??????????-14 NPSM-Male.
  • Liquid: 54 ??????????C [130 ??????????F] Max
  • Dry-Prime: 1.82 M [6 feet]
  • Inlet PSI: 2.1 Bar [30 PSI] Max
  • Run Dry: Yes

ELECTRICAL:

  • Motor: 12VDC Permanent Magnet, Intermittent Duty
  • Protection: Thermal Overload, Automatic Restart
  • Leads: 16 AWG, 25 cm [10ƒ???????ƒ??????????] Red +, 33 cm [13ƒ???????ƒ??????????] Black -
  • Fuse: 7 Amp Recommended
  • Control: Shut-Off 3.1 Bar [45 PSI]
  • Restart 2.06 Bar [30 PSI]
  • Max By-Pass 3.4 Bar [50 PSI)

MATERIALS:

  • Housing: Polypro
  • Valves: EPDM
  • Diaphragm: Santoprene
  • Hardware: Stainless and Zinc Plated Steel

What's in the Box?

INCLUDES:

  • 1 x Shurflo 4009 Pump
  • 1 x Instruction Manual
SKU 7552
Model # 7552
Brand Shurflo
Shipping Weight 2.5000kg
Shipping Width 0.220m
Shipping Height 0.140m
Shipping Length 0.140m
Shipping Cubic 0.004312000m3
