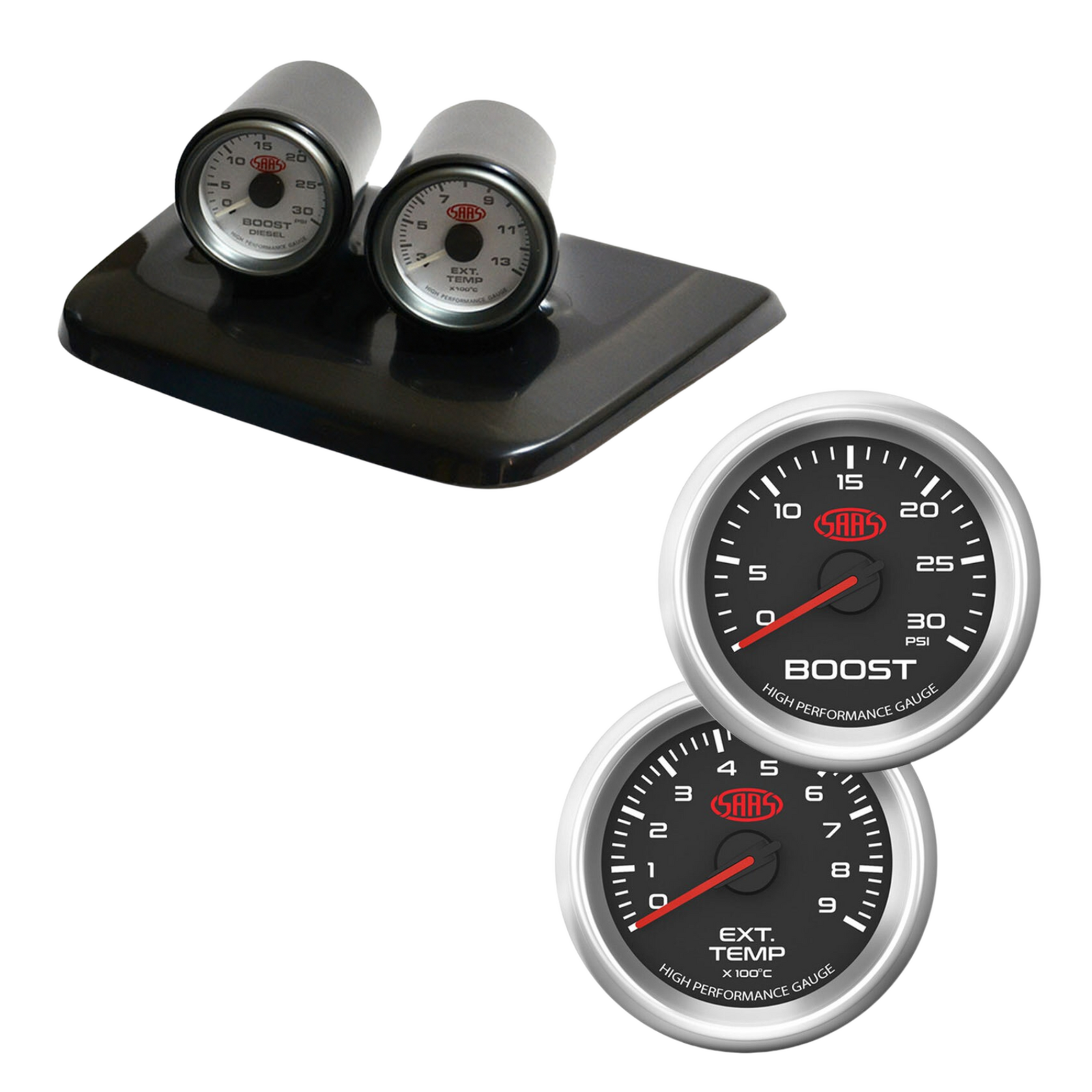

Twin 2 Gauge Dash Pod for Nissan Patrol 1997 - 2004 GU Y61 w/ Black Series 3 Boost & Exh

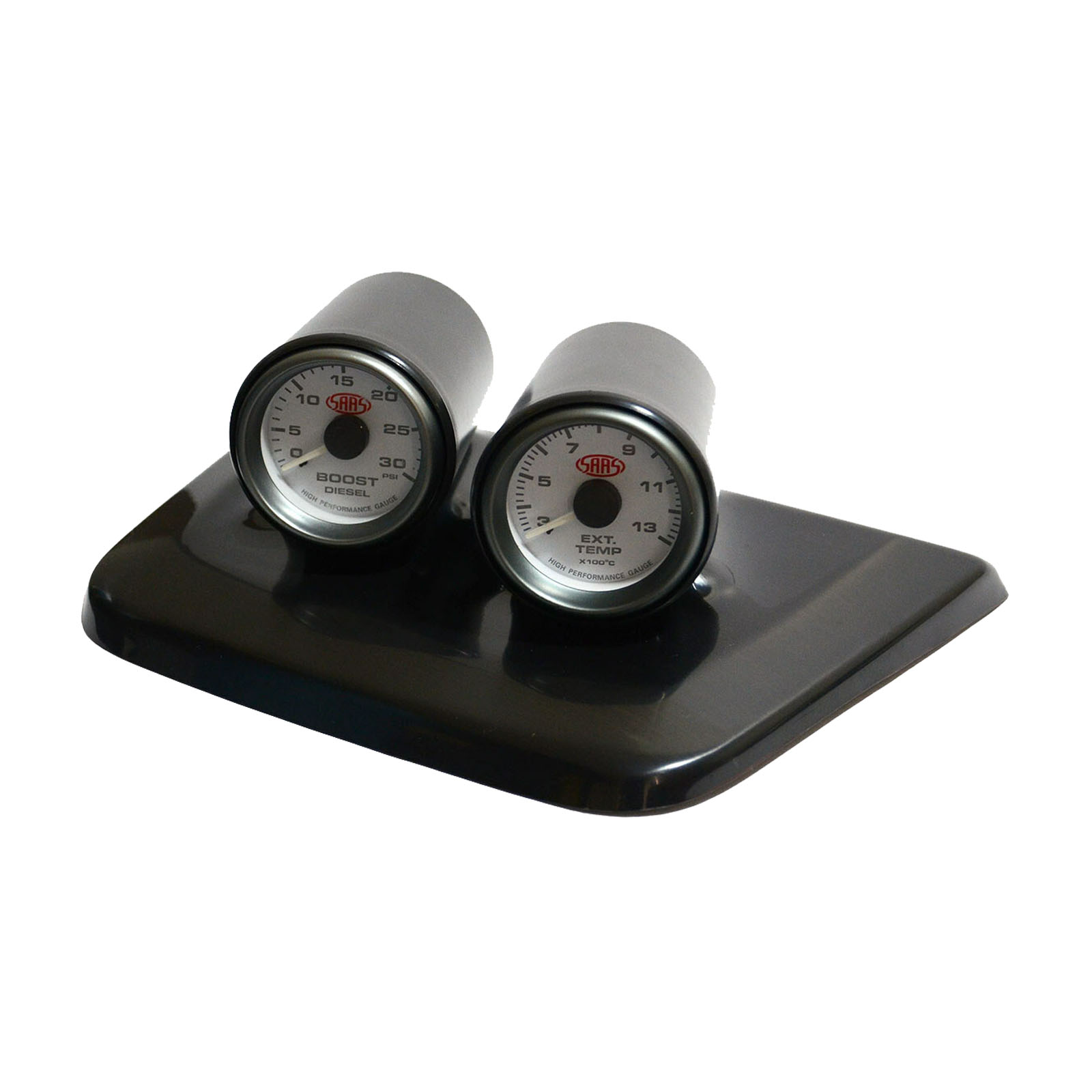

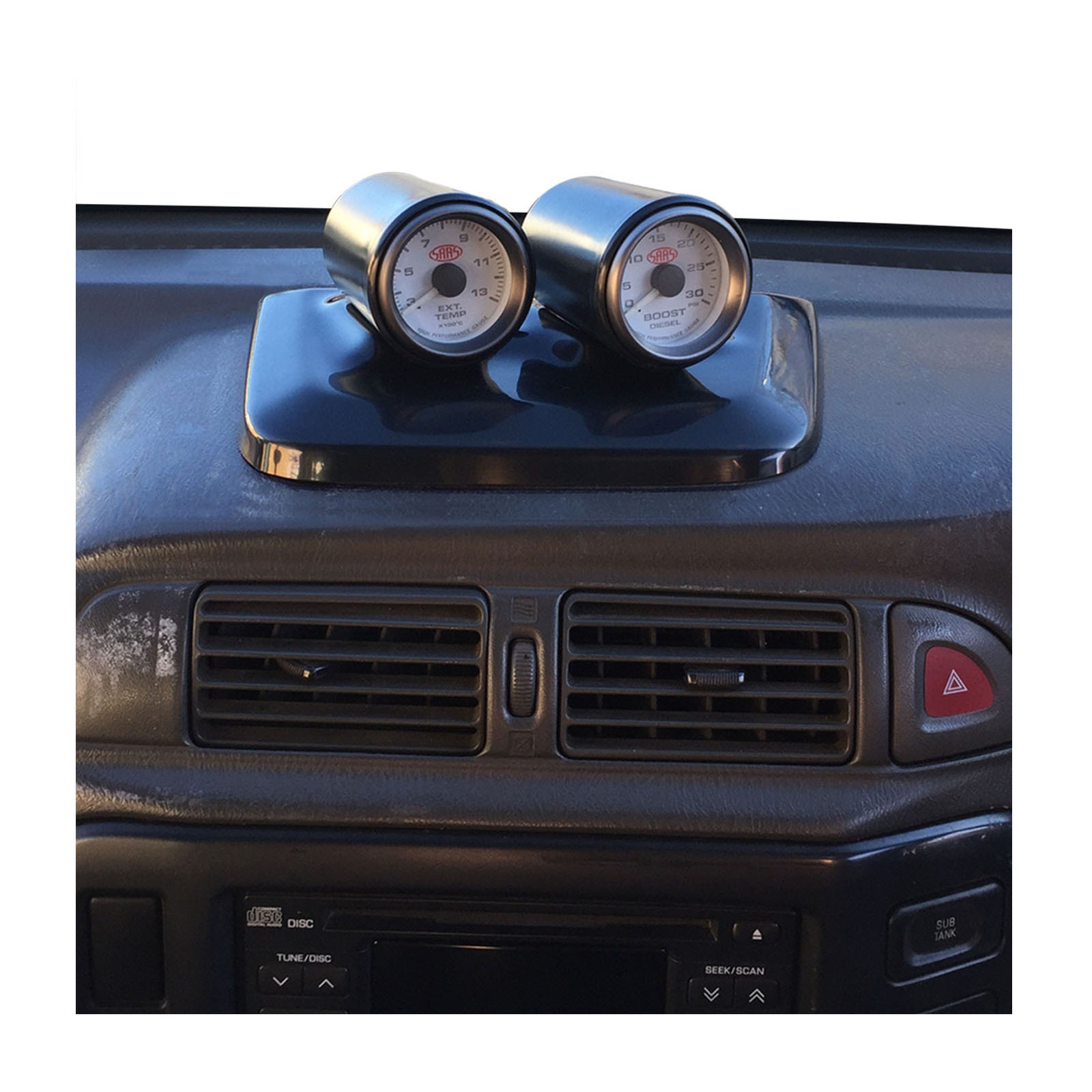

SAAS Twin Gauge Dash Pod

Nissan Patrol GU Y61 1997-2004
Series I, II and III (all Models)

Also Series IV onward DX Cab Chassis

• Suits SAAS Muscle/Trax/Autoline/Streetline and generic 52mm (2 inch) gauges
• Factory integrated design

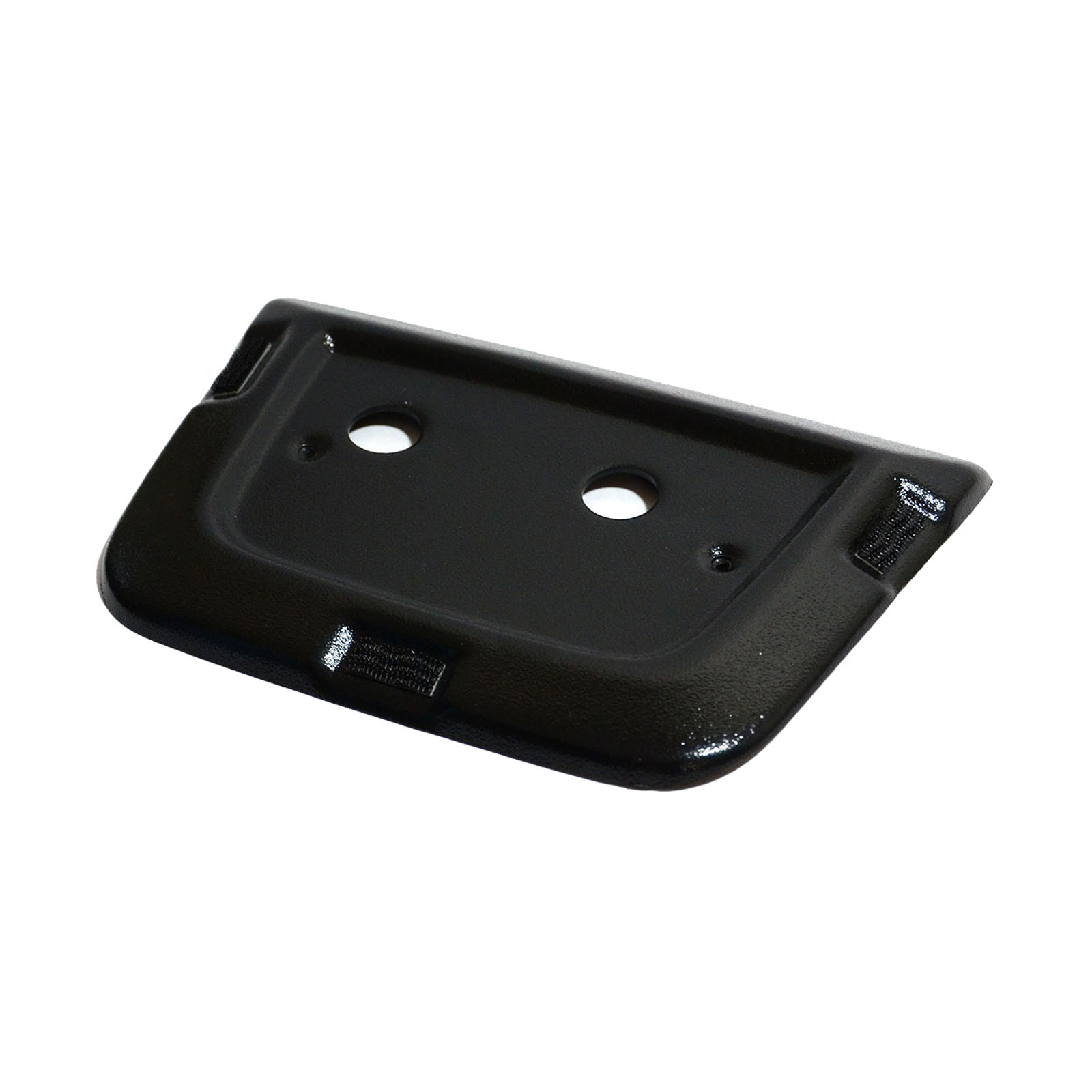

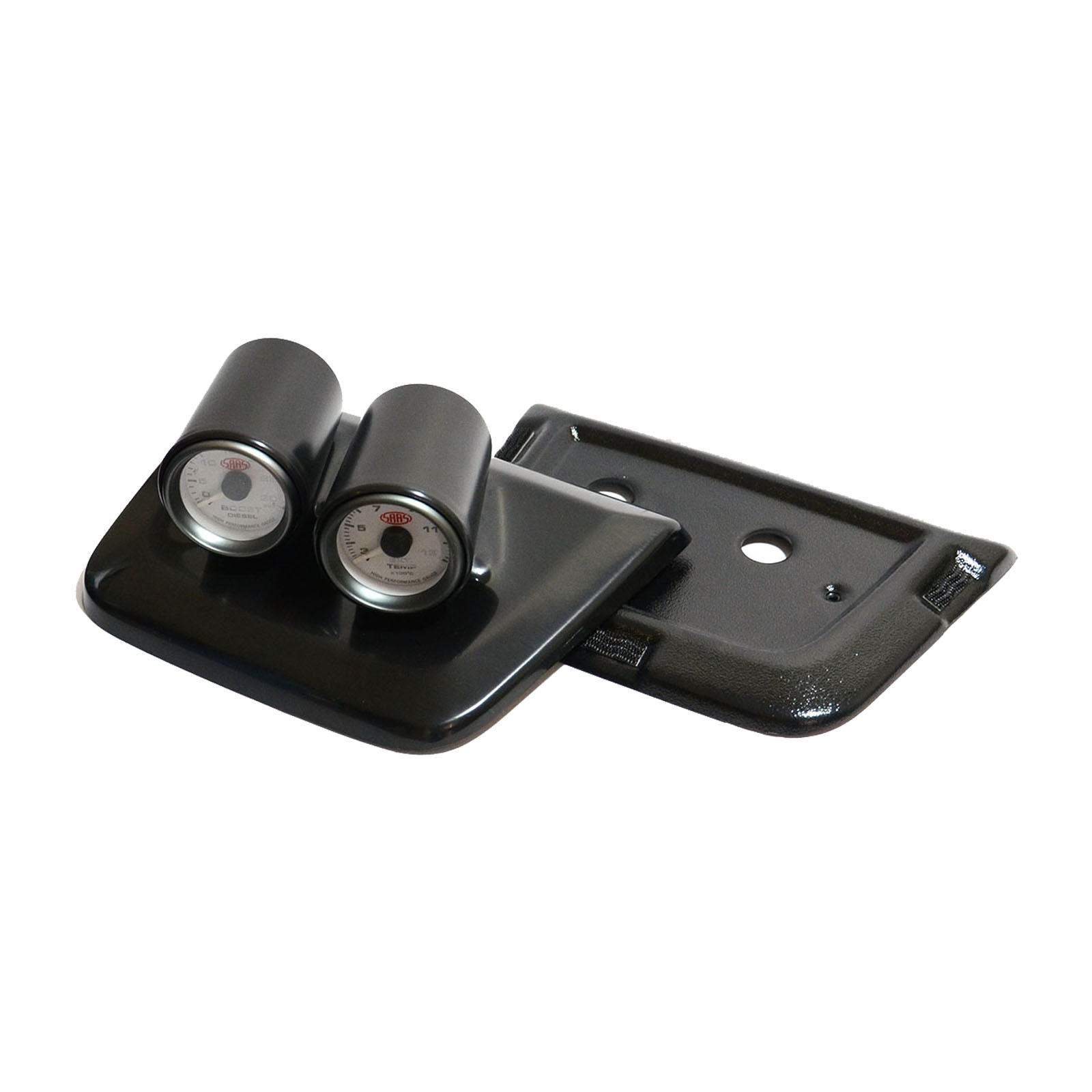

• Unique 2 part "Snap-Fit" mounting system
• No visible screws or clips
• Made from tough paintable ABS plastic
• Low profile design to minimise blind spots
• Paintable to match interior colours
• Detachable cups for easy installation
• Made in Australia

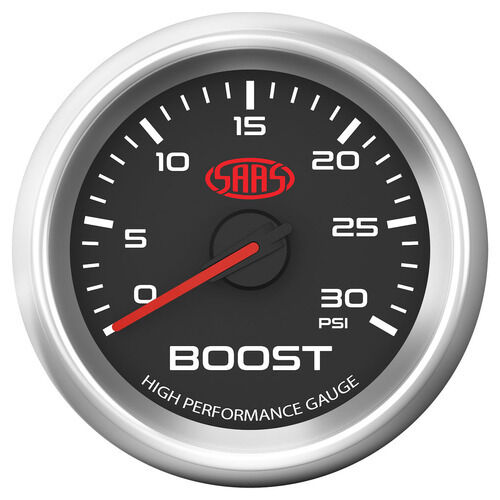

SAAS Boost Gauge Diesel 0-30 PSI 52mm Black Muscle Series 3

A boost gauge is an instrument that is used to show the amount of pressure a turbo charger or super charger is producing. Typically, a turbo or super charger system is designed to give the maximum benefit at a particular amount of boost pressure. By monitoring the boost gauge, you are able to keep the vehicle's engine components in the proper power range to achieve the most performance from your vehicle.

Give our SAAS Diesel Boost gauge a go! Engineered for diesel applications, the boost gauge only shows pressure and not vacuum. Keep an eye on your turbo--and add race car style to your dash--by installing your own SAAS boost gauge. For petrol engines please refer to our Boost/Vac gauges.

Features:

Gauge Diameter: 52mm/2"
Gauge Operating Range: 0-30psi
Polished Bezel Surround
Rear set colour change button

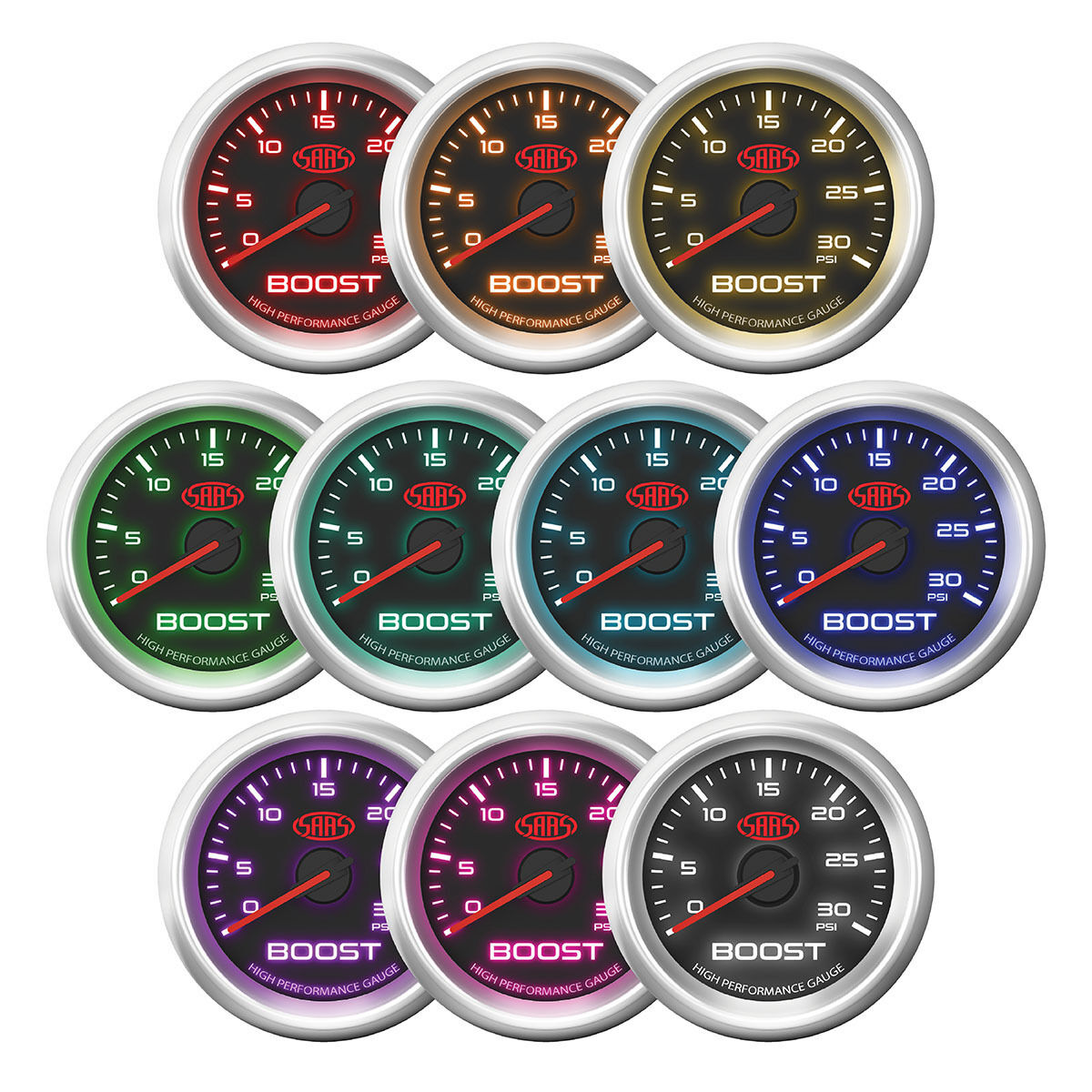

10 Colour Backlight options: Red, Red amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White

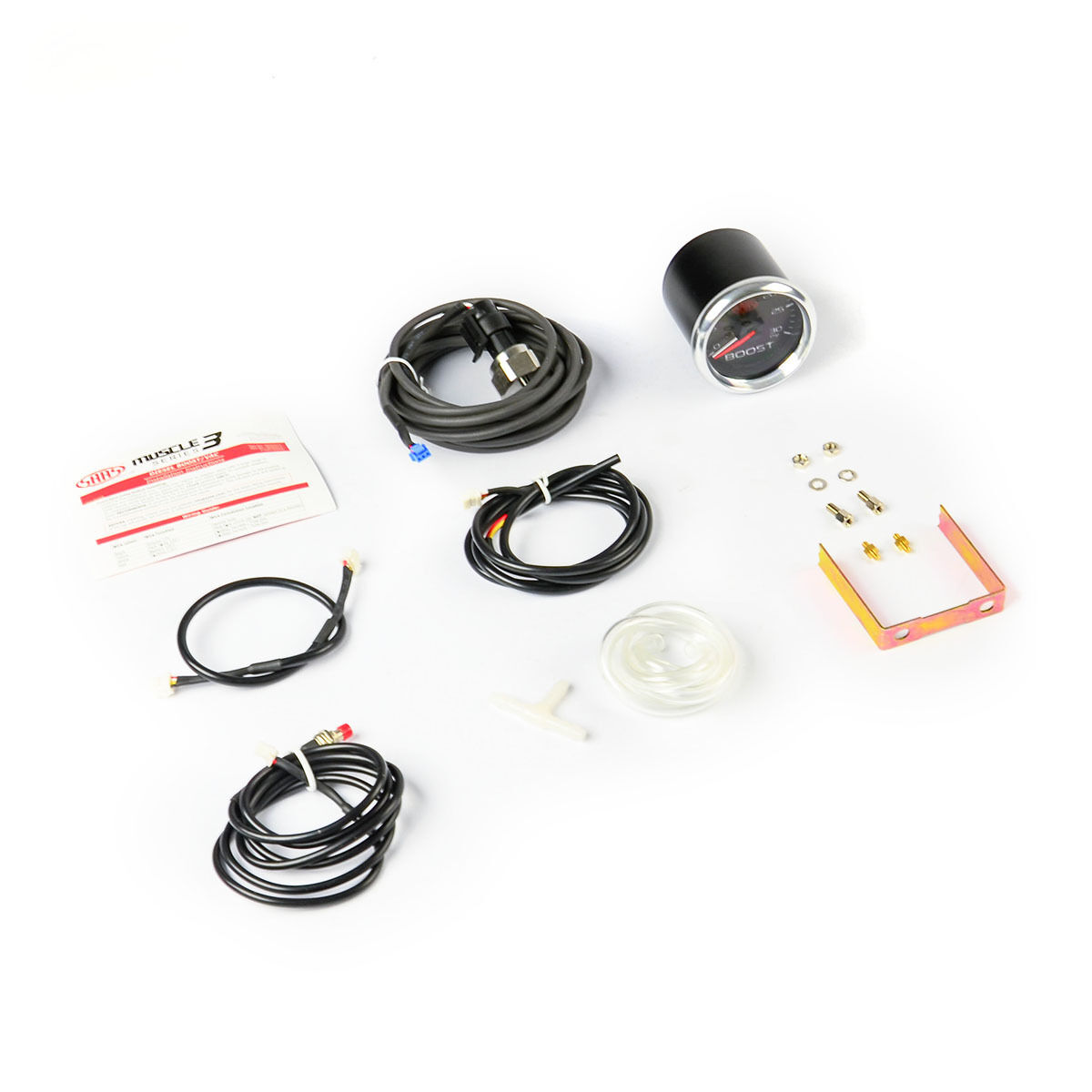

Includes all mounting hardware, bracket and sender
5 levels day / night dimming function
User pre-set warning functions
Advanced stepper motor technology

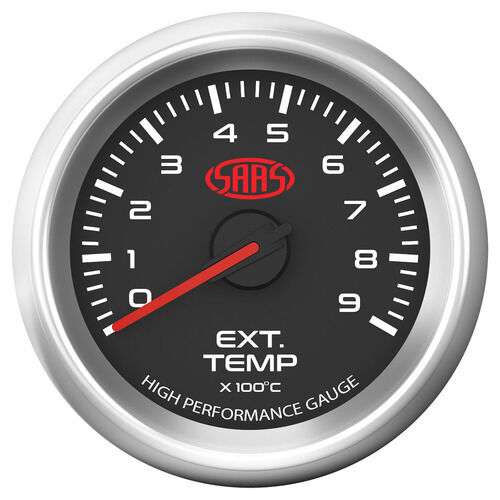

SAAS Exhaust Temp Gauge 0°-900° 52mm Black Muscle Series 3

Monitor your vehicle's exhaust gas temperature and be on the alert for possible overheating or other potential engine issues. Designed to measure high temperatures beyond those of a normal temperature gauge, our Muscle series EGT gauges feature a thermocoupled sensor that can be placed into an appropriate temperature source such as the exhaust manifold.

These gauges become an essential tool in checking for imbalanced air/fuel ratios which can be influenced by restricted air filtration systems, altitude, load, ambient temperature and so on. Modify your driving (when towing for example) before excessive temperature builds.

Features:

Gauge Diameter: 52mm/2"
Gauge Operating Range: 0°-900°
Polished Bezel Surround
Rear set colour change button

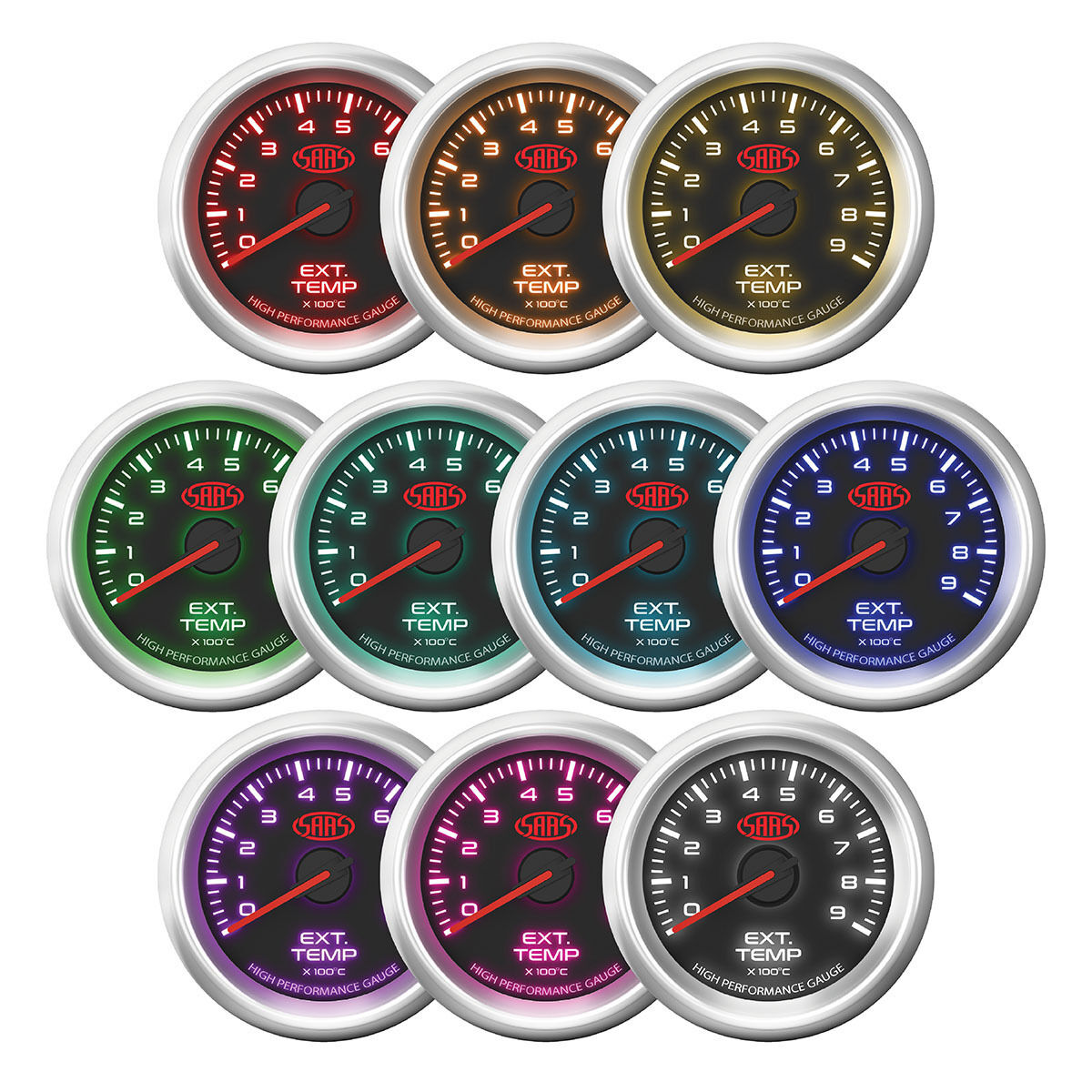

10 Colour Backlight options: Red, Red amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White
Includes all mounting hardware, bracket and sender
5 levels day / night dimming function
User pre-set warning functions
Advanced stepper motor technology

Depending on your gauge location, you may need to purchase an exhaust temp probe extension so as to avoid undue tension on the lead. This is particularly so with gauges mounted in Pillar Pods. You may also need to supply a weld on bung to allow mounting of the probe - use our SGA1001 Exhaust Temp Sender Bung (link in Spares/Specs below)
