Silicone Intercooler Pipe Hot Side Top for Toyota Hilux 2.4L 2.8L 1GD 2GD

 SAAS Silicone Intercooler Pipe Hot Side Top

for Toyota Hilux 2.4L 2.8L 1GD 2GD

SSH1103

SUITS:

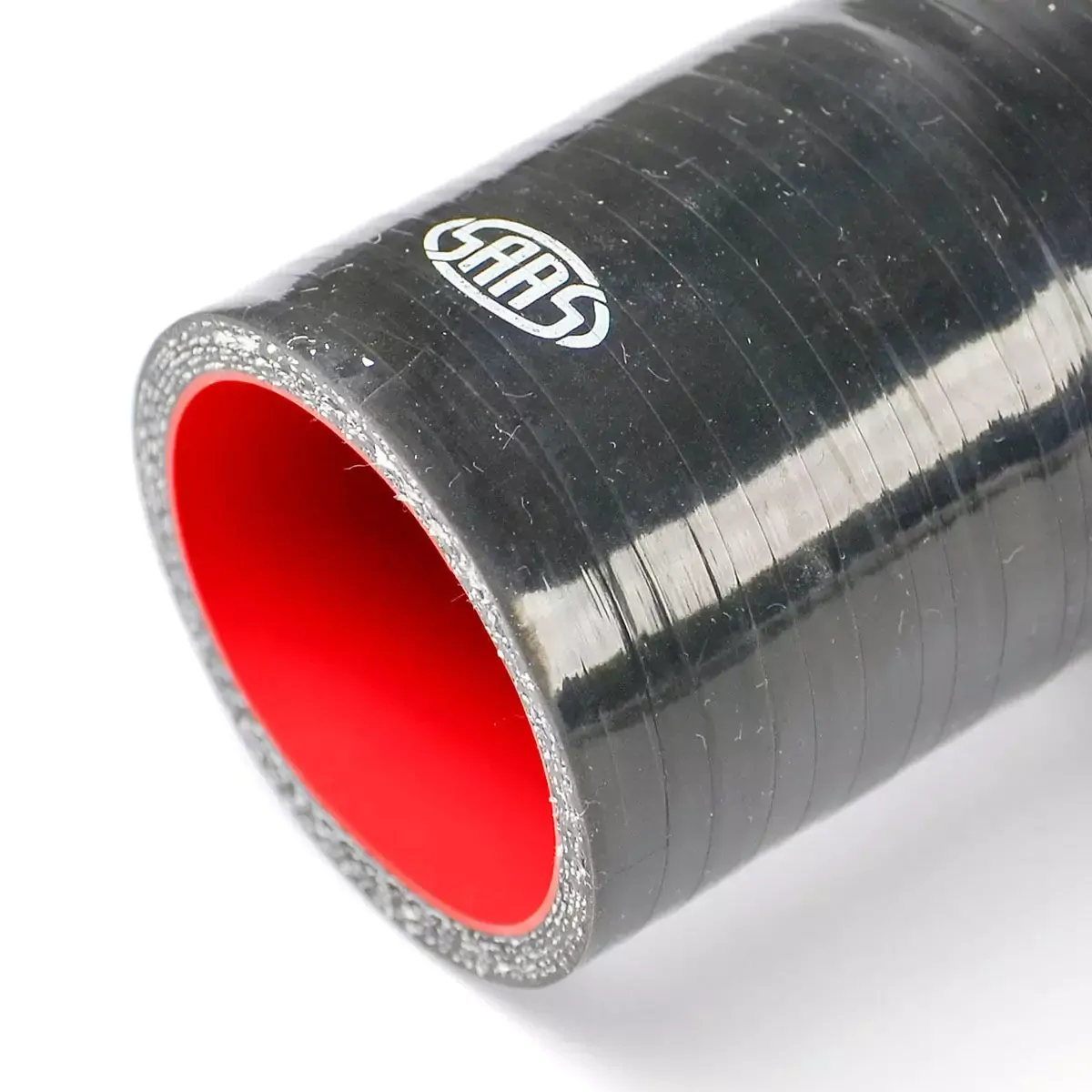

• Smooth Form 5 Ply polyester reinforced silicone moulded to factory shape
• ID 1: 48mm
• ID 2: 48mm
• Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products
• Stable operating temp from -50°C to +200°C
• 4:1 burst pressures at safe working loads
• Black finish to retain that OE look

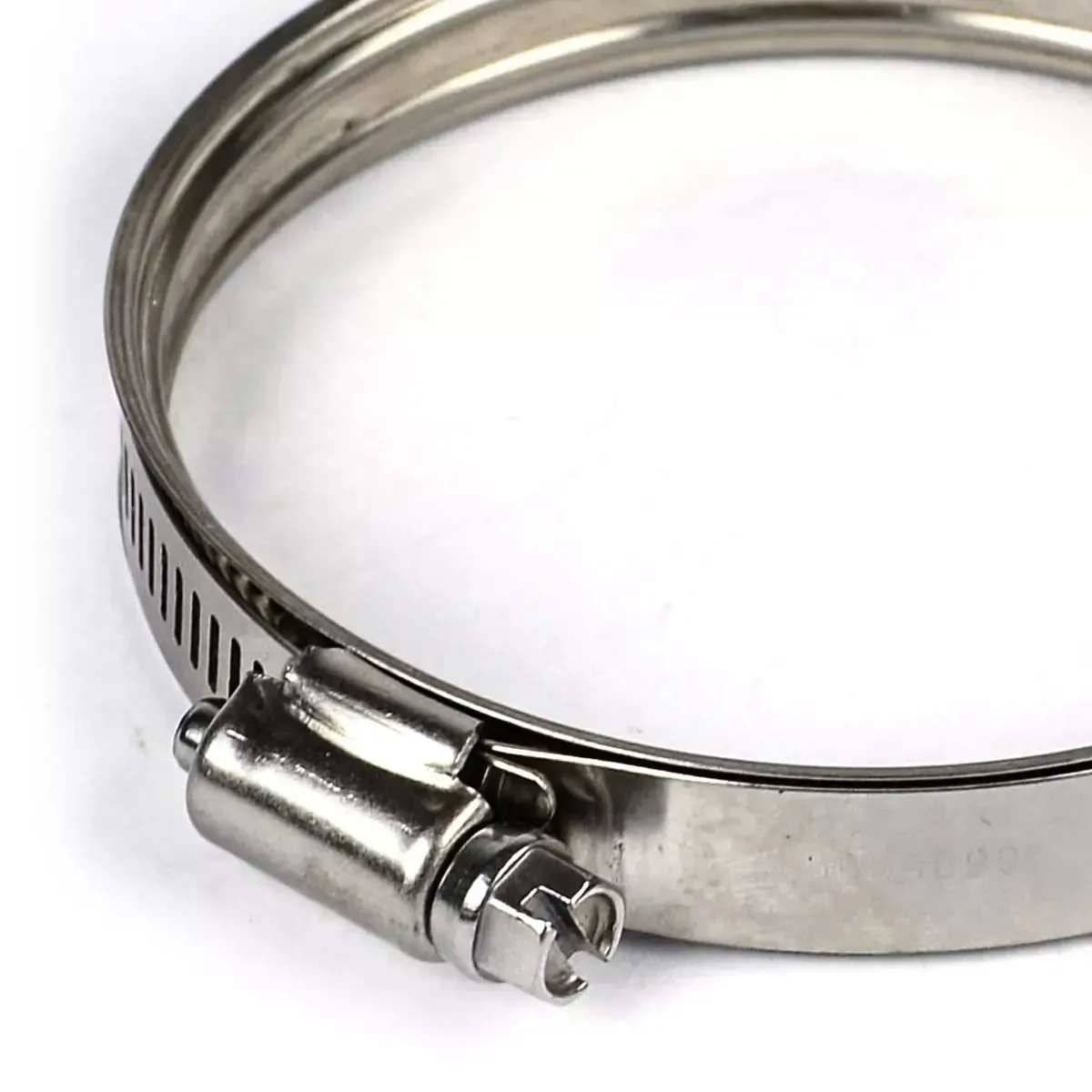

• Stainless Dual Bead Hose Clamps included

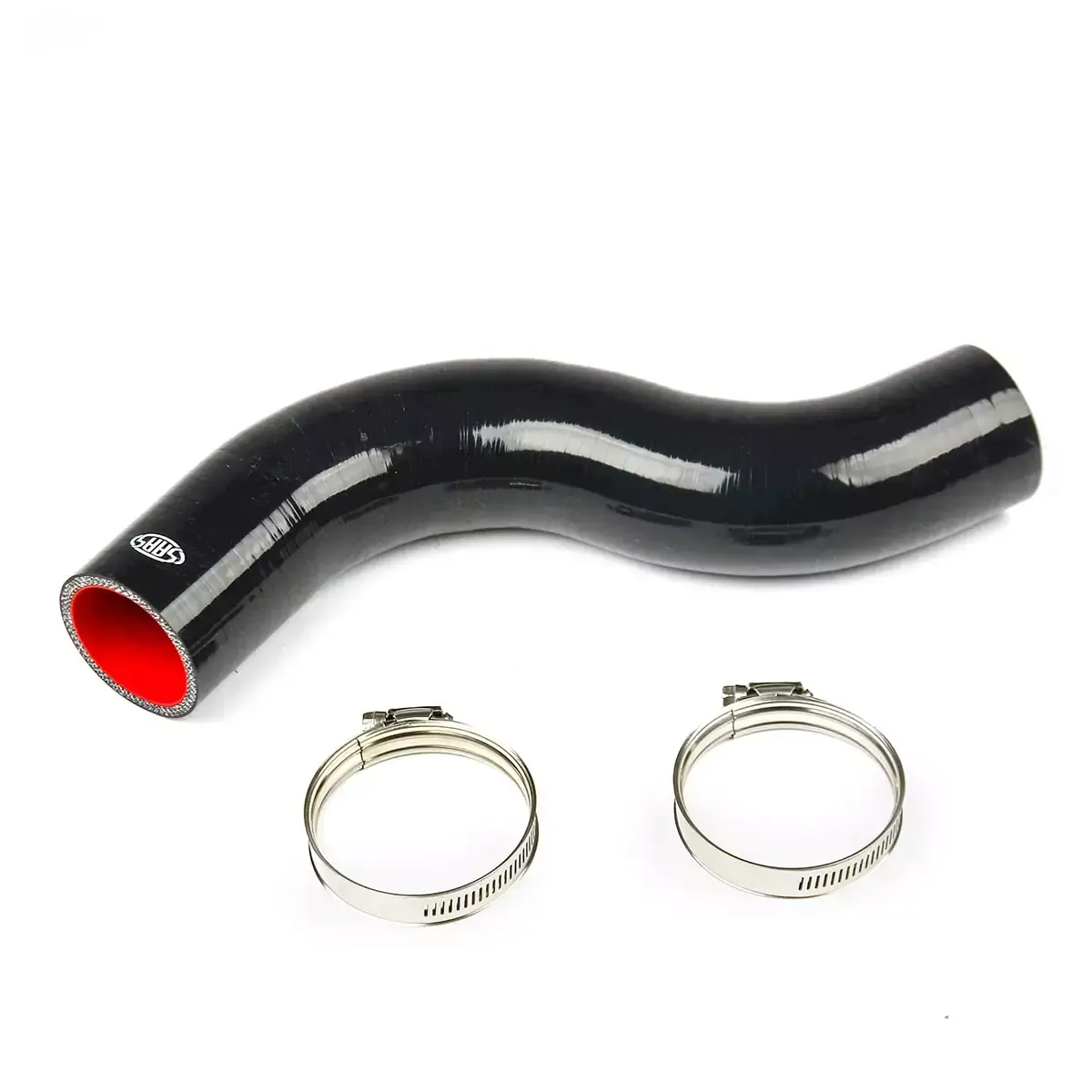

Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses

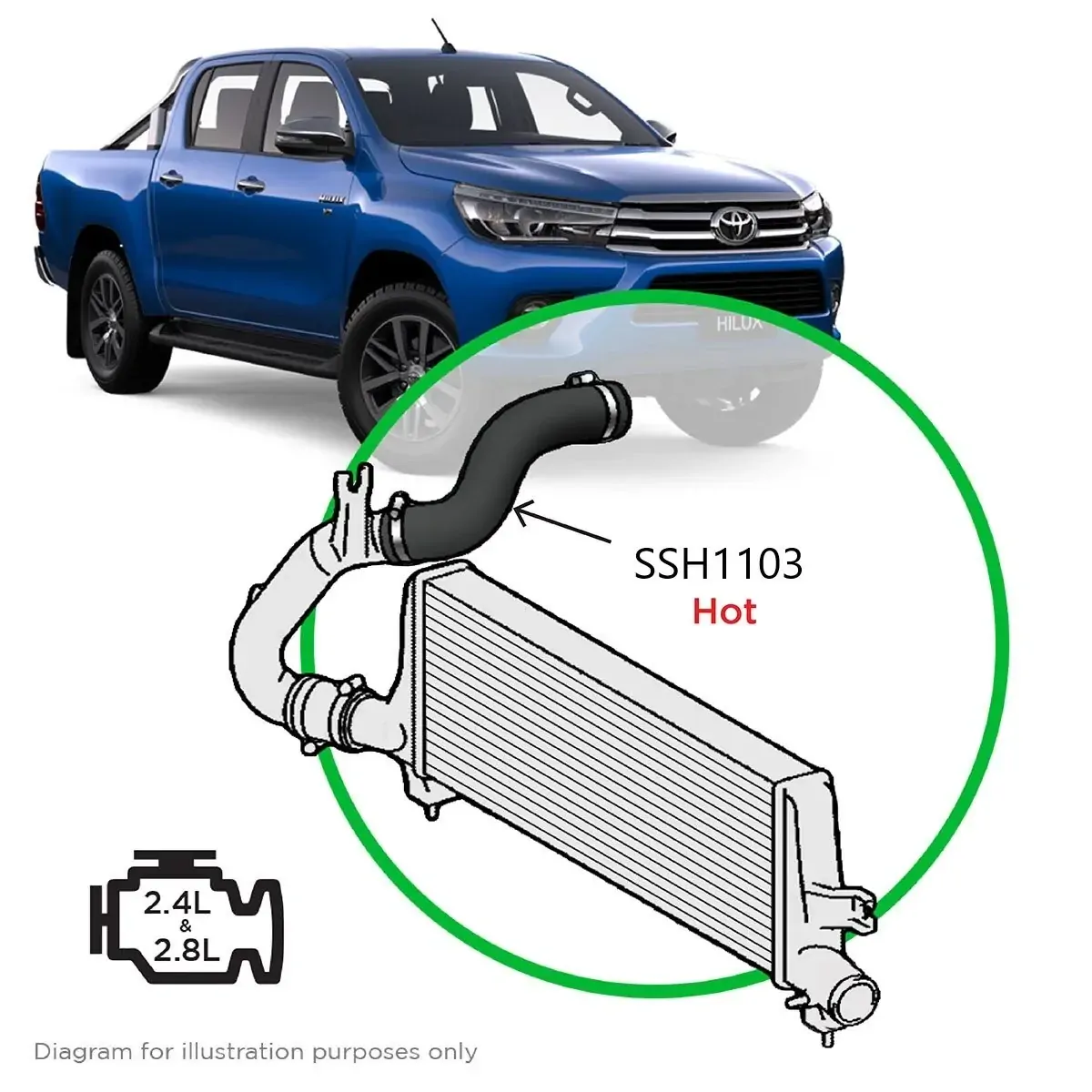

The SAAS SSH1103 is designed to replace the top factory hot side hose pipe with an upgraded flurosilicone coated silicone hose. Our multi-ply hose kits are supplied with stainless dual bead hose clamps and provide a secure solution and reduce the possibility of hose failure. Leaking, swollen or split intercooler hoses can lead to a loss of power.

FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry

Fitting Notes:

SAAS Silicone Intercooler Hoses are designed to be more robust than the OE style of rubber hose. The multi-ply design may require warming to fit over pipe flanges and should be installed with the provided hose clamps to ensure a secure seal.
