SAAS 4WD Alloy Adaptor Sandwich Plate Oil Pressure Gauge M24 FJ80 HDJ80

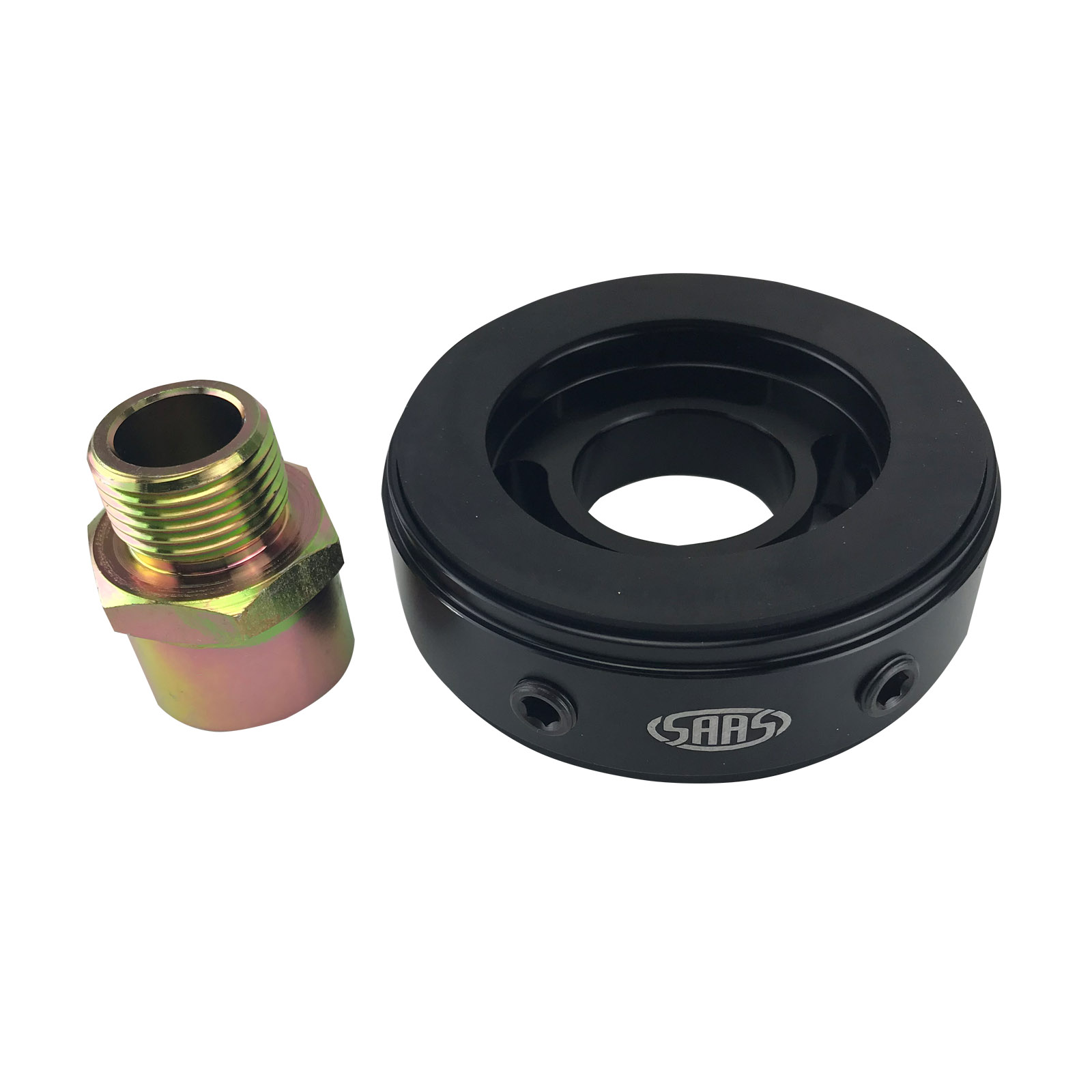

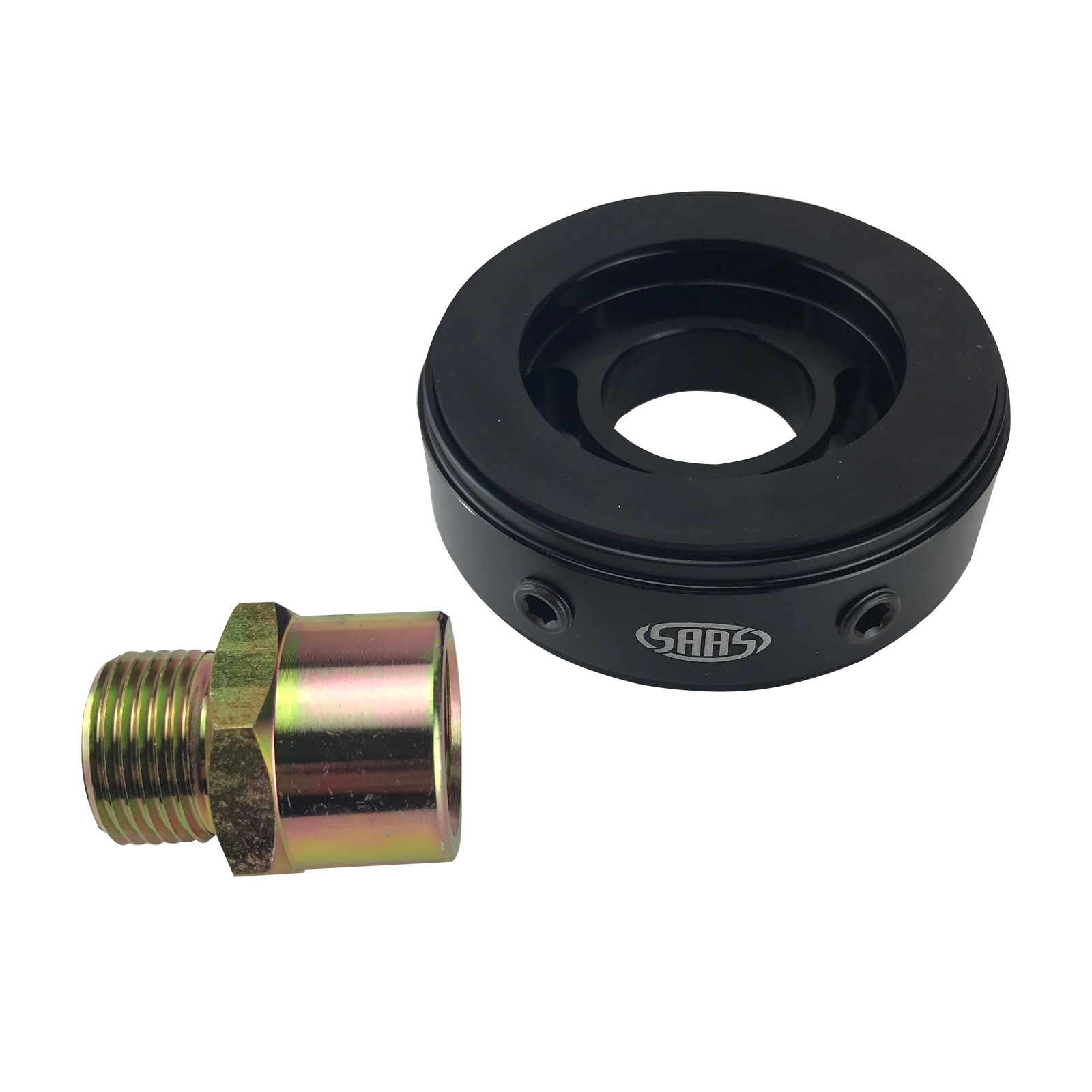

SAAS Oil Adaptor Plate with 24 x 1.5mm Adaptor
Suits 4WDs
Billet Alloy Black


* NB - this adaptor is NOT suitable for Toyota 1HZ / 1HD-T / 1KD / 1KZ-TE engines due to the increased length of the standard oil filter/pump threaded bolt

• Oil Adaptor Sandwich Plate Designed To Be Used With Oil Pressure and Oil Temperature Gauges

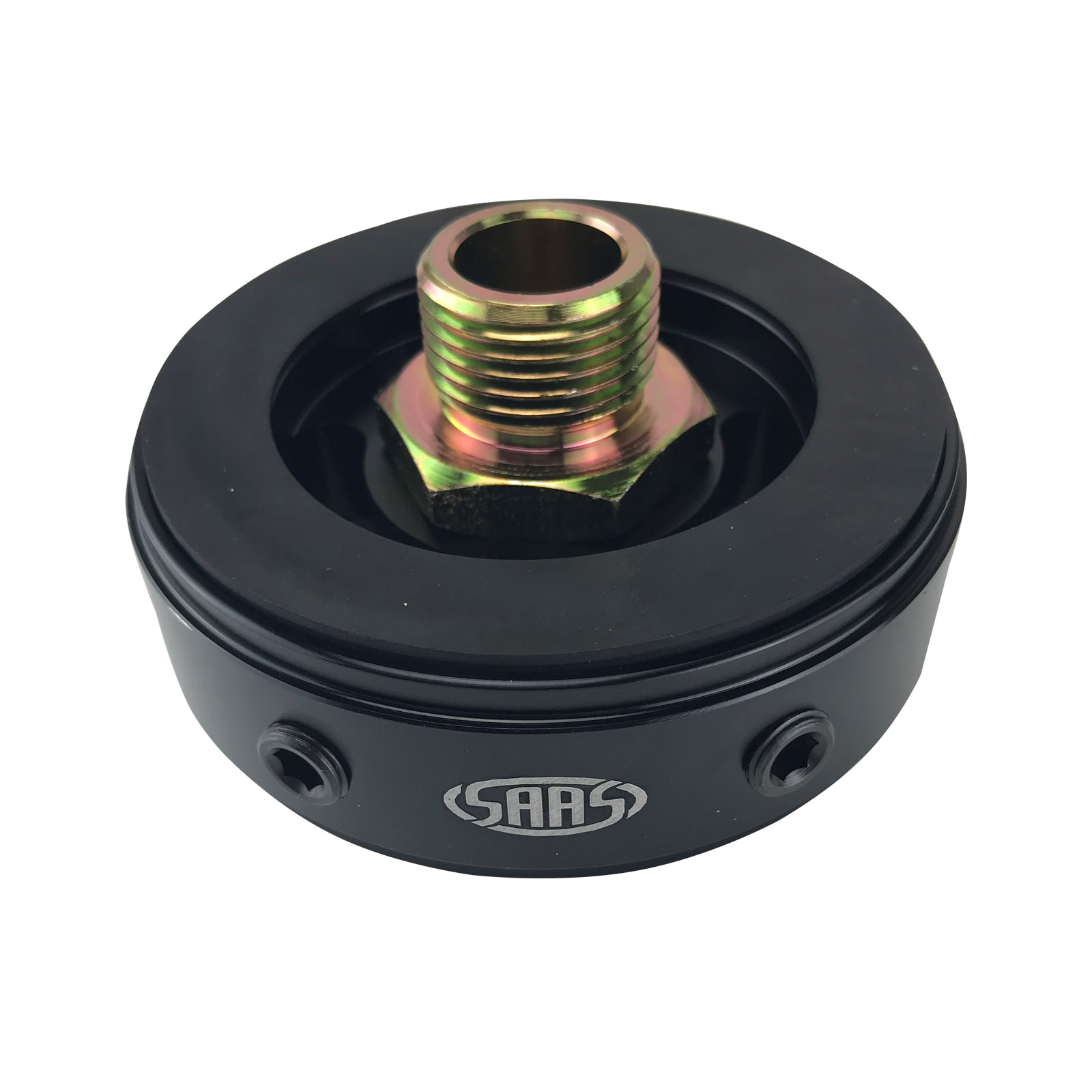

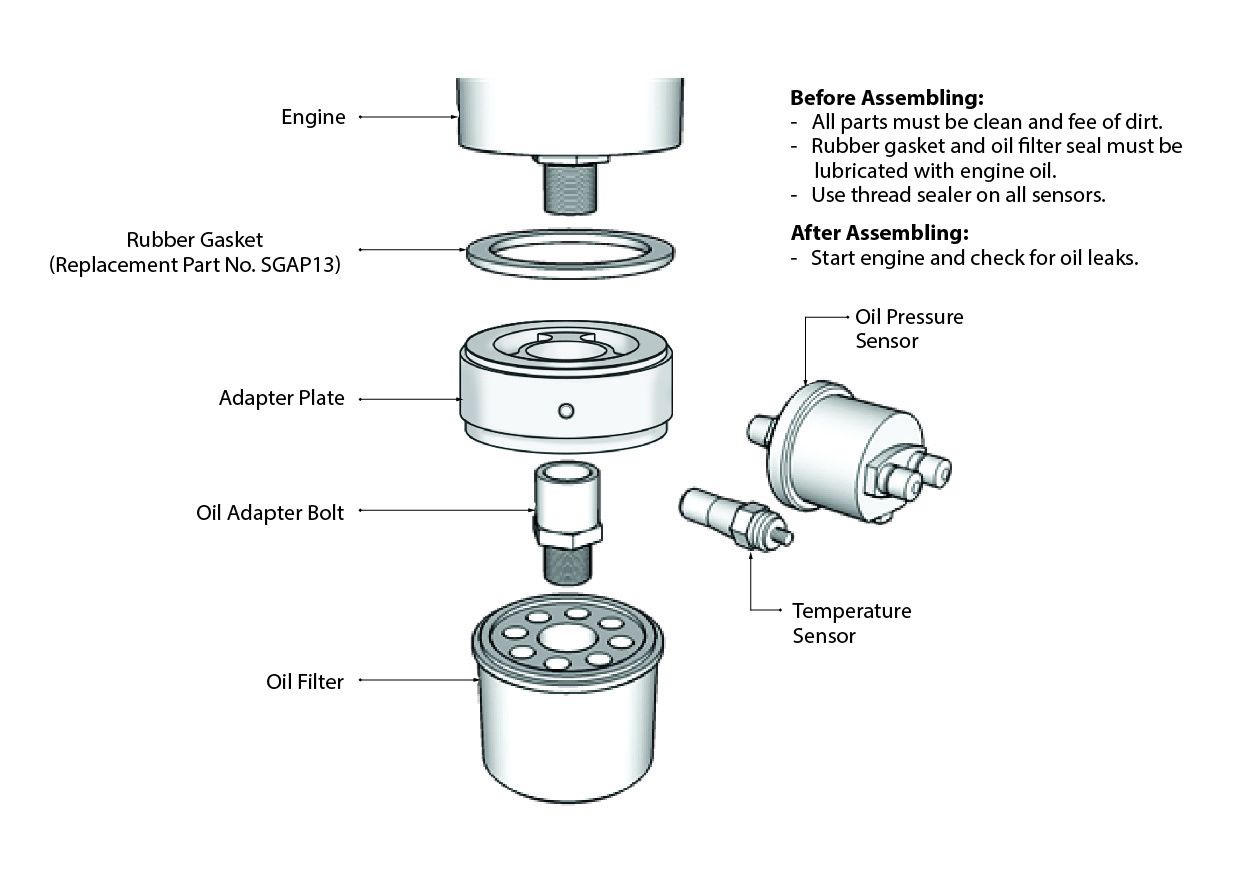

• The sandwich plate fits between your engine block and your oil filter. Unscrew oil filter, screw on tight the centre adaptor extension. Place plate in location, and reinstall oil filter.
• Suitable For Electrical Gauges Only
• High-Quality Aluminium
• Two 1/8 NPT holes to connect senders for Oil gauges

Appropriate Vehicle Specific Adaptor Required For Installation

Part Number	Thread Size	Common Filters using that thread size
SFF2415	24 - 1.5mm	OF334
SFF2615	26 - 1.5mm	OF600, OF372 & OF402
SFF3015	30 - 1.5mm	OF161X
SFF112	1 1/2 inch	OF416, OF149 & OF186



Specifications:

• Outside Diameter: 93mm
• Height: 30mm
• Seal  Inside Diameter: 60mm
• Seal Outside Diameter: 86mm
