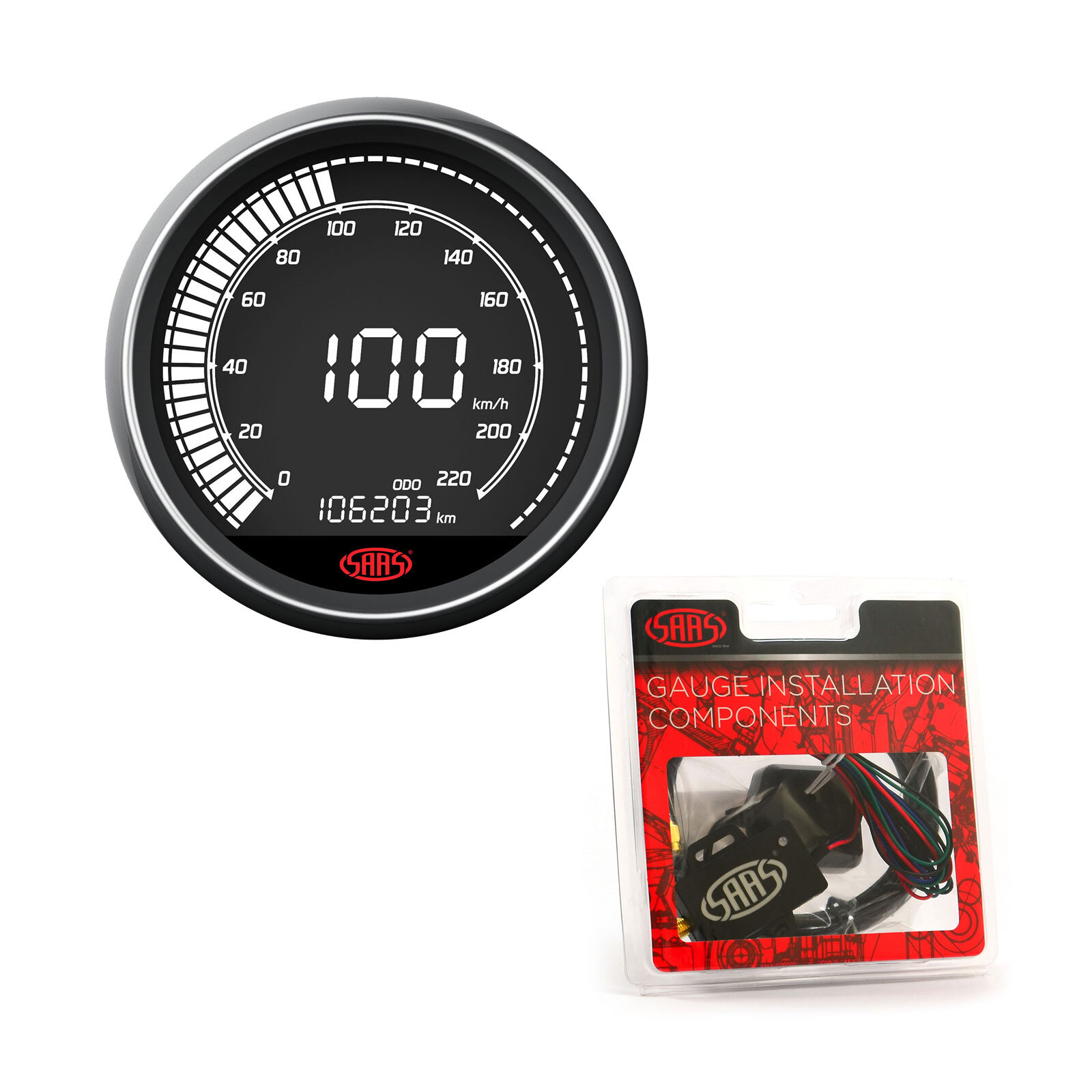

SAAS GPS Unit - Speedometer 0-220 KPH 80mm 3 1/8" In Dash Muscle Digital Series

SAAS GPS Unit - Speedometer 0-220 KPH 80mm 3 1/8" In Dash Muscle Digital Series

SG41263-SG31650

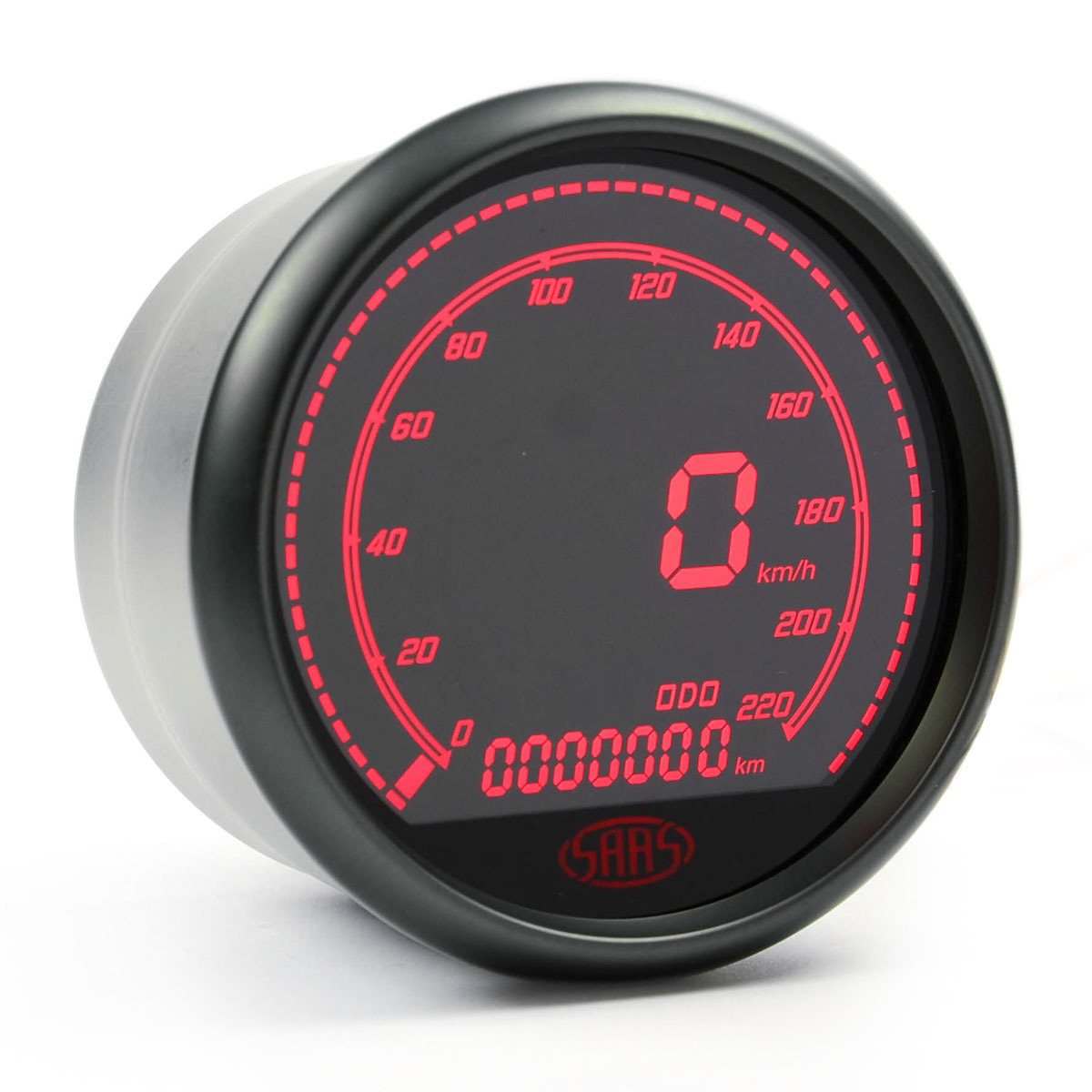

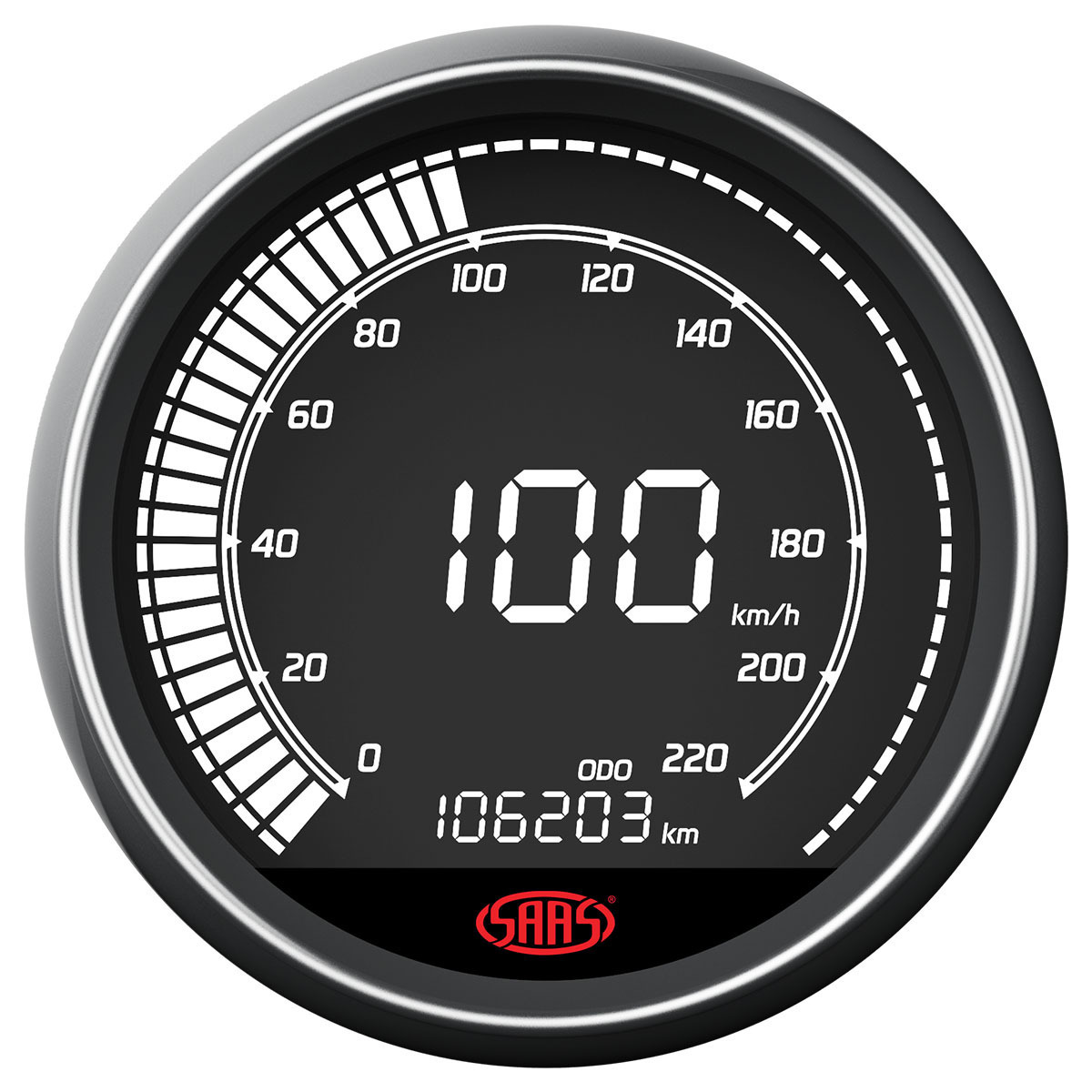

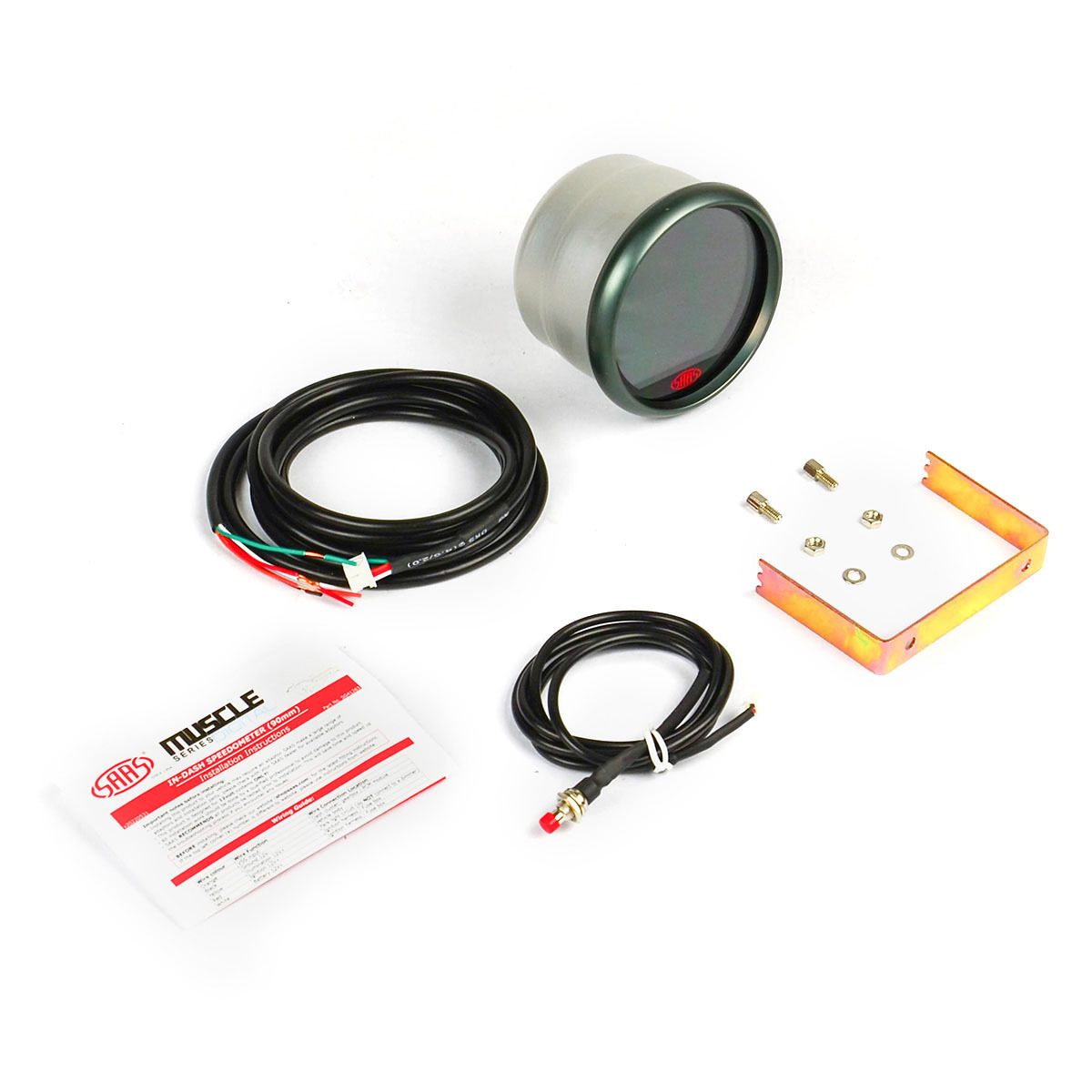

SAAS Speedometer 0-220 KPH 80mm (3 1/8") In Dash Muscle Digital Series

SG41263

Presenting the latest in SAAS Muscle Series Digital Gauges - our full featured 0-220 KPH Digital Speedometer designed for in-dash installation. The new for 2022 SAAS Muscle Digital Series gauges give you digital readings with the added advantage of dimmable backlighting. No moving components allows for a vibration proof environment making these gauges ideal for 4WD, offroad and performance applications.

FAQ'S:

My vehicle doesn't come with a hall effect sender - what sender will I need?
SAAS provides a GPS speed sender for this situation. The GPS sender is more accurate than a mechanical sender and even has "fall-back" capacity for tunnels etc. You may need to check with your local authorities regarding using a GPS signal source as a sole source for speed.

Features:

• 80mm Body OD / 89mm Bezel OD
• Separate TRIP (A) and TRIP (B) Odometer
• Maximum (Peak) Speed Recall
• Built-In Adjustable Speed Alert
• Read Speed in either KPH or MPH
• Transfer your vehicle's original odometer reading onto the digital display
• Multi-Vehicle Pulse Rate Selector input that works with all electronic speed generators (optional parts may be required for cable driven speedometers).
• OLED Multifunction Display window shows all user functions and setup functions

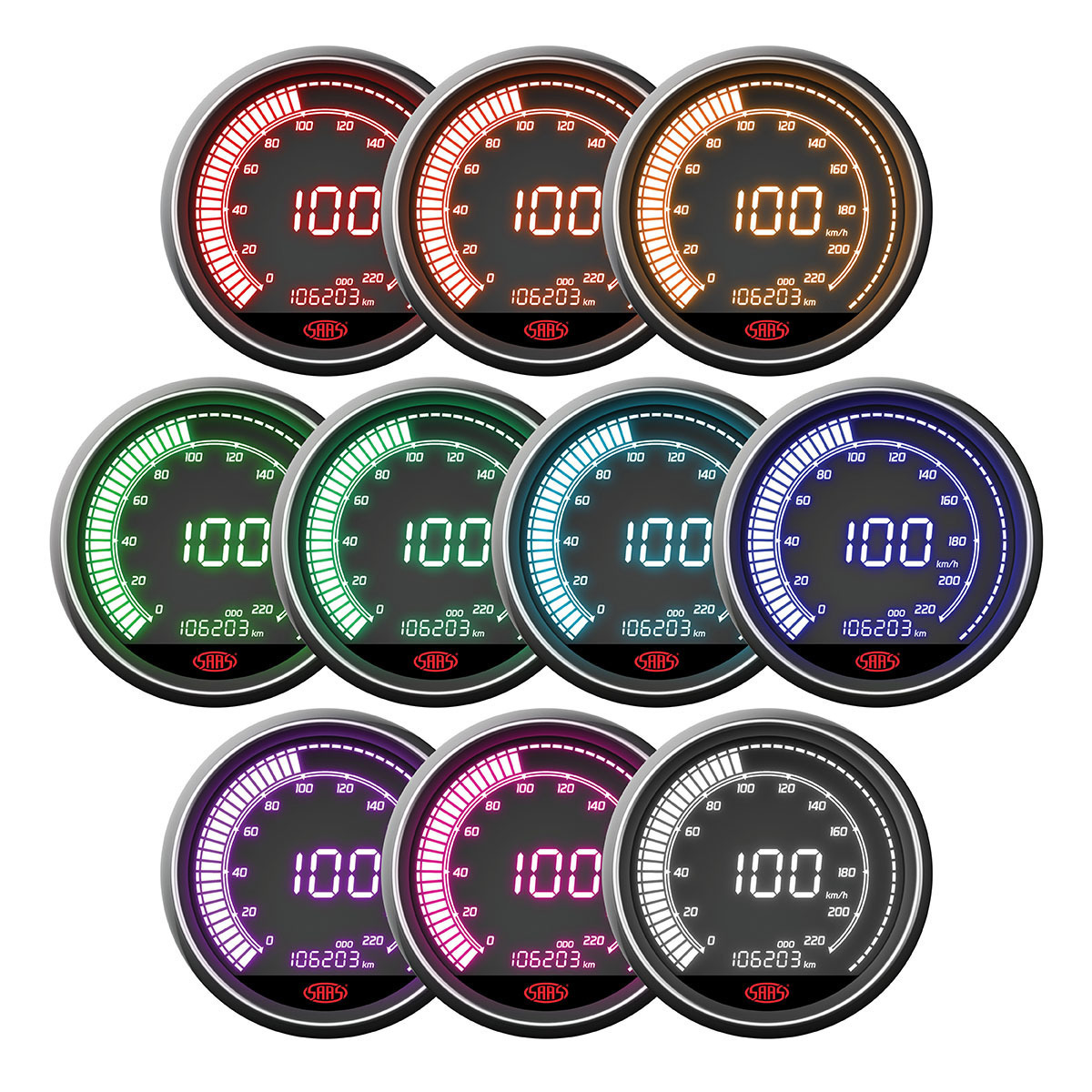

• Advanced 10 Colour LED Lighting with 5 levels of dimming for day and night mode (accessed via a remote switch)

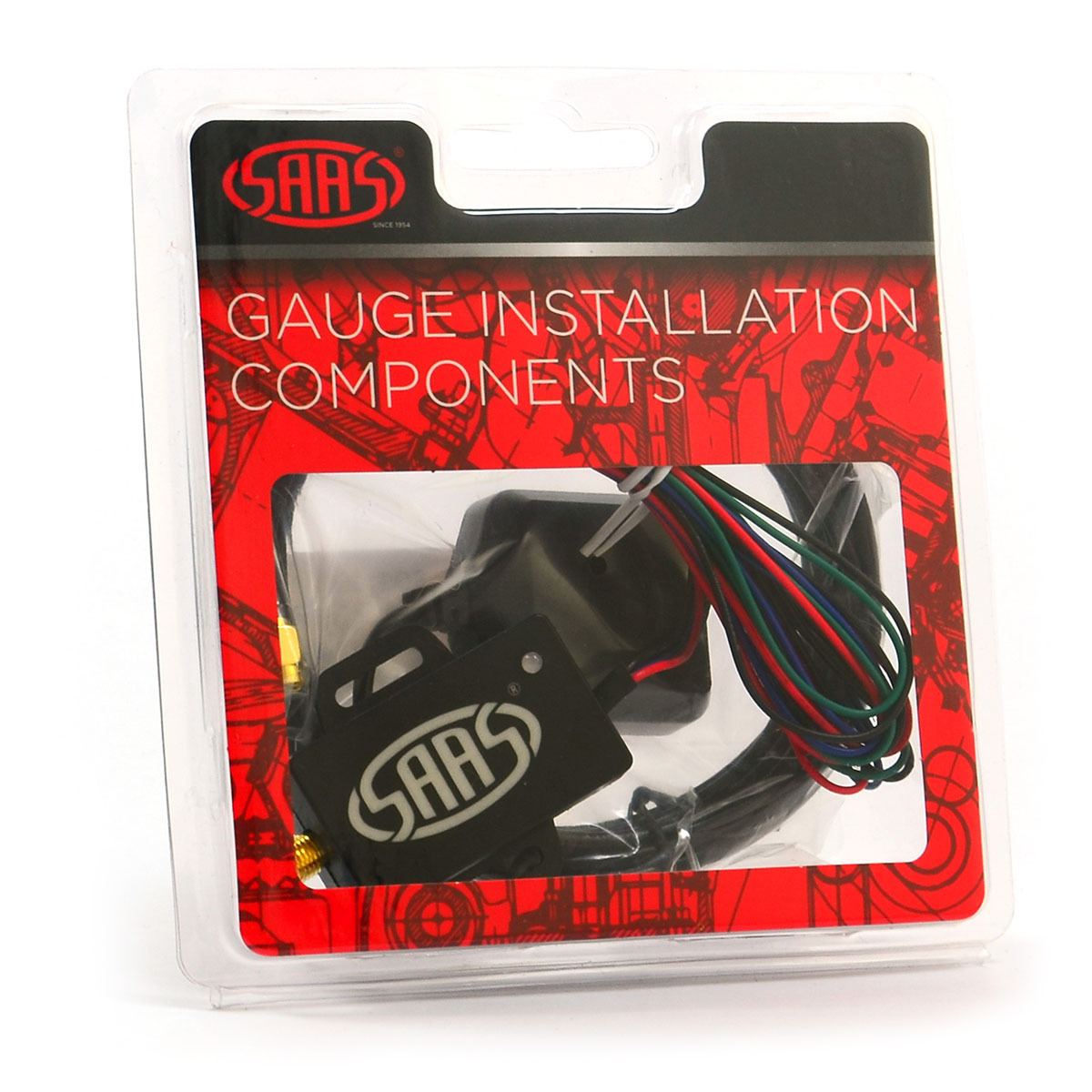

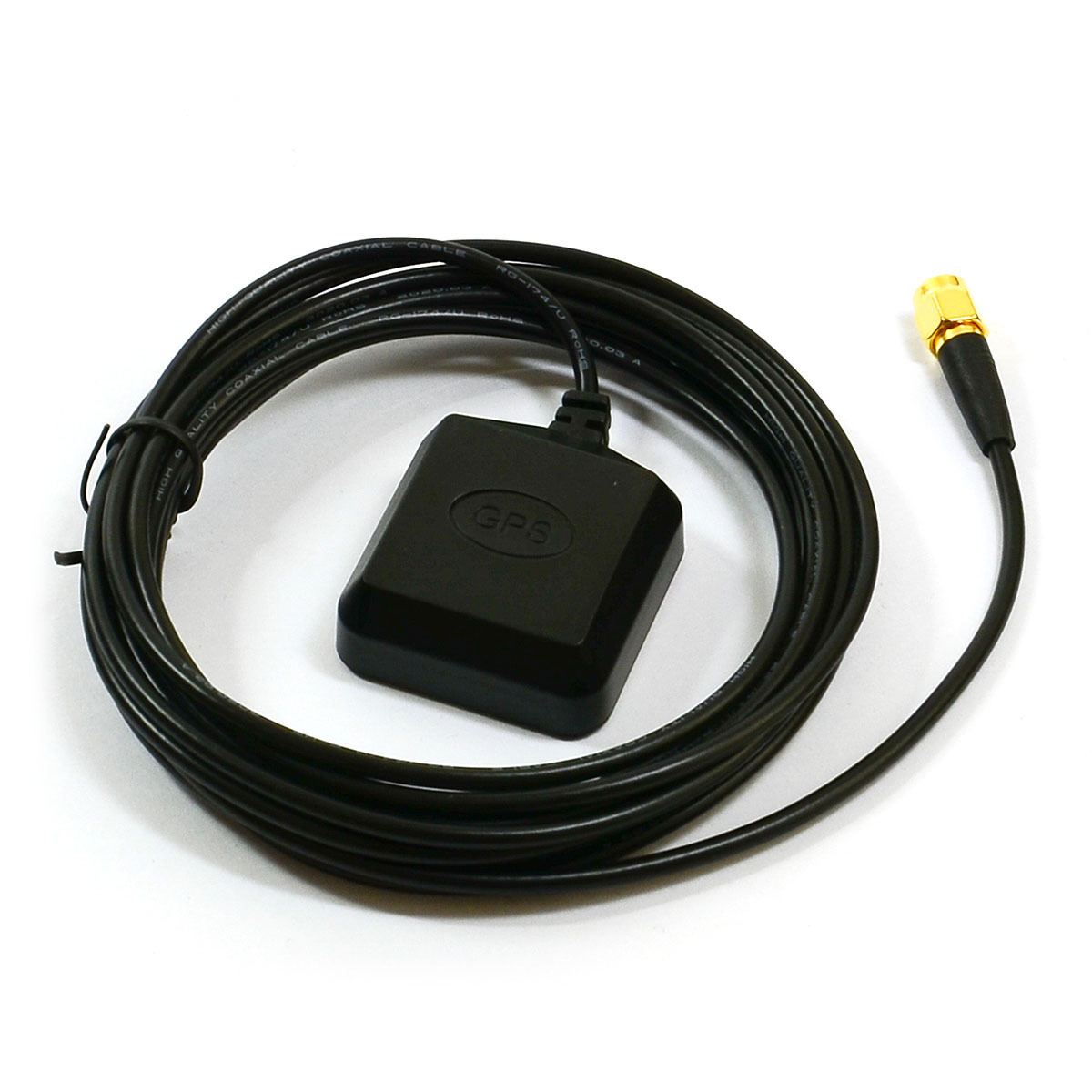

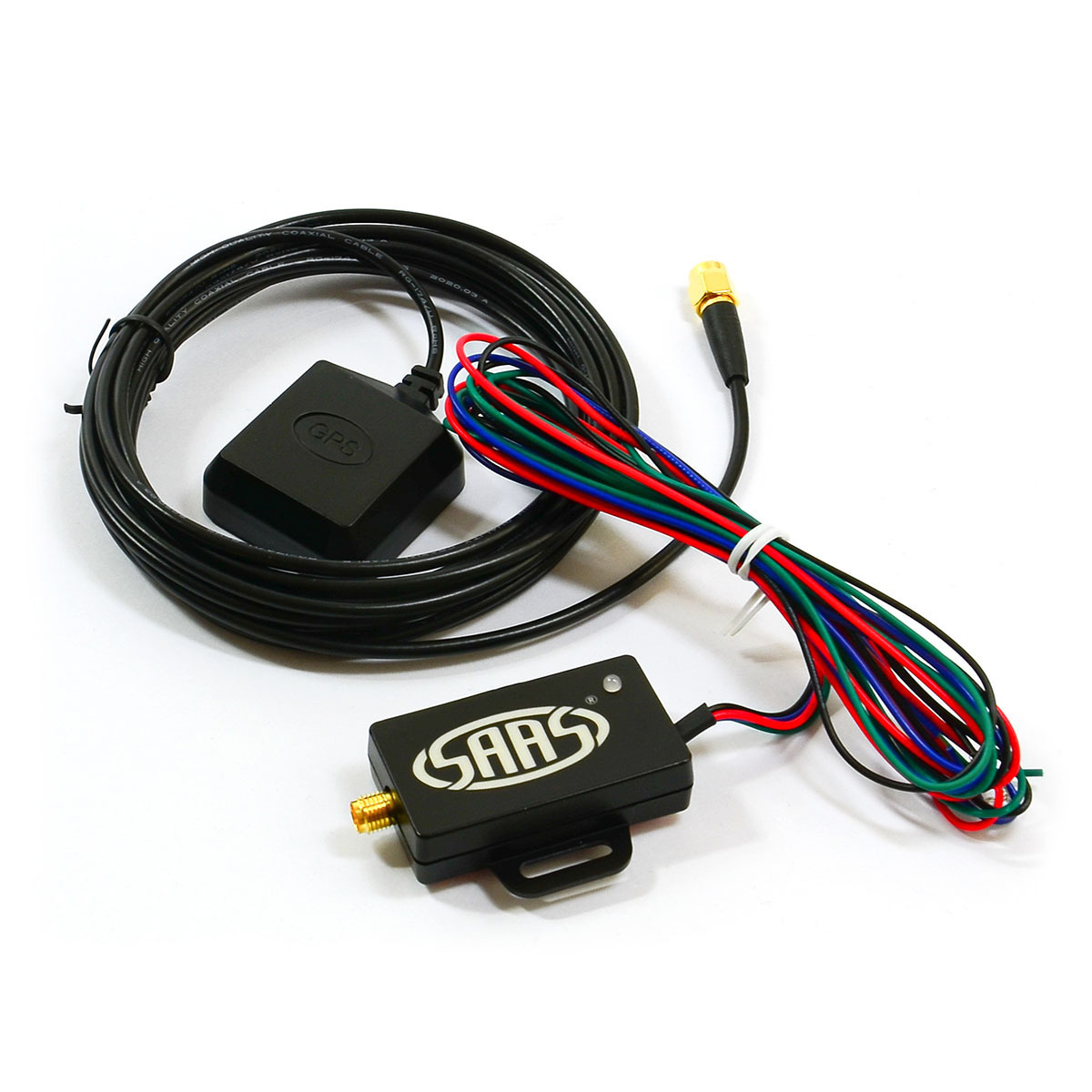

SAAS Speedometer GPS Sensor and Antenna

SG31650

The perfect companion to our in-dash electronic Speedometer, our SG31650 Universal GPS Speed Sender can actually mate to any Speedometer, Odometer or Tachograph that requires an accurate speed signal (pulse) where there is the absence of a traditional VSS.

If you have an older vehicle that does not have a Vehicle Speed Sender (sometimes also known as hall effect), then it can be both difficult and expensive to find a suitable solution. The SAAS GPS Sender provides a calibration free unit which uses data received from the Global Positioning Satellite network. It calculates 3 dimensional ground speed and provides a pulsed output with a high degree of accuracy. You may need to check with your local authorities regarding using a GPS signal source as a sole source for speed.

Cable Assignment:

• RED: Power + DC8~32V (may require resistor in higher V installs)
• BLACK: Ground/Earth
• GREEN: Speed Pulse Signal +'ve output
• BLUE: Speed Pulse Signal -'ve output

Features:

• Direct match to our in-dash speedometers
• Super fast and easy install (when mated to SAAS Speedometers)
• High Accuracy with 0.2% deviation (cable drive speedos are typically 3-5%)
  • Velocity < 0.06m/sec (~ 0.22 kph)
  • Altitude to within 10m
  • Horizontal to within 5m
• Anti GPS Drift technology
• Shockproof and circuit protected
• Pulse compensation for when driving through tunnels (5000 pulses per km)
• Low current draw
• Fast satellite acquisition time
  • First time setup < 60sec
  • Temporary power loss < 13 sec
  • Loss of satellite lock < 2sec
