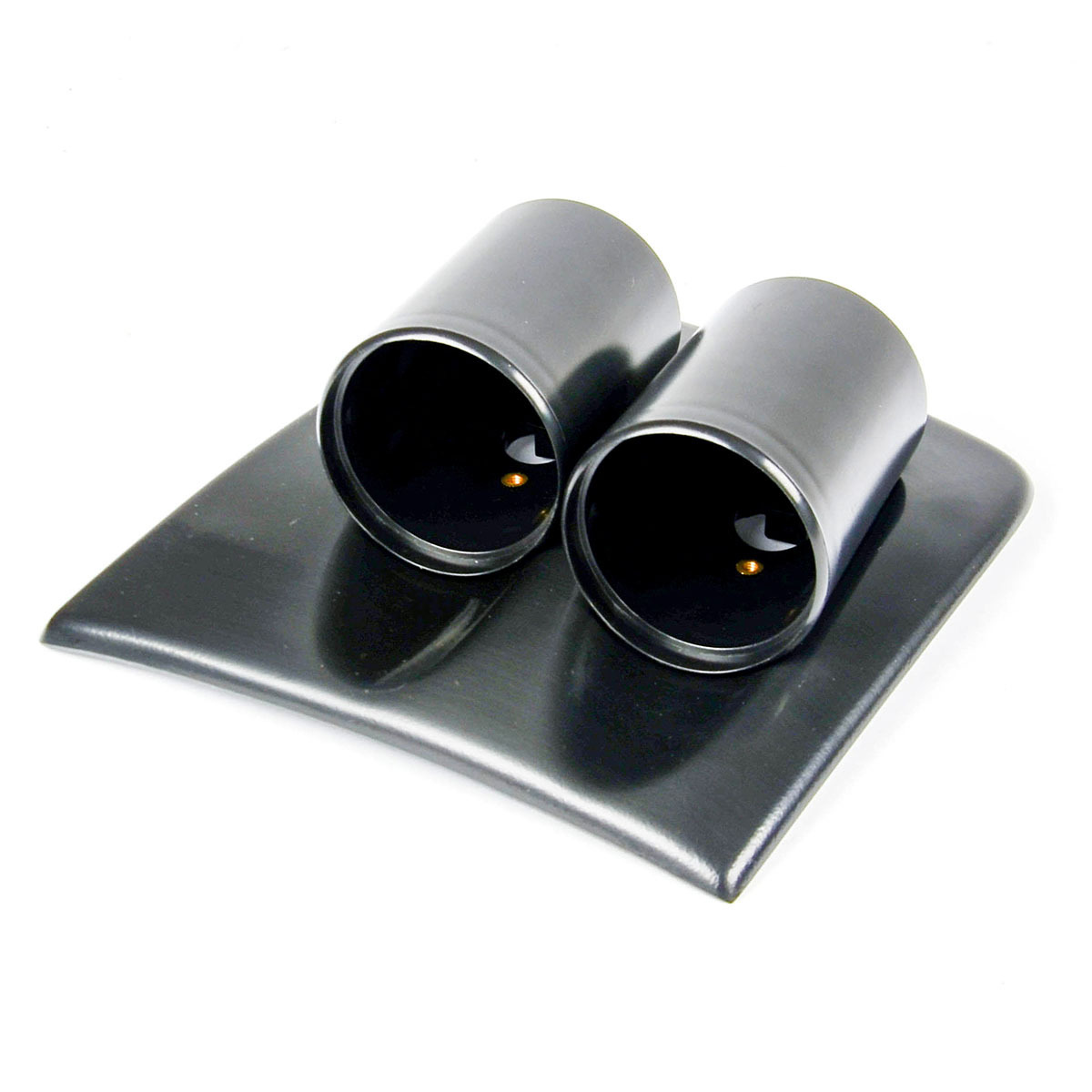

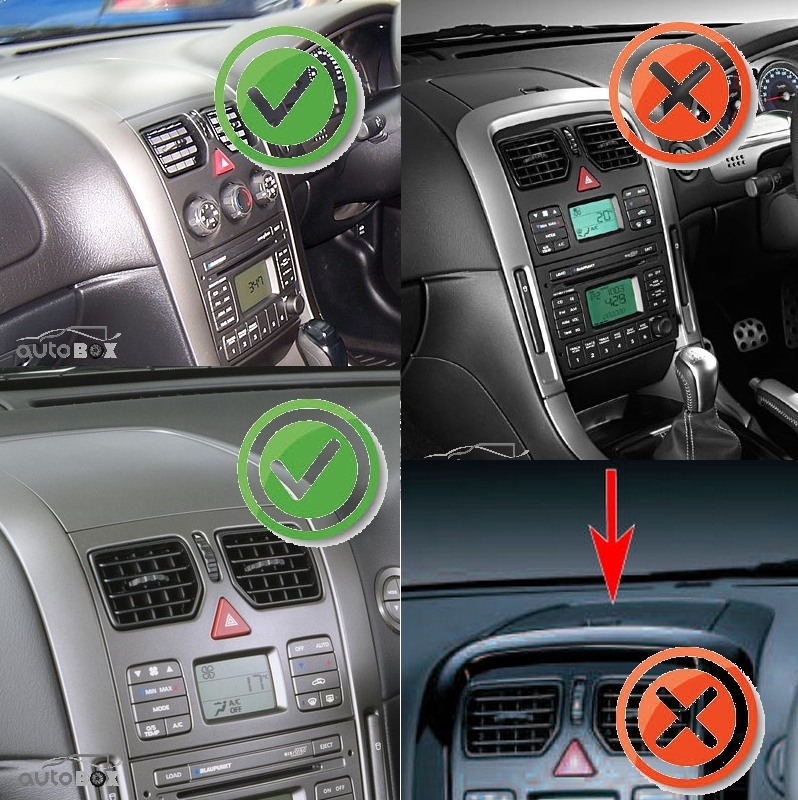

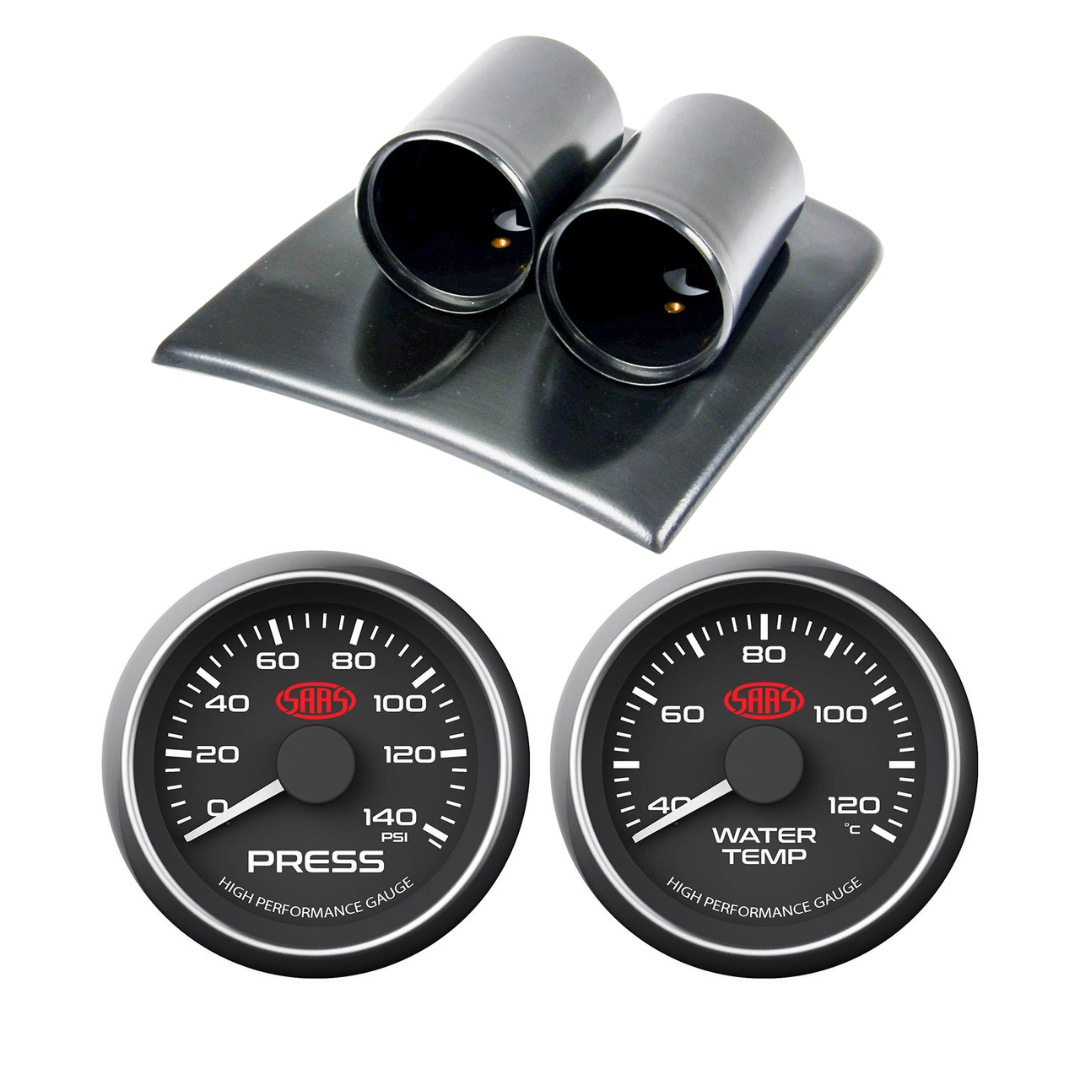

SAAS Dash Pod Black Series Oil Pres Water Temp for VY VZ Commodore

SAAS Dash Pod w/ Oil Pres Water Temp Black Series for VY VZ Commodore

SGP5108-SGOP52B-SGWT52B

SGP5108

• OE factory look.
• Made in Australia using tough and UV Resistant ABS plastic
  • Hot Tip! - We always recommend using a windsreen sunshade when parked in hot conditions to protect both your pod and gauges
• Paintable to match vehicle interior

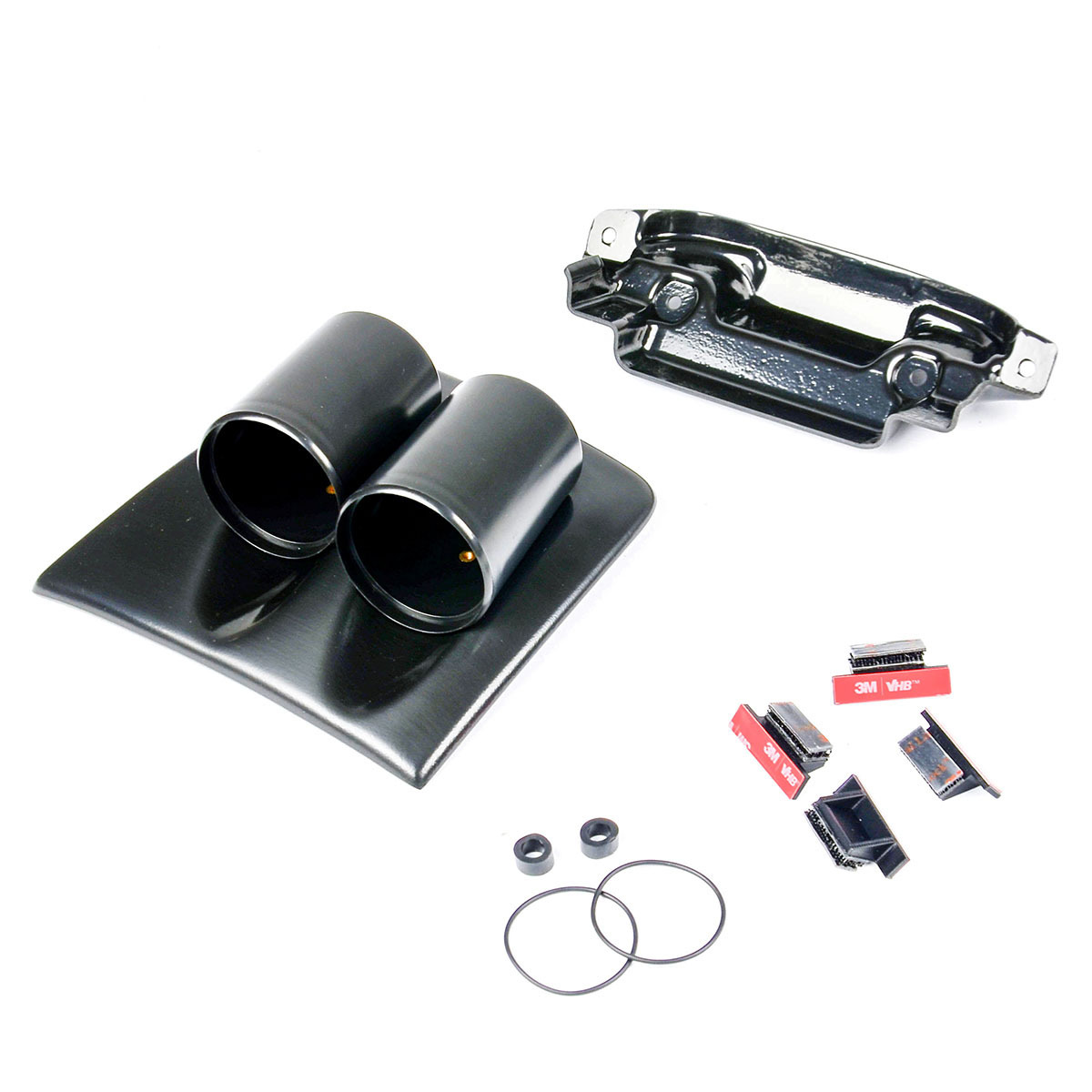

• Detachable cups for easy gauge installation
• Suits 2 x SAAS 52mm gauges
• Detailed fitting instructions included
• Gauges are sold separately.

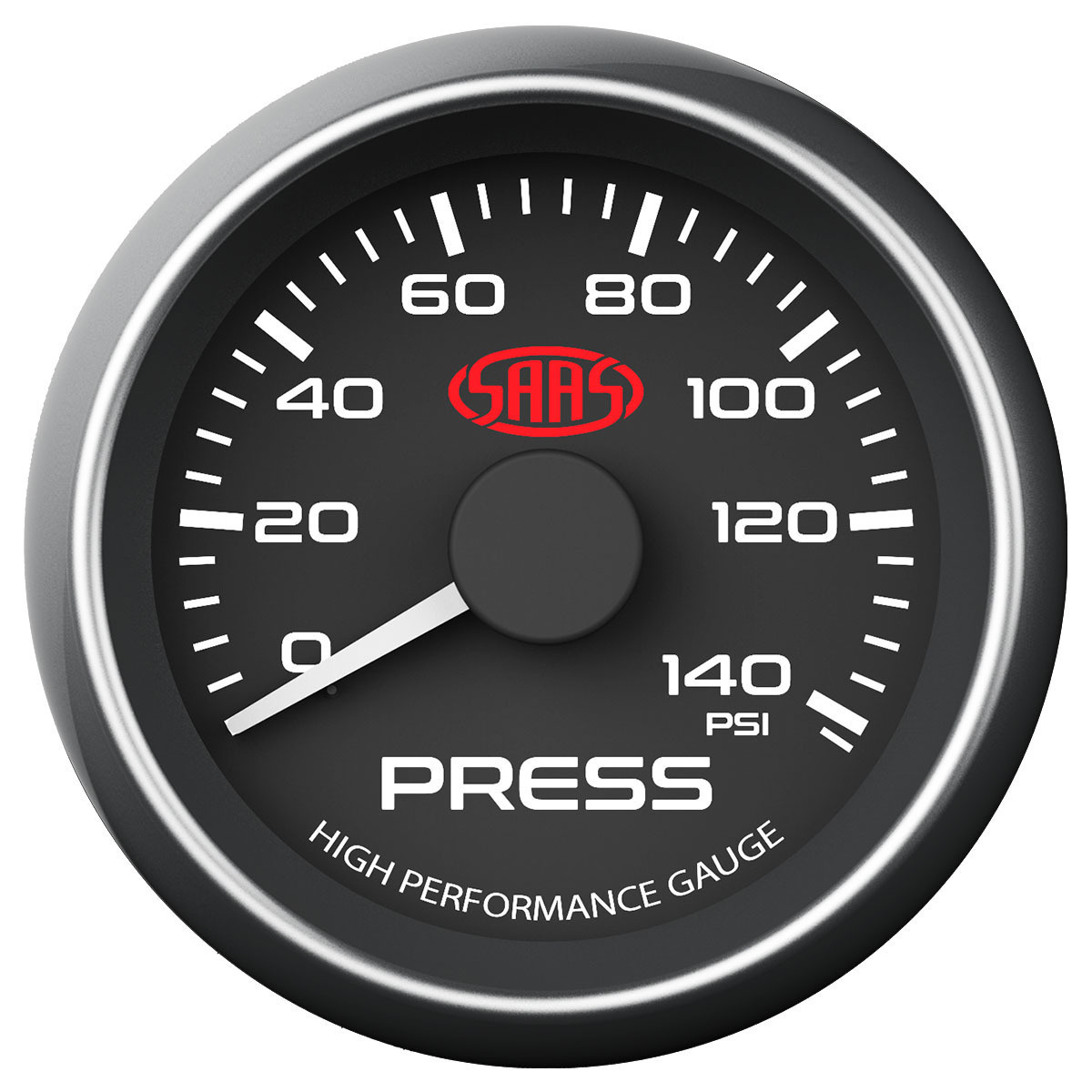

SAAS Oil Pressure Gauge 0-140psi 52mm Black Muscle Series

SGOP52B

Engine oil pressure is one your engine's most vital signs and monitoring for any variation is critical. Keep an eye on pressure movement and make a interior design statement at the same time with our Muscle series of gauges.

Features:

• 0-140 PSI Pressure Range

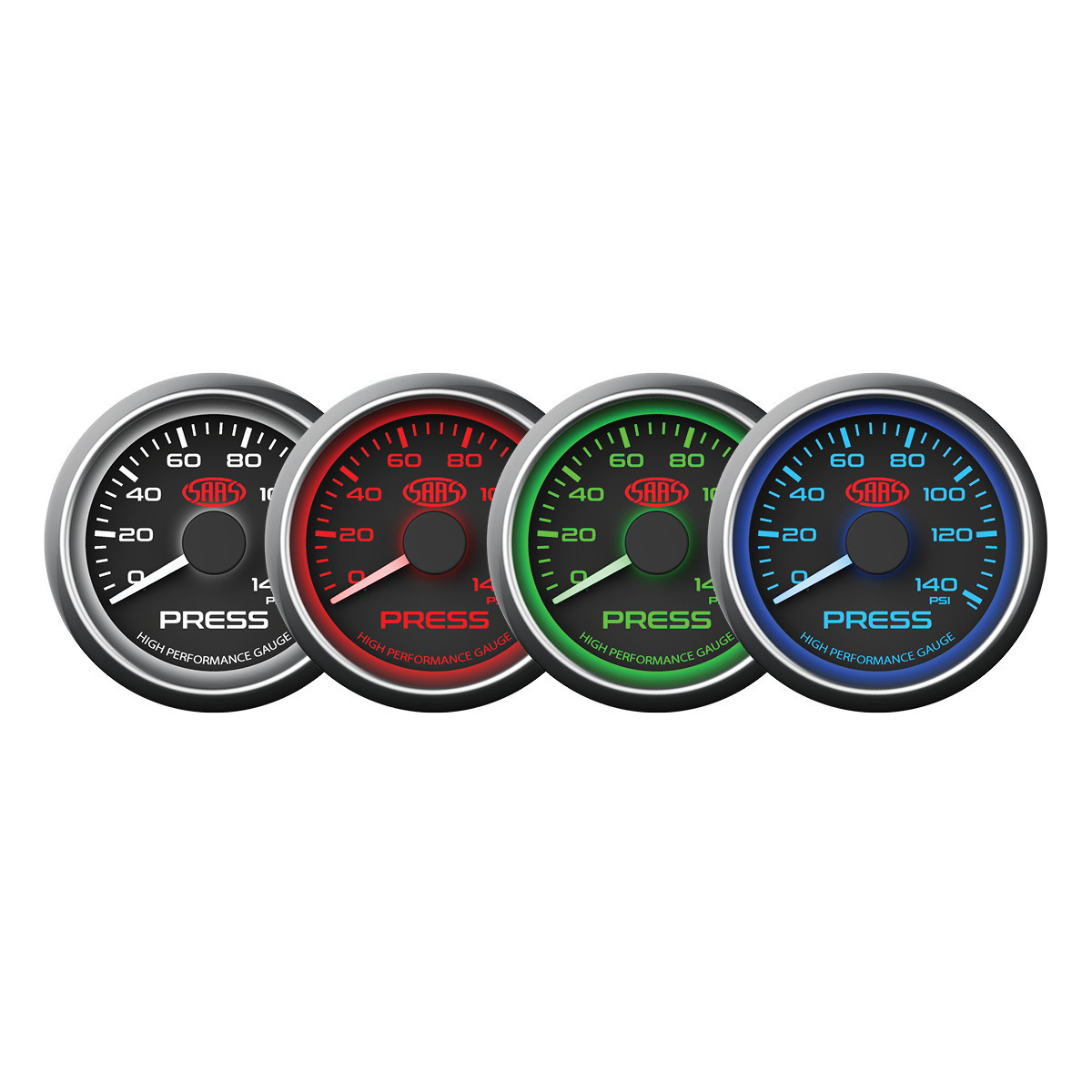

• LED lighting with 4 colour options
• Micro switch for backlight changes
• Replacement spares available (see below)

Contents:

• Oil Pressure Gauge
• Oil Pressure Sender
• SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
• Wiring Loom
• Mounting Bracket and fittings

Notes:

The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories.

Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.

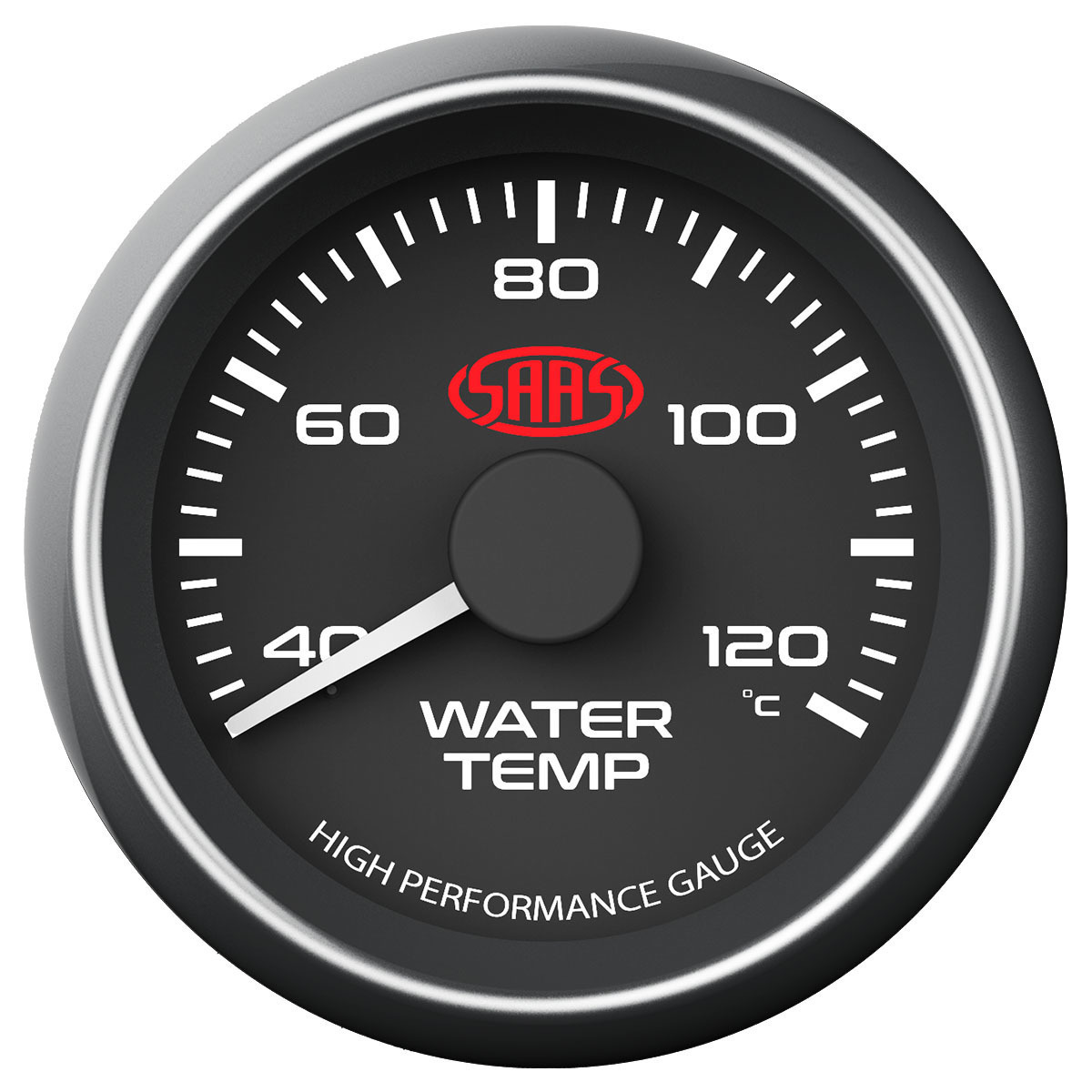

SAAS Water Temperature Gauge 40°-120° 52mm Black Muscle Series

SGWT52B

Keep an eye on your vehicle's water temperature and be on the alert for possible overheating or other potential engine issues.

Features:

• 40°-120° Temperature Range

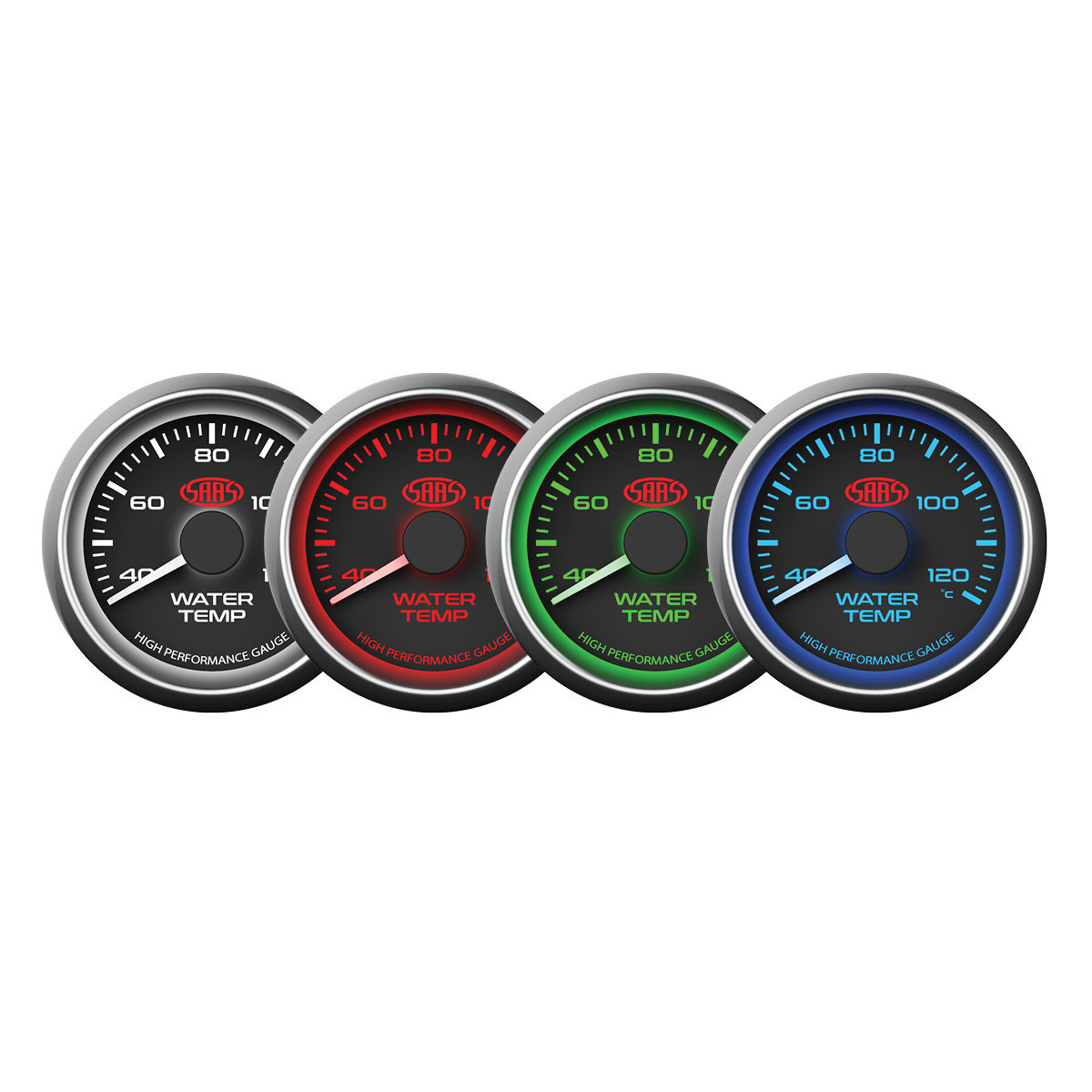

• LED lighting with 4 colour options
• Micro switch for backlight changes
• Replacement spares available (see below)

Contents:

• Water Temp Gauge
• Water Temperature Sender
• SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
• Wiring Loom
• Mounting Bracket and fittings

Notes:

The sender can be mounted directly into an available water temp port (for example, inlet manifold), piggy backed off the OE sender/switch using a brass T-Adaptor or most commonly, into a top radiator hose inline t-piece. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
