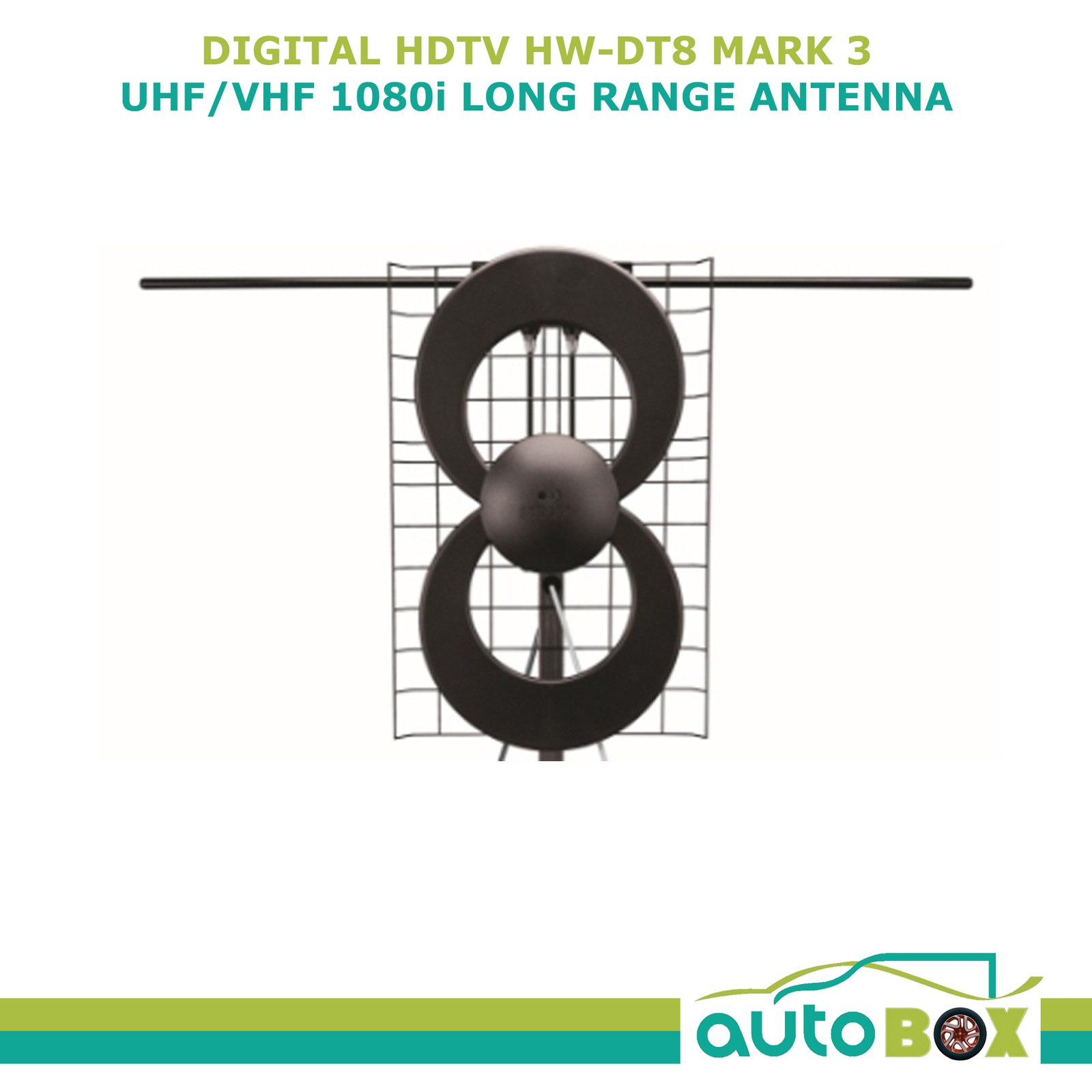

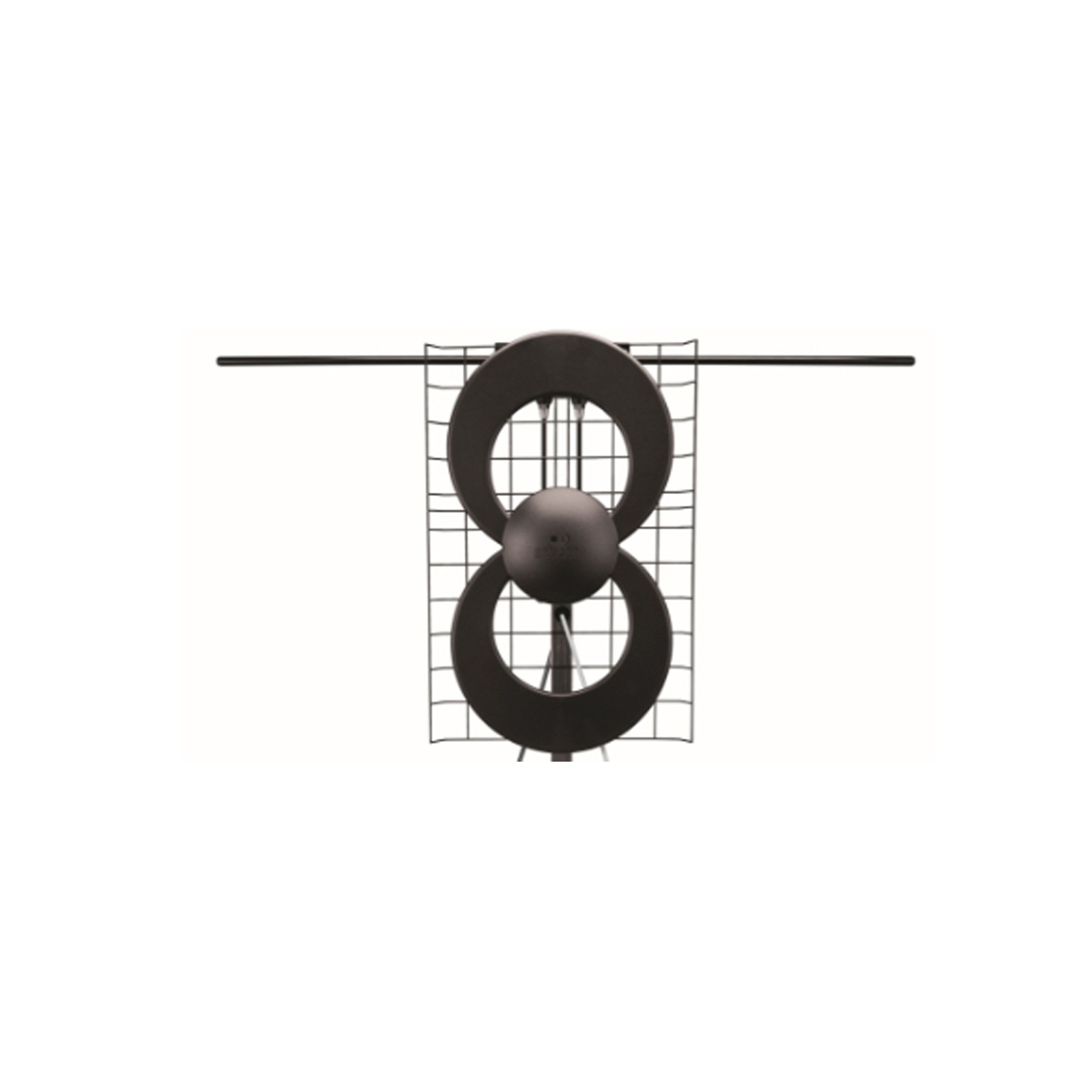

Caravan Digital HDTV HW-DT8 Antenna Mark 3 UHF/VHF 1080i Long Range Motorhome RV

Caravan Digital HDTV HW-DT8 Antenna Mark 3 UHF/VHF 1080i Long Range Motorhome RV



• 100% compatible with HD TV tuners so totally digital-ready.
• Receives very low powered DTV country stations.
• UHF/VHF antenna  (VHF about 5% of Australian locations & only in Capital city regions)
• An optional booster is available but we feel that boosting will be rarely needed as DT8 puts a very weak signal onto TV.
• The antenna has long-range capabilities so it Suits most Australian locations.
• No power needed so can be used with 240 and 12 volt RV's ( a real problem with DX2700 for 12 volts solved)
• 5-year guarantee.
• Very easy to assemble

The dual loop USA patented design send 75 OHM of the signal down the cable with virtually no signal loss or interference, probably the best on the market for digital.

Includes:

• Long-Range HDTV Antenna
• Swing Head adapter to position antenna head in a vertical or horizontal position

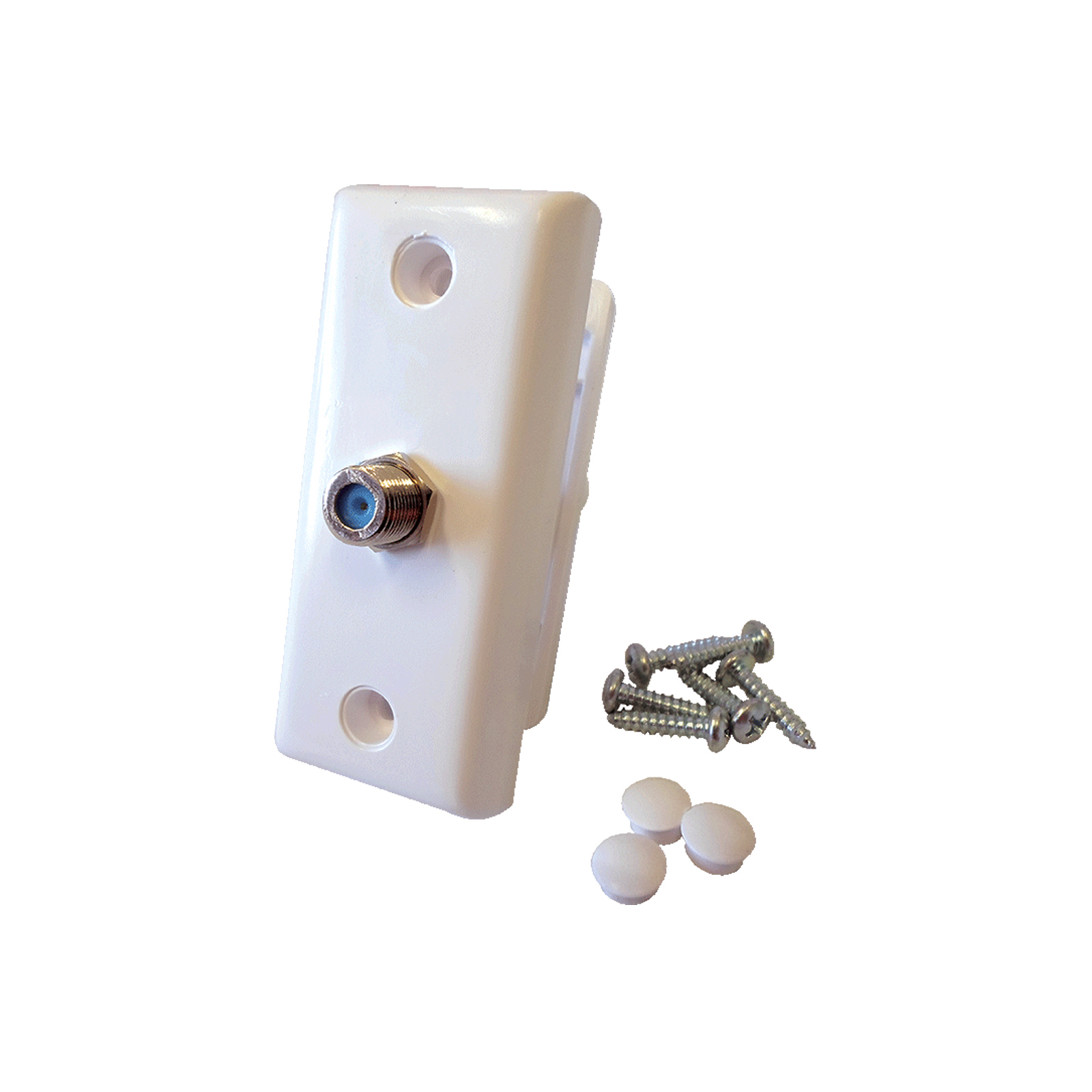

• Thru-van-wall Digital Ready TV cable connector
• External and internal digital grade coax cables
• Carry Bag for Antenna

1. Enjoy full 1080i HDTV with this high-performance antenna. It now features an integrated diplexer which means it can combine UHF and VHF signals. The Tapered Loop Technology provides the Antenna with a generous beamwidth of 70 degrees. It is now much easier to set up and the cables cannot be fitted the wrong way.
2. Made from UPVC plastic, the antenna receives low powered DTV stations, as well as HD digital horizontal and vertical signals. It comes with a digital Thru-Van-Wall kit, all cabling (which are RG6 compression with non-corrosive lugs) and a zippered carry bag.
3. Happy Wanderer offers a 5-year warranty on the Antenna.

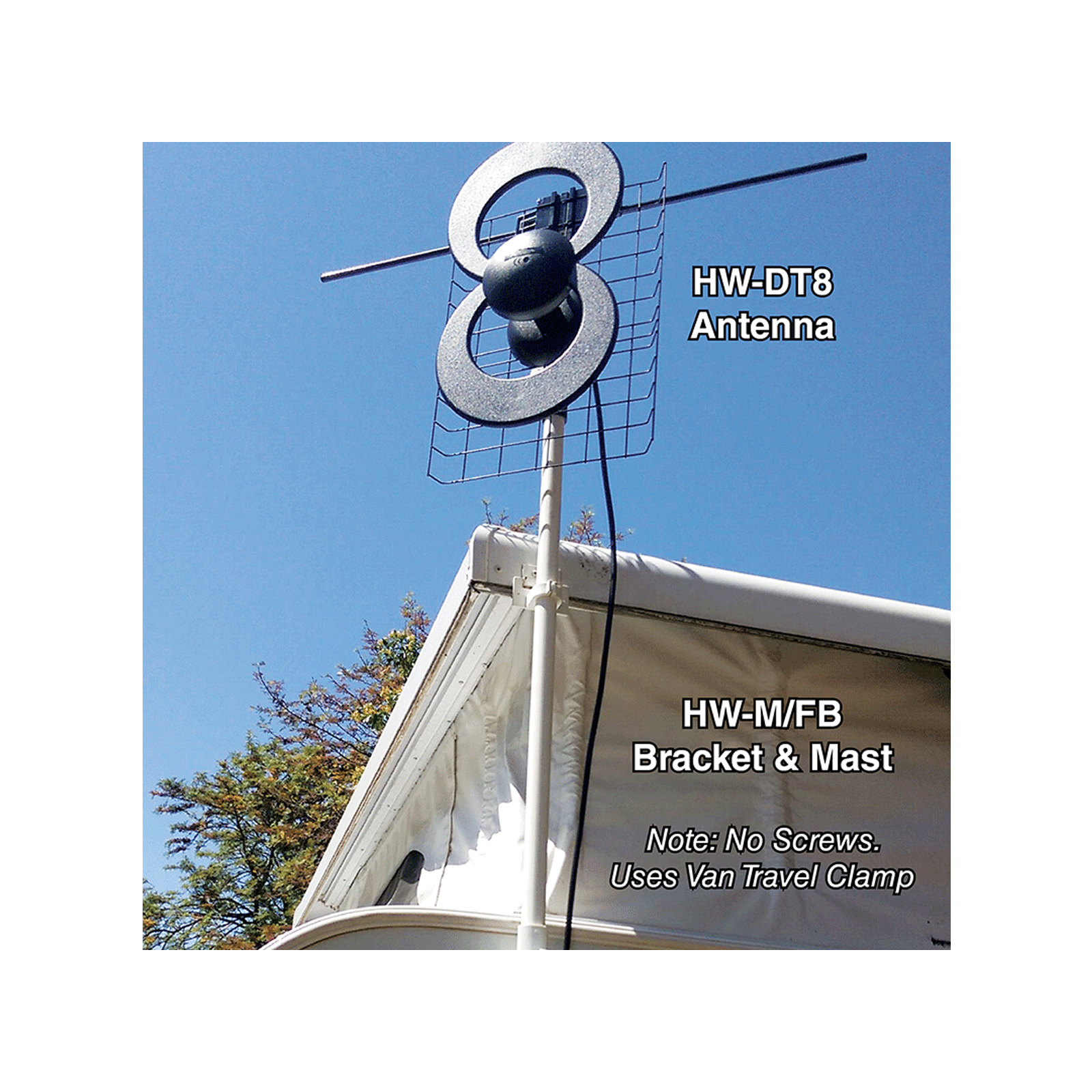

Note:  Brackets and masts are sold separately. You will need to retune your RV TV to suit each locations' reception.

Specifications:

• VHF MHz: channel 6-12
• UHF MHz: channel 28 69
• Max Gain: 10.4dBi (UHF), 3.1dBi (VHF)
• Dimensions (mm): 500H x 295W x 165D (with antenna rods not extended)
