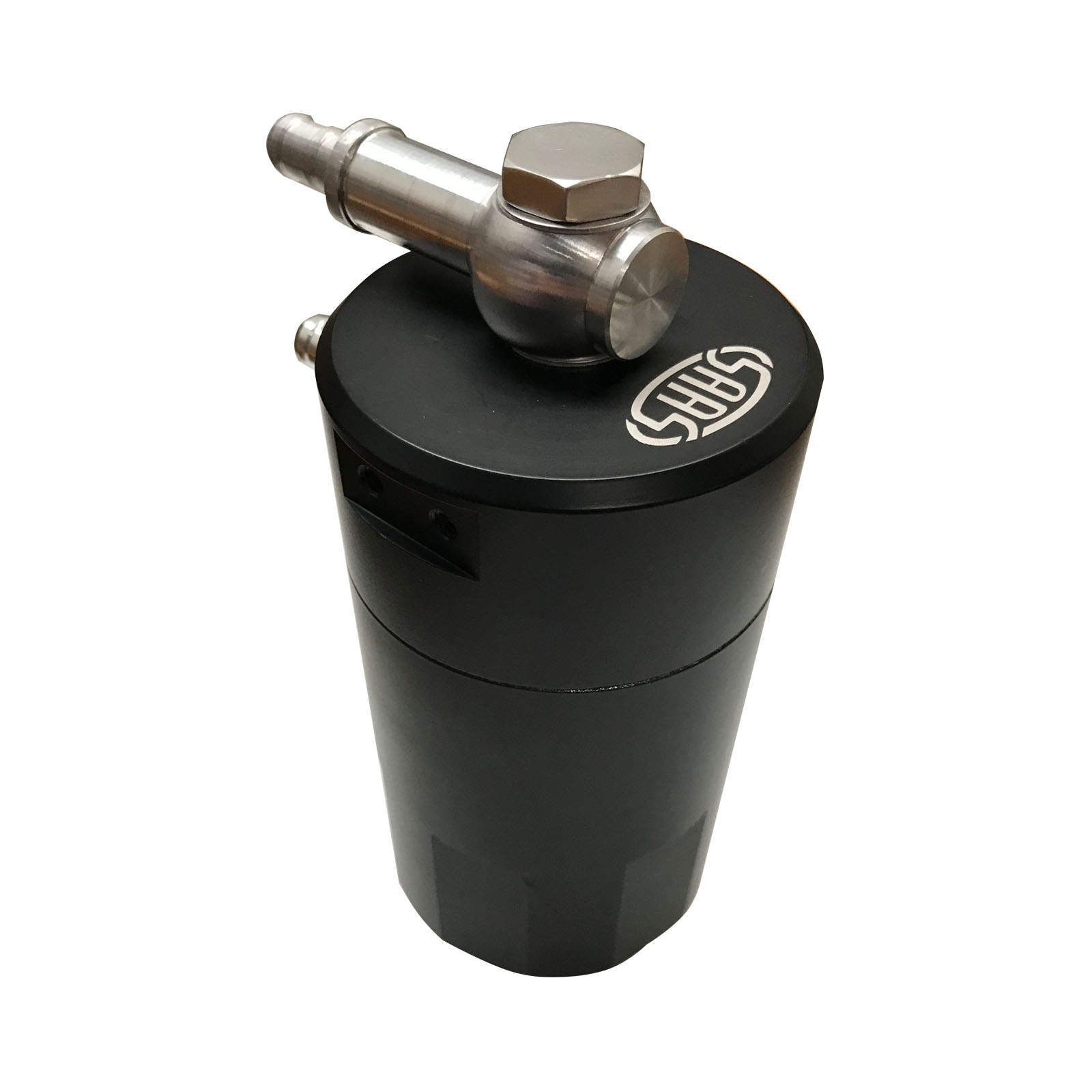

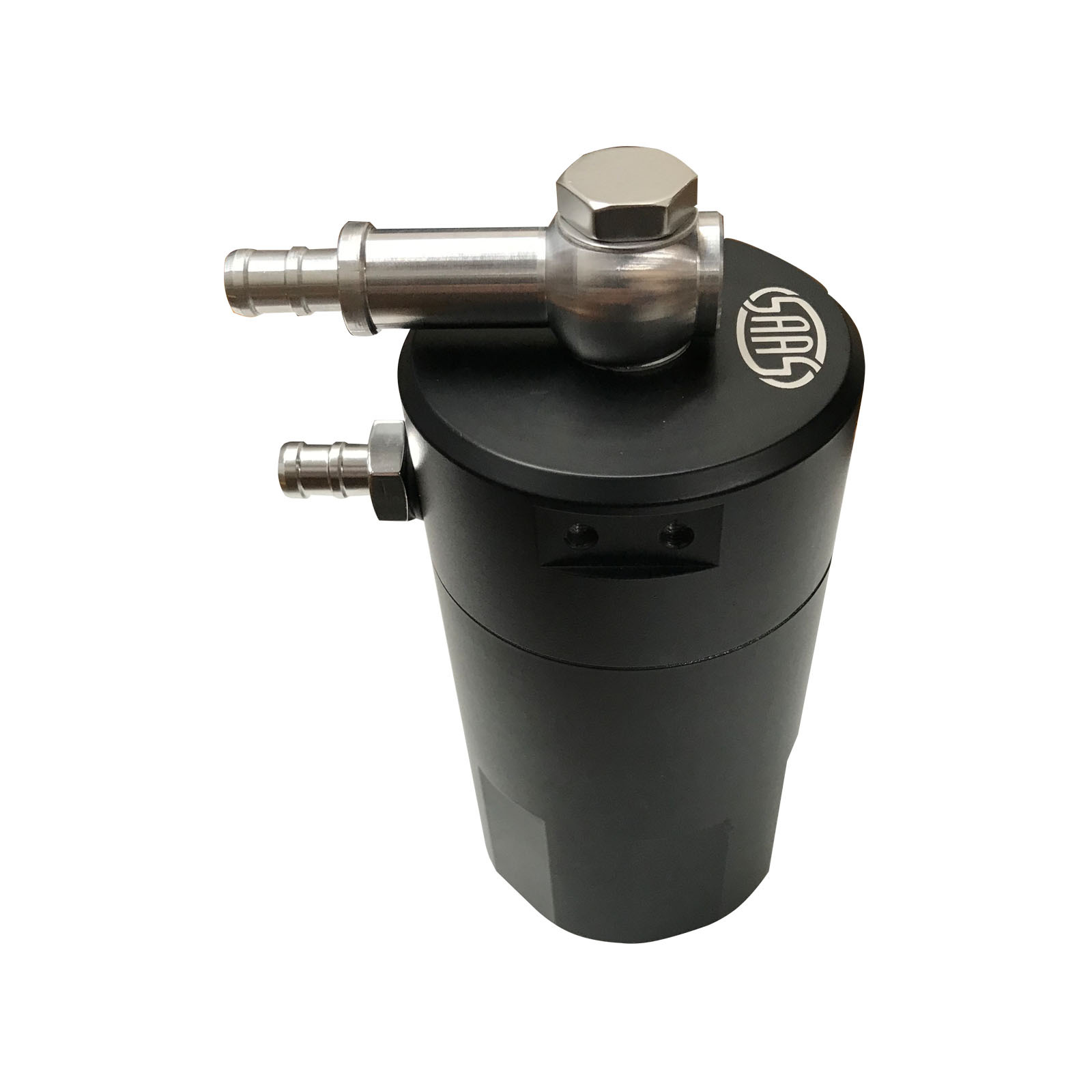

SAAS LS1 Black Baffled Oil Catch Can Tank Suits VT VX VY VZ LS Engines 500ml

SAAS Oil Catch Tank LS1 Baffled Black Anodised Billet

Aluminium 500ml

The most advanced oil catch tank in the SAAS range.

Suits VT VX VY VZ LS 5.7 and 6.0 Engines (1999-2006)



• Machined billet T6061 aluminium
• Internal baffles
• Internal 40-micron bronze filter which blocks oil from depositing into the intake system (spares available)
• 360o top swivel banjo fitting allows the pipe exit direction to be adjusted in the position of the pipe without the risk of damaging or bending the pipe to fit
• Direct fit mounting bracket
• Push in lock fittings free from hose clamps
• Bottom drain plug

The most advanced oil catch tank in the SAAS range. The new oil catch tank through the internal baffles keeps the collected oil from splashing around under all conditions of driving whether it would be road driving to any forms of motorsports this tank will ensure all the oil sinks to the bottom of the tank leaving nothing but clean air to pass through the 40-micron bronze filter to the intake.

Dimensions:

• Height: 180mm
• Diameter: 80mm
• Inlet / Outlet Hose Fitting size: 10mm
• Capacity: 500ml

Note: After installation, it is recommended to check your baffled catch tank every 1000km until you can establish how much oil is accumulating in the tank. It is important that the build-up of oil does not rise above the internal baffle through to the bronze filter.
