SAAS Silicone 2 Piece Hose Intercooler Pipe and Clamp Kit for Ranger/BT50 3.2L 2011-2020

SAAS Silicone 2 Piece Hose Intercooler Pipe and Clamp Kit

for Ford Ranger/BT50 3.2L 2011-2020

SSH2104-KIT

Silicone 2 Piece Hose Intercooler Pipe and Clamp Kit Ranger/BT50 3.2L

SUITS:

• 3.2L
• Ford Ranger PXI, PXII, PXIII 2011 - 2020
• Mazda BT50 B22, B32 2011 - 2020

Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps

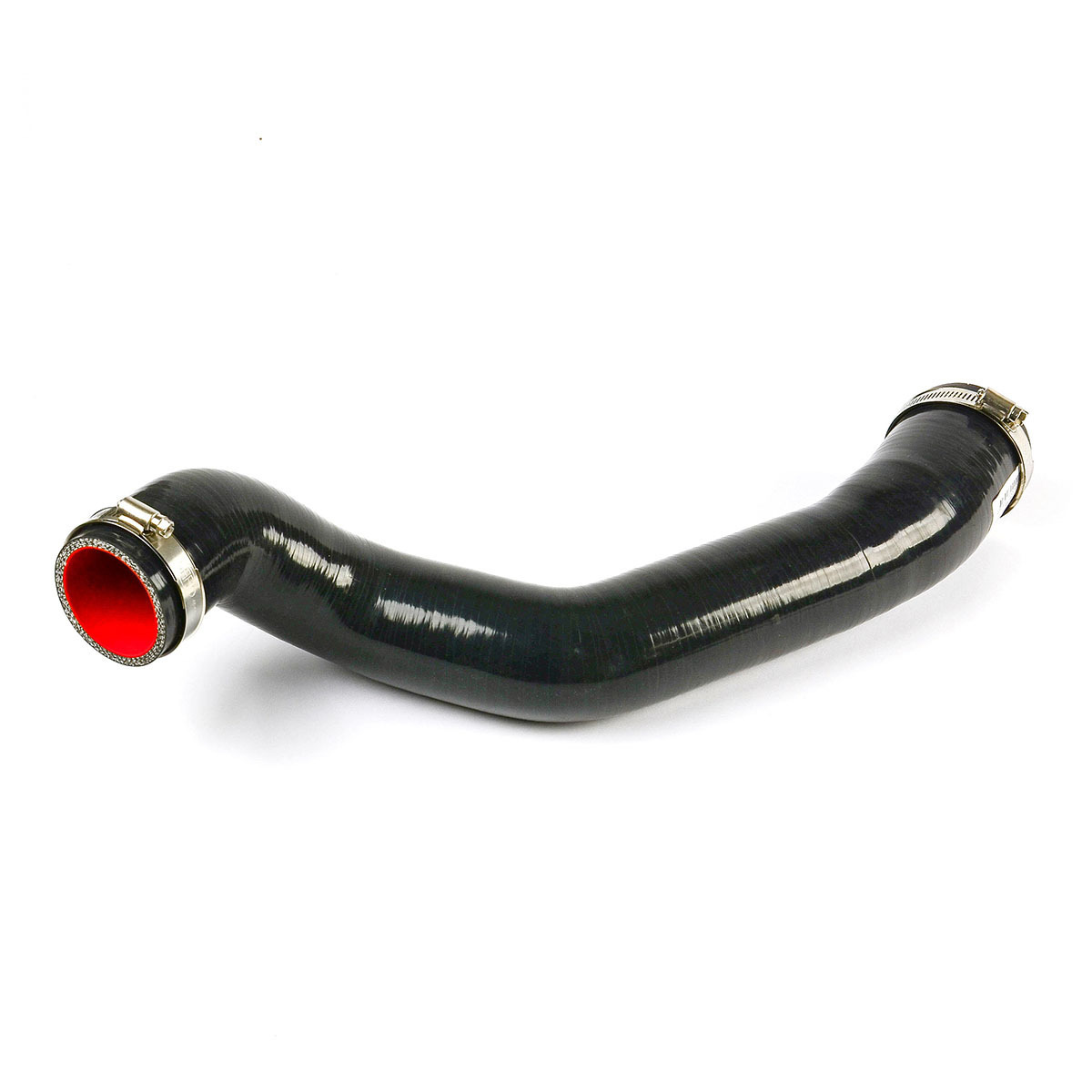

The SAAS SSH2104-KIT is designed to replace the factory hot side 2-piece hose assembly with a single hose. This makes the factory plastic pipe joiner obsolete, shortens the pipe routing and reduces a possible point of failure.

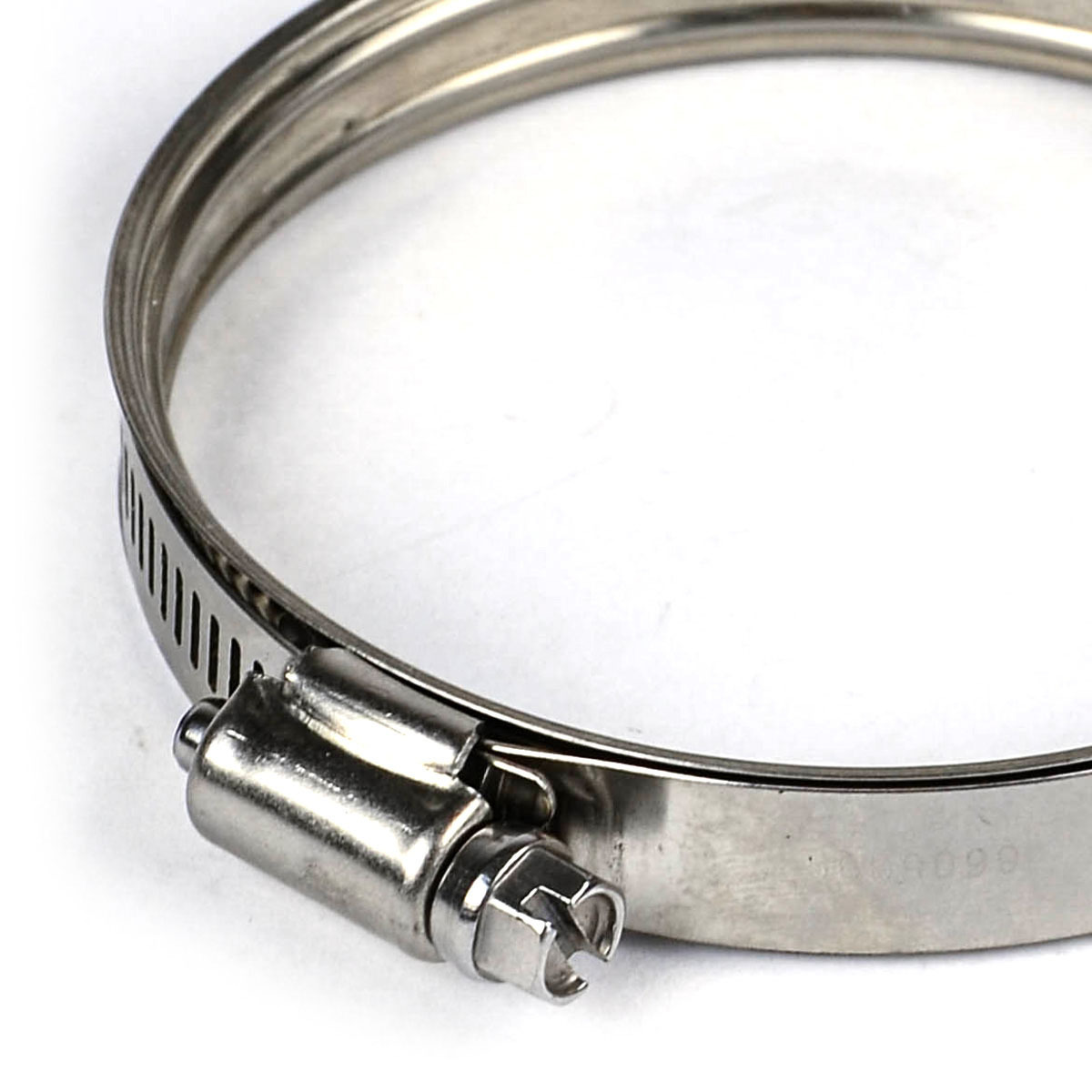

The kit also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don’t be caught out with a split rubber hose roadside – upgrade to SAAS Silicone hoses today.

FEATURES:

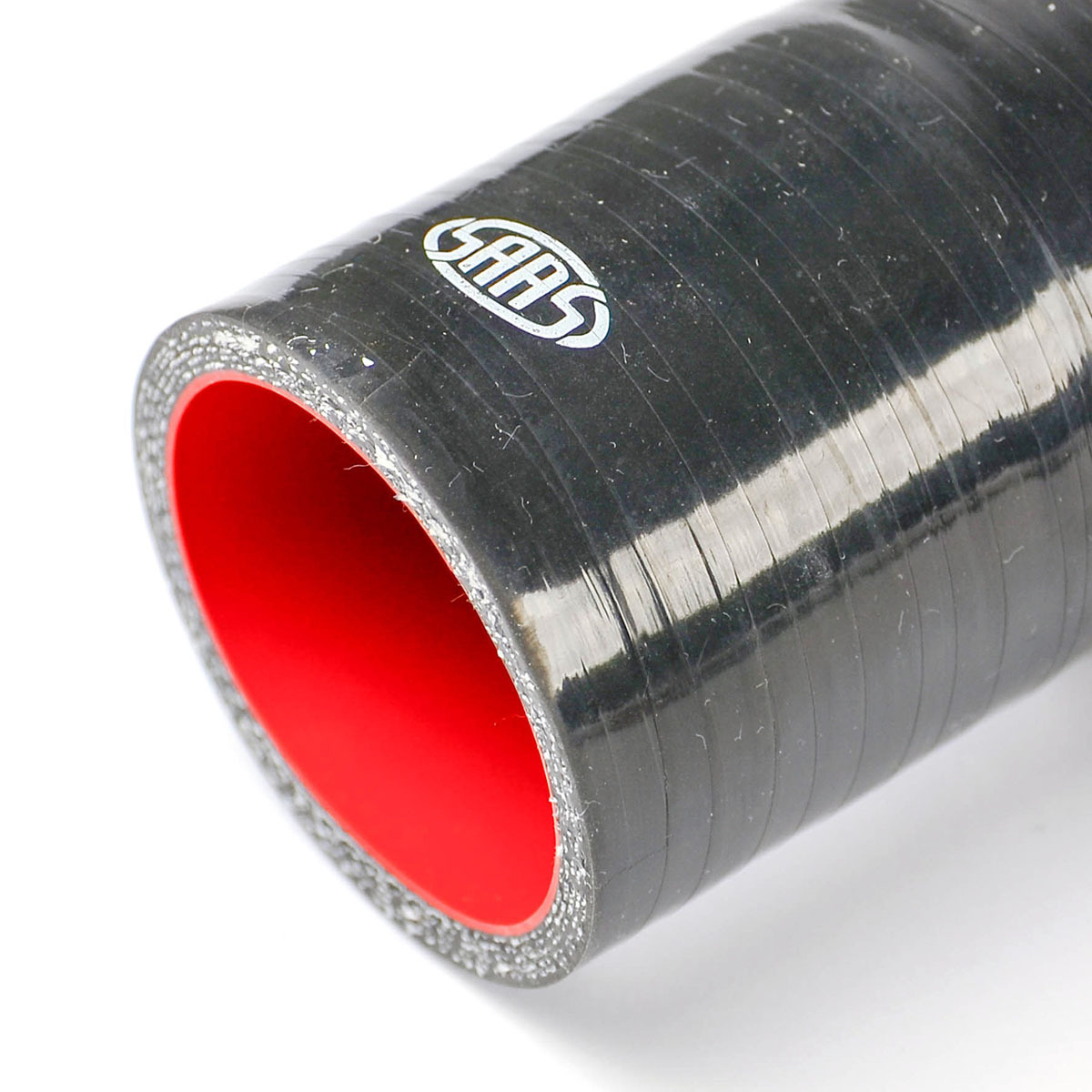

• Smooth Form 5 Ply polyester reinforced silicone
• 6mm wall thickness
• Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products (see note)
• Stable operating temp from -50°C to +200°C
• 4:1 burst pressures at safe working loads

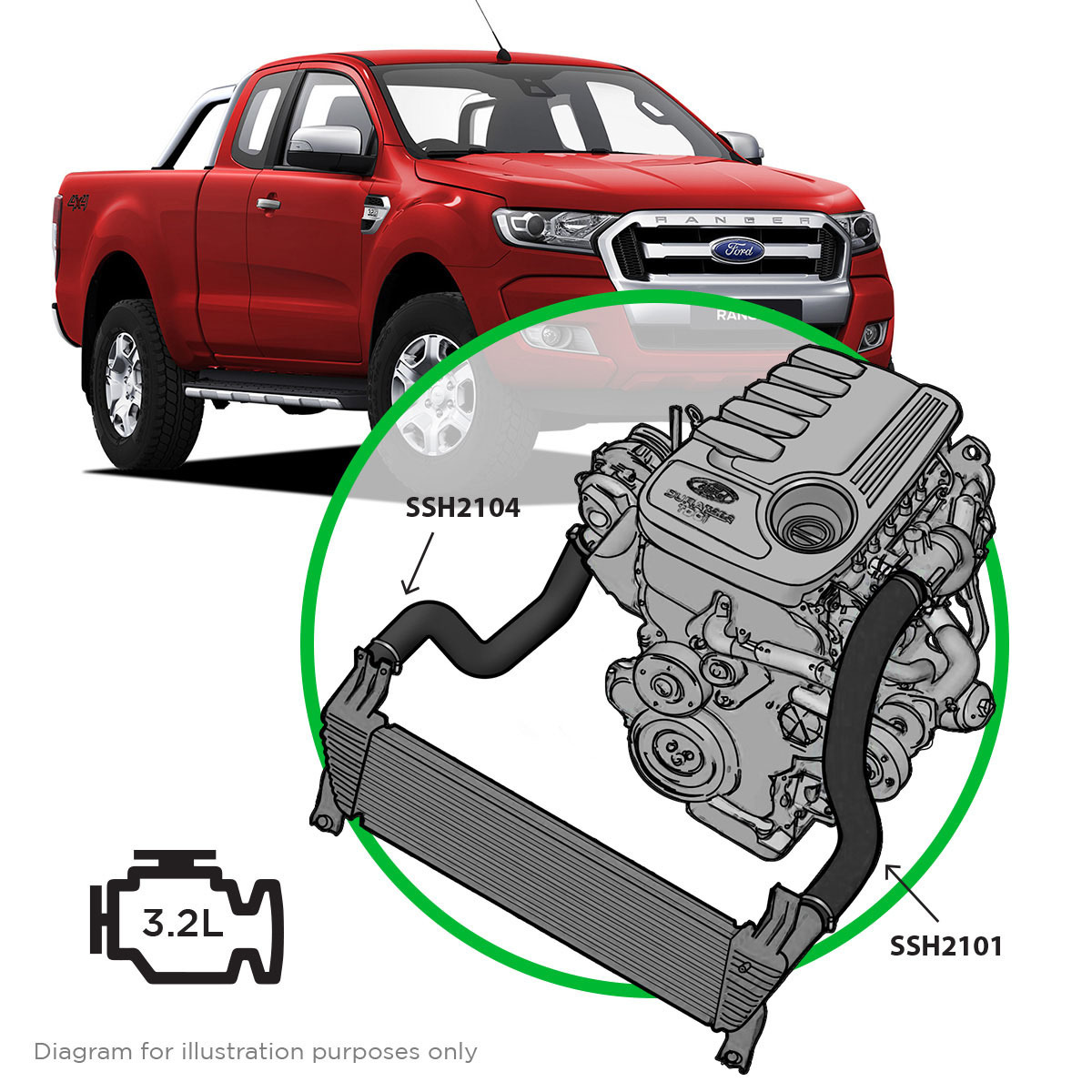

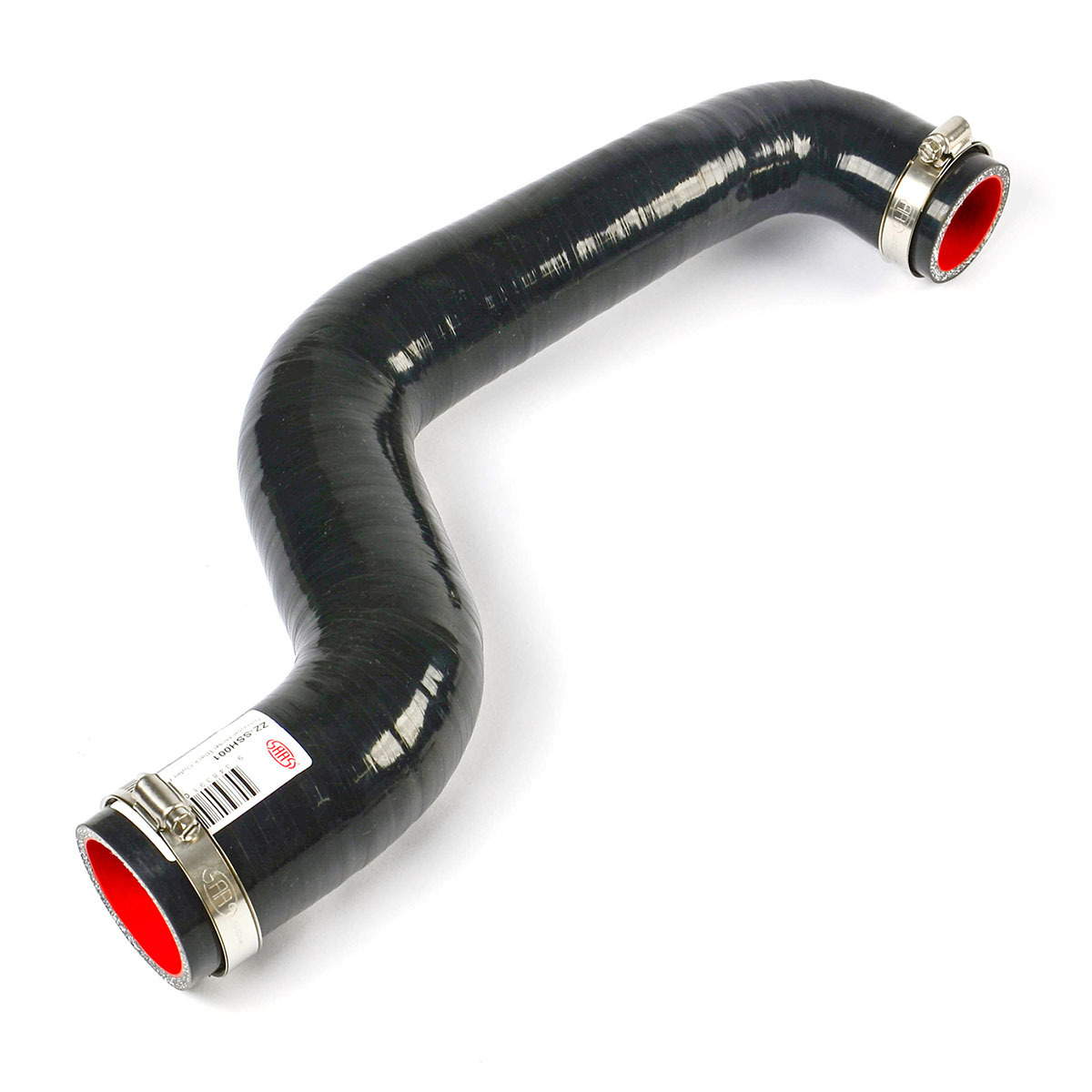

• SSH2101 – Cold Pipe
• SSH2104 – 1 Piece Hot side
• 4 x Stainless Dual Bead Hose Clamps included
• Designed to be used with Factory intercooler

FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry
